StarTech.com Gigabit Ethernet over Coaxial Unmanaged Network…
StarTech.com Gigabit Ethernet over Coaxial Unmanaged Network Extender Kit - 2.4km, Network receiver, 2400 m, 112 Mbit/s, 57000 h, 10/100/1000Base-T(X), IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Click or hover over image to enlarge
Part #: 2350801
AC input voltage
110-240 V
Power consumption (typical)
4 W
External power adapter
Yes
Output voltage
12 V
Output current
1 A
Product colour
Black
Cabling technology
10/100/1000Base-T(X)
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Comsys Price
Save $53.35 off RRP
Only 3 left in stock
Order soon to avoid backorder
Four payments of $198.66 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
StarTech.com Gigabit Ethernet over Coax Extender

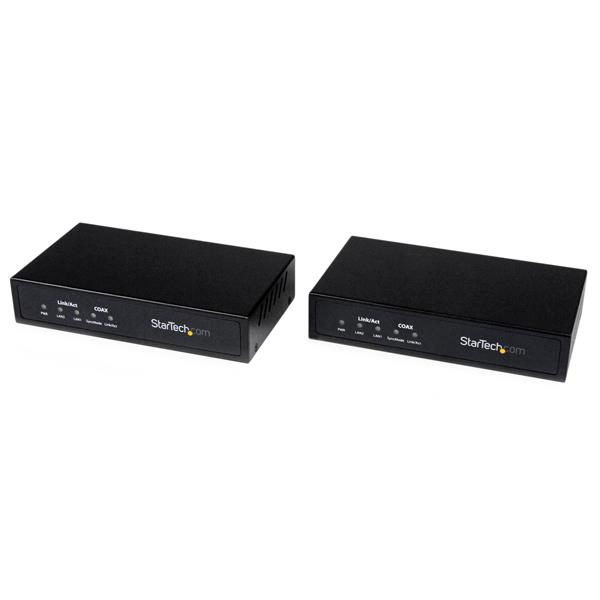

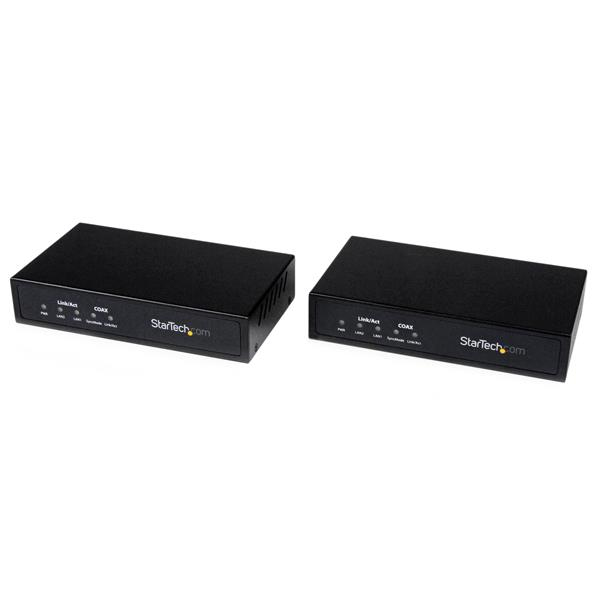

The EOC1110K Gigabit Ethernet over Coaxial Unmanaged LAN Extender Kit (2.4km) includes both end points, and allows you to span a 10/100/1000Mbps Ethernet network over extremely long distances (up to 2.4 km/1.5 mi) while still maintaining high-speed network connectivity.
The coax Ethernet extender allows you to run the connection over existing coaxial cable, with little to no modification required, making it a perfect solution for a broad range of applications, including connecting isolated user stations from the same or separate building, or overcoming infrastructure obstacles and distances (e.g. older stone/concrete architecture) where new wiring or wireless connectivity may be impossible.
The gigabit Ethernet over coax kit helps to eliminate expense by allowing CCD or CATV video and Ethernet network data to share the same coaxial cable without interference.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Allows network connectivity in remote buildings made of stone/concrete, or heritage buildings where new Ethernet cabling or wireless is impossible
- Integrates seamlessly with existing coaxial infrastructure, without causing interference to the CCD / CATV signals
- Simple plug and play installation for quick setup in your environment
Key features
- Type: Network receiver
- Maximum transfer distance: 2400 m
- Data transfer rate: 112 Mbit/s
- Mean time between failures (MTBF): 57000 h
- Cabling technology: 10/100/1000Base-T(X)
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- Ethernet LAN (RJ-45) ports: 2
- Product colour: Black
- AC input voltage: 110-240 V
- Power consumption (typical): 4 W
- External power adapter: Yes
- Output voltage: 12 V
- Output current: 1 A
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Width: 138 mm
- Depth: 94 mm
- Height: 28 mm
- Weight: 300 g
- Package width: 238 mm
- Package depth: 195 mm
- Package height: 164 mm
- Package weight: 1.57 kg
- Harmonized System (HS) code: 85176990
Inc GST
$794.64
