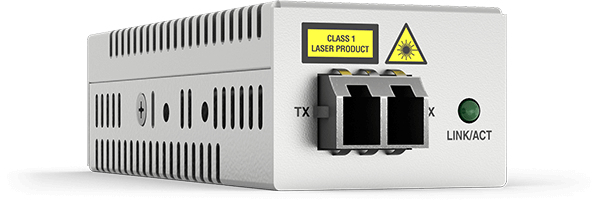

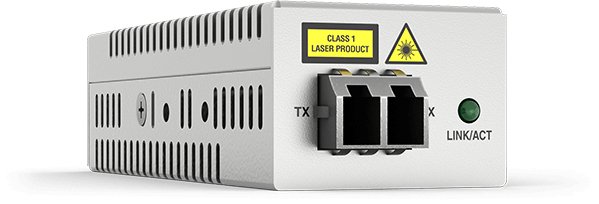

ALLIED TELESIS DESKTOP MINI MC 1000TX TO1000SX
Desktop Mini MC 1000TX to1000SX LC Connector EU Power Adapter
- Brand: ALLIED TELESIS
- Category: Network Accessories
- SKU: 4282882
- MPN: AT-DMC1000/LC-90
Allied Telesis AT-DMC1000/LC-90 network media converter 1000 Mbit/s…
Allied Telesis AT-DMC1000/LC-90, 1000 Mbit/s, 1000Base-T, 1000Base-SX, IEEE 802.1Q, Gigabit Ethernet, 10,100,1000 Mbit/s
Click or hover over image to enlarge
Input voltage
5 V
Maximum data transfer rate
1000 Mbit/s
Converter input interface
1000Base-T
Converter output interface
1000Base-SX
Networking standards
IEEE 802.1Q
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Copper ethernet cabling technology
1000BASE-T
Comsys Price
Save $248.01 off RRP
Available to Order
4 payments of $201.25Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ALLIED TELESIS DESKTOP MINI MC 1000TX TO1000SX
This desktop media converter features 1000T to 1000SX conversion with LC multi-mode fiber connector supporting a distances from 220m to 550m. At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, this media converter can easily fit into the palm of a hand.
Key features
- Maximum data transfer rate: 1000 Mbit/s
- Converter input interface: 1000Base-T
- Converter output interface: 1000Base-SX
- Networking standards: IEEE 802.1Q
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Copper ethernet cabling technology: 1000BASE-T
- Fiber ethernet cabling technology: 1000BASE-SX
- VLAN support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- Duplex system: Full, Half
- Maximum transfer distance: 550 m
- Wavelength: 850 nm
- Fiber mode structure: Multi-mode
- Tx power (min): -9.5 dBmW
- Tx power (max): -4 dBmW
- Rx power (min): -17 dBmW
- Internal: No
- Reset button: Yes
- LED indicators: Yes
- Product colour: Grey
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 2
- Fiber optic connector: LC
- DC-in jack: Yes
- Input voltage: 5 V
- Width: 31.8 mm
- Depth: 91.4 mm
+ 10 more — see the Specifications tab.
