Allied Telesis AT-DMC100/LC-90 network media converter 100 Mbit/s…

Allied Telesis AT-DMC100/LC-90, 100 Mbit/s, 100Base-TX, 100Base-FX, IEEE 802.1Q, 100BASE-FX, 100 Mbit/s

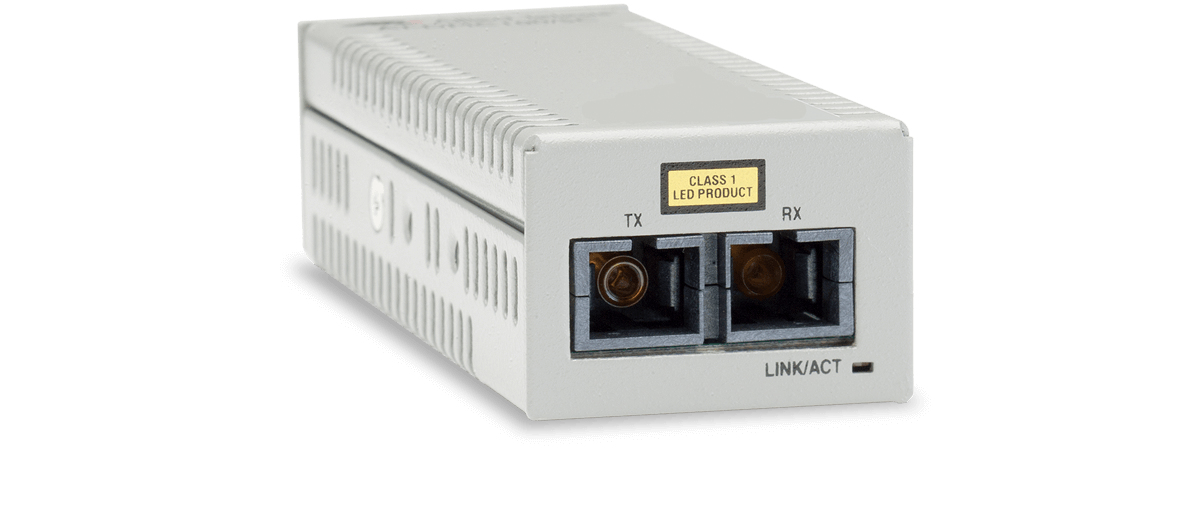

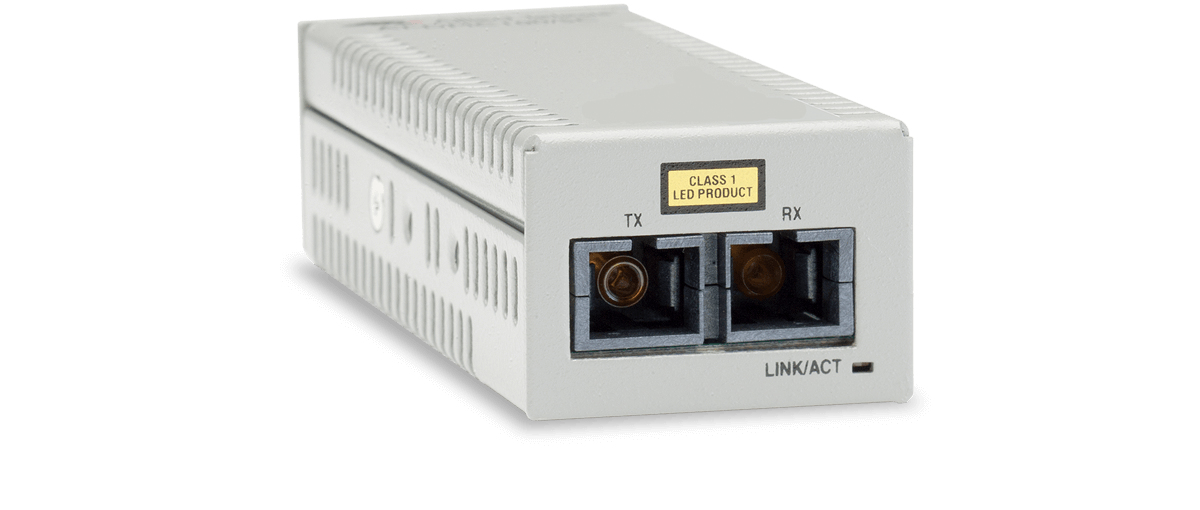

ALLIED TELESIS DESKTOP MINI MC 100TX

Click or hover over image to enlarge

Brand:ALLIED TELESIS
MPN:4282879

Part #: 4282879

Maximum data transfer rate

100 Mbit/s

Converter input interface

100Base-TX

Converter output interface

100Base-FX

Networking standards

IEEE 802.1Q

Fiber ethernet cabling technology

100BASE-FX

Data transfer rate

100 Mbit/s

Auto MDI/MDI-X

Yes

Auto-negotiation

Yes

Returns & Warranty

Comsys Price

$505.99

Save $114.01 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $126.50 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ALLIED TELESIS DESKTOP MINI MC 100TX

Overview

At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, Allied Telesis DMC Series media converters can easily fit into the palm of a hand. In addition to being compact—with a small carbon footprint—the DMC Series can also be powered with the included Micro USB to USB cable, and plugged directly into a laptop or PC or may also be powered via the optional AC/DC adapter. This saves installation time and cabling as there are no further power requirements

Key features

  • Maximum data transfer rate: 100 Mbit/s
  • Converter input interface: 100Base-TX
  • Converter output interface: 100Base-FX
  • Networking standards: IEEE 802.1Q
  • Fiber ethernet cabling technology: 100BASE-FX
  • Data transfer rate: 100 Mbit/s
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Duplex system: Full, Half
  • Link Loss Carry Forward (LLCF) supported: Yes
  • Link Loss Return (LLR) supported: Yes
  • Maximum transfer distance: 2000 m
  • Wavelength: 1310 nm
  • Fiber mode structure: Multi-mode
  • Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
  • Tx power (min): -22.5 dBmW
  • Tx power (max): -14 dBmW
  • Rx power (min): -32 dBmW
  • Rx power (max): -14 dBmW
  • Internal: No
  • LED indicators: Yes
  • Product colour: Grey
  • DIN rail mounting: Yes
  • Connectivity technology: Wired
  • Ethernet LAN (RJ-45) ports: 1
  • Fiber ports quantity: 1
  • Fiber optic connector: LC
  • Width: 31.8 mm
  • Depth: 91.4 mm
  • Height: 21.6 mm

+ 6 more — see the Specifications tab.

Inc GST

$505.99
