Allied Telesis AT-DMC1000/SC-90 network media converter 1000 Mbit/s…

Allied Telesis AT-DMC1000/SC-90, 1000 Mbit/s, 1000Base-T, 1000Base-SX, IEEE 802.1Q, Gigabit Ethernet, 1000 Mbit/s

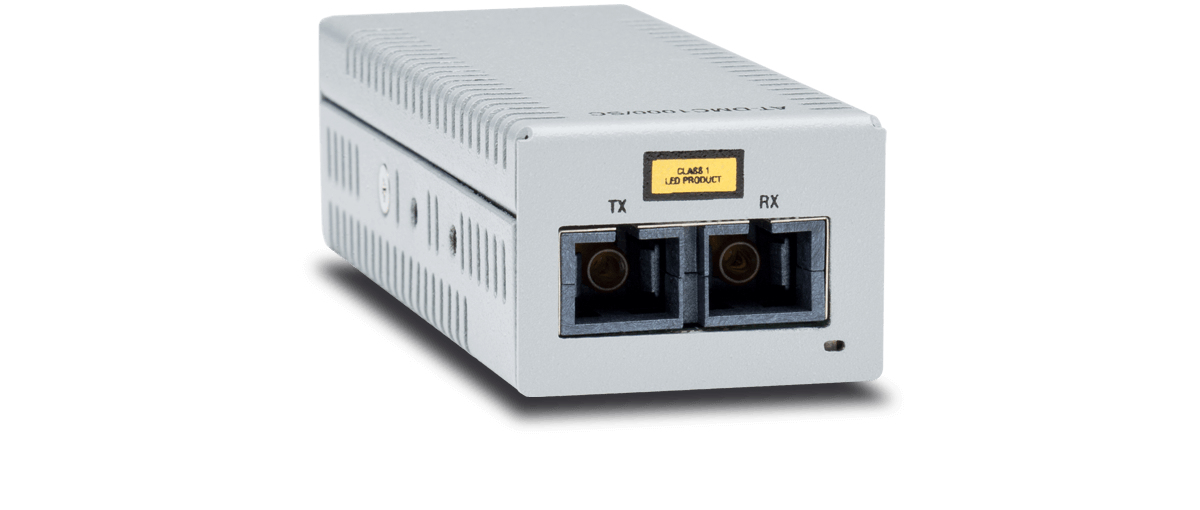

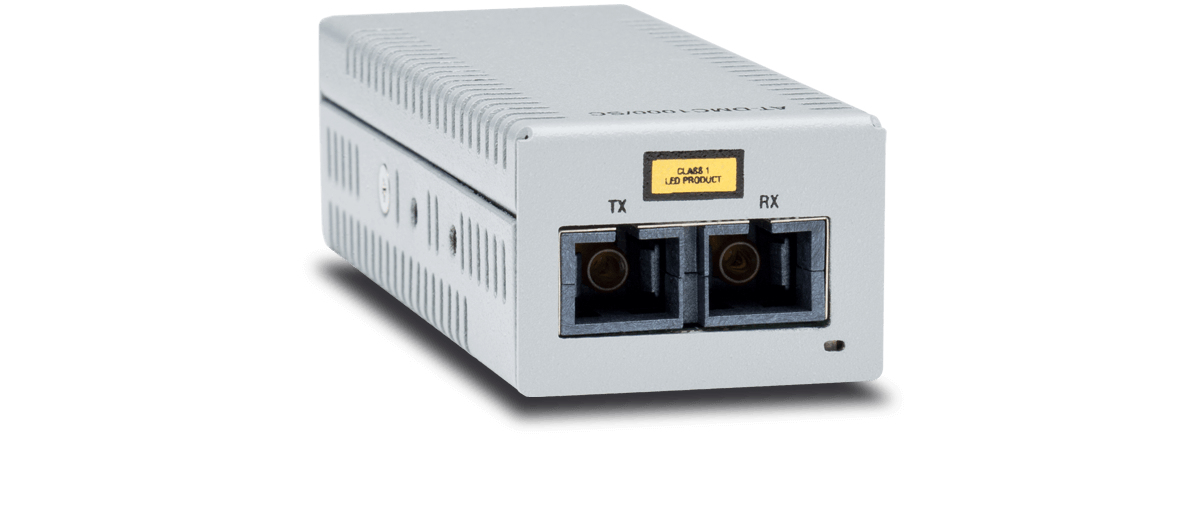

ALLIED TELESIS DESKTOP MINI MC 1000TX TO1000SX

Click or hover over image to enlarge

Brand:ALLIED TELESIS
MPN:4282883

Part #: 4282883

Power consumption (typical)

1.5 W

Maximum data transfer rate

1000 Mbit/s

Converter input interface

1000Base-T

Converter output interface

1000Base-SX

Networking standards

IEEE 802.1Q

Ethernet interface type

Gigabit Ethernet

Data transfer rate

1000 Mbit/s

Packet forwarding rate (10 Mbps)

14880 pps

Returns & Warranty

Comsys Price

$846.39

Save $189.01 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $211.60 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ALLIED TELESIS DESKTOP MINI MC 1000TX TO1000SX

Gigabit Ethernet to Fiber Desktop Media Converter with USB Power
This desktop media converter features 1000T to 1000SX conversion with SC multi-mode fiber connector supporting a distances from 220m to 550m. At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, this media converter can easily fit into the palm of a hand.

Key features

  • Maximum data transfer rate: 1000 Mbit/s
  • Converter input interface: 1000Base-T
  • Converter output interface: 1000Base-SX
  • Networking standards: IEEE 802.1Q
  • Ethernet interface type: Gigabit Ethernet
  • Data transfer rate: 1000 Mbit/s
  • Packet forwarding rate (10 Mbps): 14880 pps
  • Packet forwarding rate (100 Mbps): 148800 pps
  • Packet forwarding rate (1 Gbps): 1488000 pps
  • VLAN support: Yes
  • Auto MDI/MDI-X: Yes
  • Duplex system: Full, Half
  • Maximum transfer distance: 550 m
  • Wavelength: 850 nm
  • Fiber mode structure: Multi-mode
  • Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
  • Tx power (min): -9.5 dBmW
  • Tx power (max): -4 dBmW
  • Rx power (min): -17 dBmW
  • Internal: No
  • LED indicators: Yes
  • Product colour: Grey
  • Connectivity technology: Wired
  • Fiber optic connector: SC
  • Power consumption (typical): 1.5 W
  • Width: 31.8 mm
  • Depth: 91.4 mm
  • Height: 21.6 mm
  • Weight: 113 g
  • Operating temperature (T-T): 0 - 40 °C

+ 4 more — see the Specifications tab.
