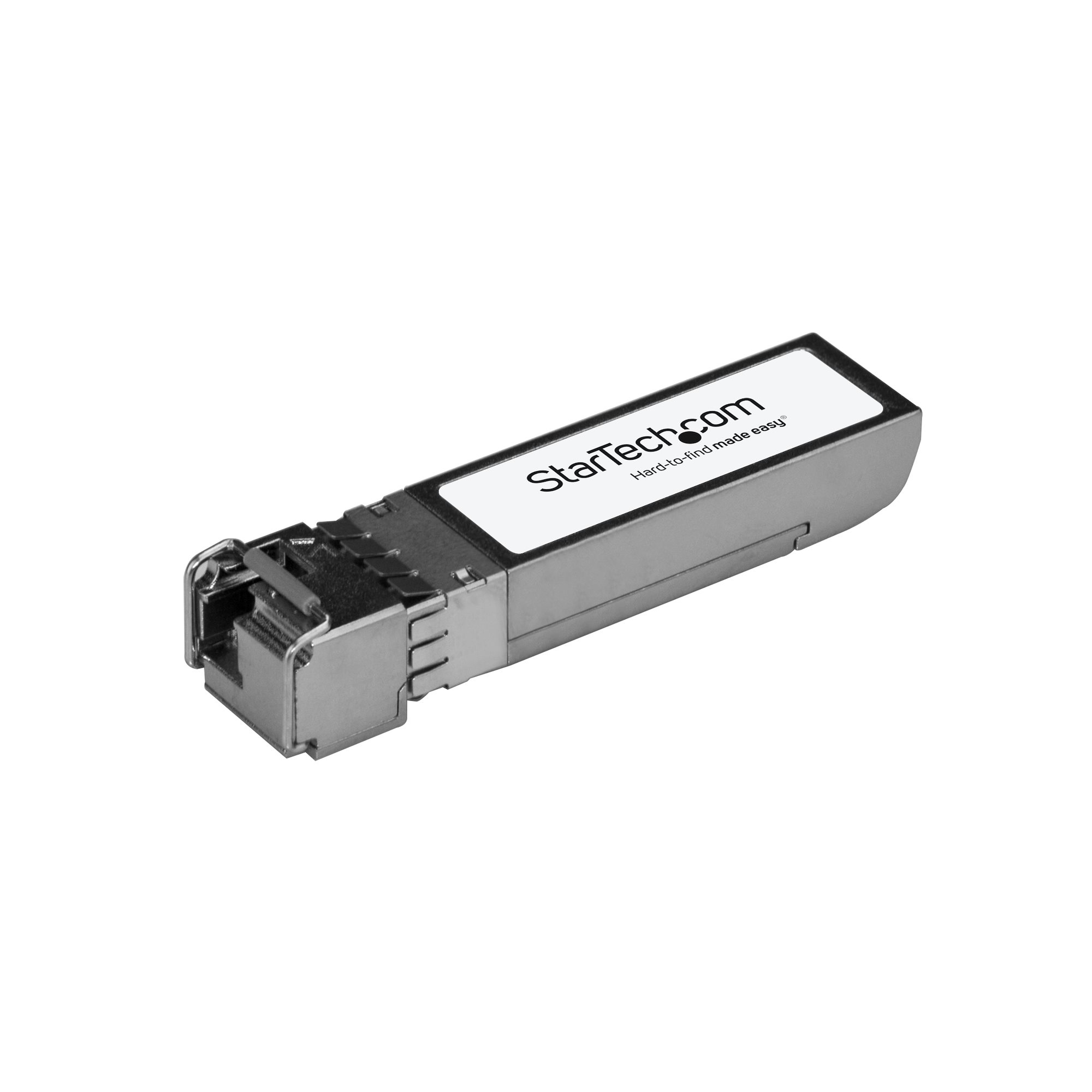

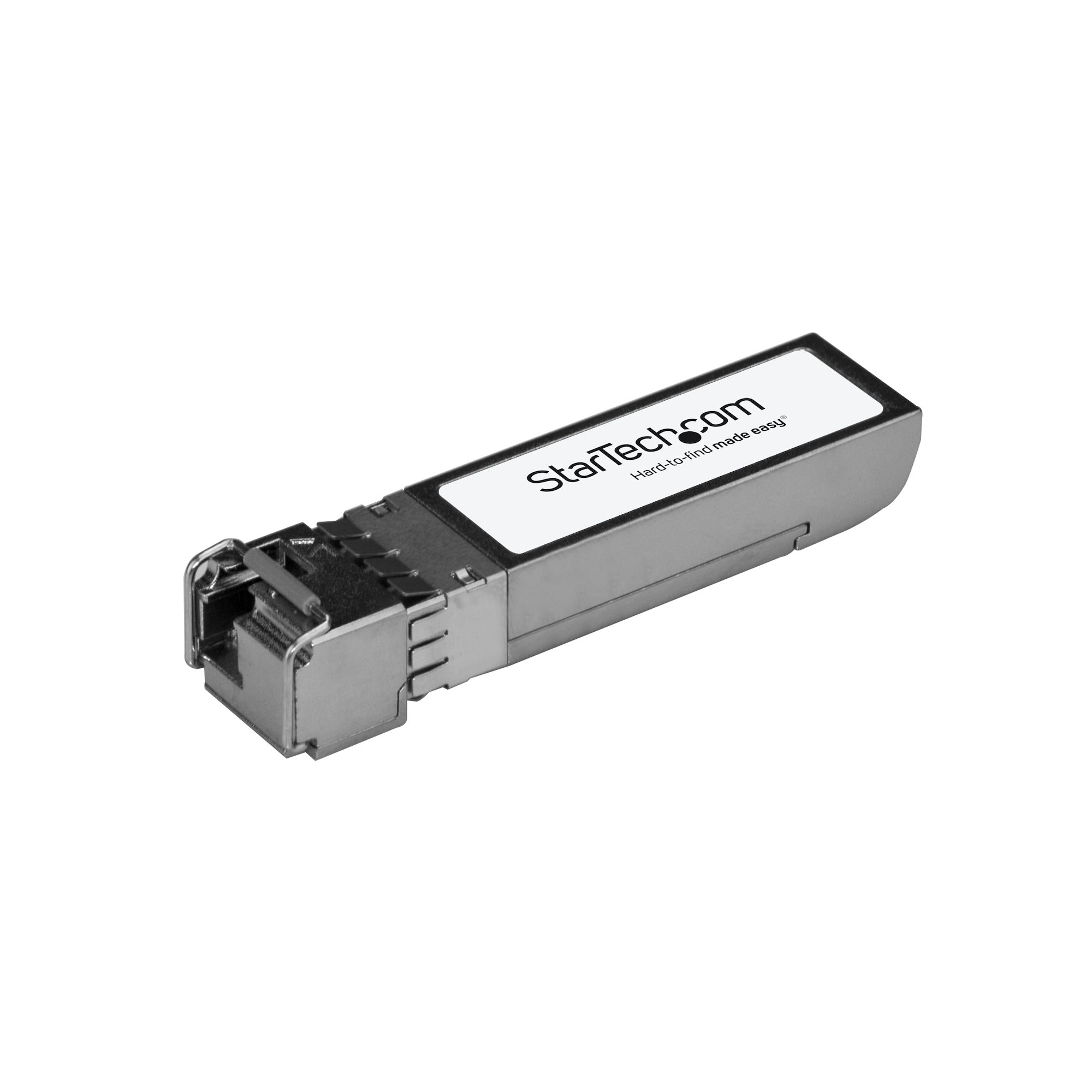

StarTech.com Cisco SFP-10G-BX-U-40 Compatible SFP+ Module - 10GBASE-BX - 10 GbE Gigabit Ethernet BiDi Fiber (SMF), Fiber optic, 10000 Mbit/s, SFP+, LC, BX-U, 40000 m
Click or hover over image to enlarge
Part #: 4634028
Power consumption (typical)
1.6 W
Product colour
Silver
Hot-swap
Yes
Brand compatibility
Cisco
Compatible products
SFP-10G-BX-U-40
SFP transceiver type
Fiber optic
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Comsys Price
Save $10.00 off RRP
Out of Stock
Contact us for ETA or alternatives
Four payments of $20.70 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
StarTech.com SFP+ Module - SFP-10G-BX-U-40 Comp - U/S
The SFP-10G-BX-U-40-ST is a Cisco SFP-10G-BX-U-40 compatible upstream fiber SFP+ transceiver which pairs with StarTech.com's SFP-10G-BX-D-40-ST. They are designed, programmed and tested to work with 10GBASE-BX compatible Cisco switches and routers. The SFP+ transceiver module supports a maximum distance of up to 40 km (24.8 mi) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1270nmTx/1330nmRx
• Maximum Data Transfer Rate: 10Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 40 km (24.8 mi)
• Power Consumption:
• DDM: Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 10000 Mbit/s
- Interface type: SFP+
- Single-mode fiber (SMF) supported: Yes
- Multi-mode fiber (MMF) supported: No
- Fiber optic connector: LC
- SFP transceiver standard: BX-U
- Maximum transfer distance: 40000 m
- Tx wavelength (max): 1270 nm
- Rx wavelength (max): 1330 nm
- Digital Diagnostics Monitoring (DDM): Yes
- Product colour: Silver
- Hot-swap: Yes
- Brand compatibility: Cisco
- Compatible products: SFP-10G-BX-U-40
- Power consumption (typical): 1.6 W
- Compliance certificates: RoHS
- Certification: CE, FCC, REACH
- Width: 58.4 mm
- Depth: 14 mm
- Height: 12.6 mm
- Weight: 24 g
- Quantity per pack: 1 pc(s)
- Package width: 90 mm
- Package depth: 115 mm
- Package height: 31 mm
- Package weight: 50 g
- Master (outer) case width: 90 mm
- Master (outer) case length: 115 mm
- Harmonized System (HS) code: 85369010
+ 2 more — see the Specifications tab.
