StarTech.com Brocade 10G-SFPP-BXU Compatible SFP+ Module - 10GBASE-BX-U - 10 GbE Gigabit Ethernet BiDi Fiber (SMF), Fiber optic, 10000 Mbit/s, SFP+, LC, BX, 20000 m
Click or hover over image to enlarge
Part #: 4636513
Power consumption (typical)
1 W
Product colour
Silver
Hot-swap
Yes
Brand compatibility
Brocade
Compatible products
10G-SFPP-BXU
SFP transceiver type
Fiber optic
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Comsys Price
Save $3.00 off RRP
Out of Stock
Contact us for ETA or alternatives
Four payments of $16.39 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
StarTech.com SFP+ Module - 10G-SFPP-BXU Comp -

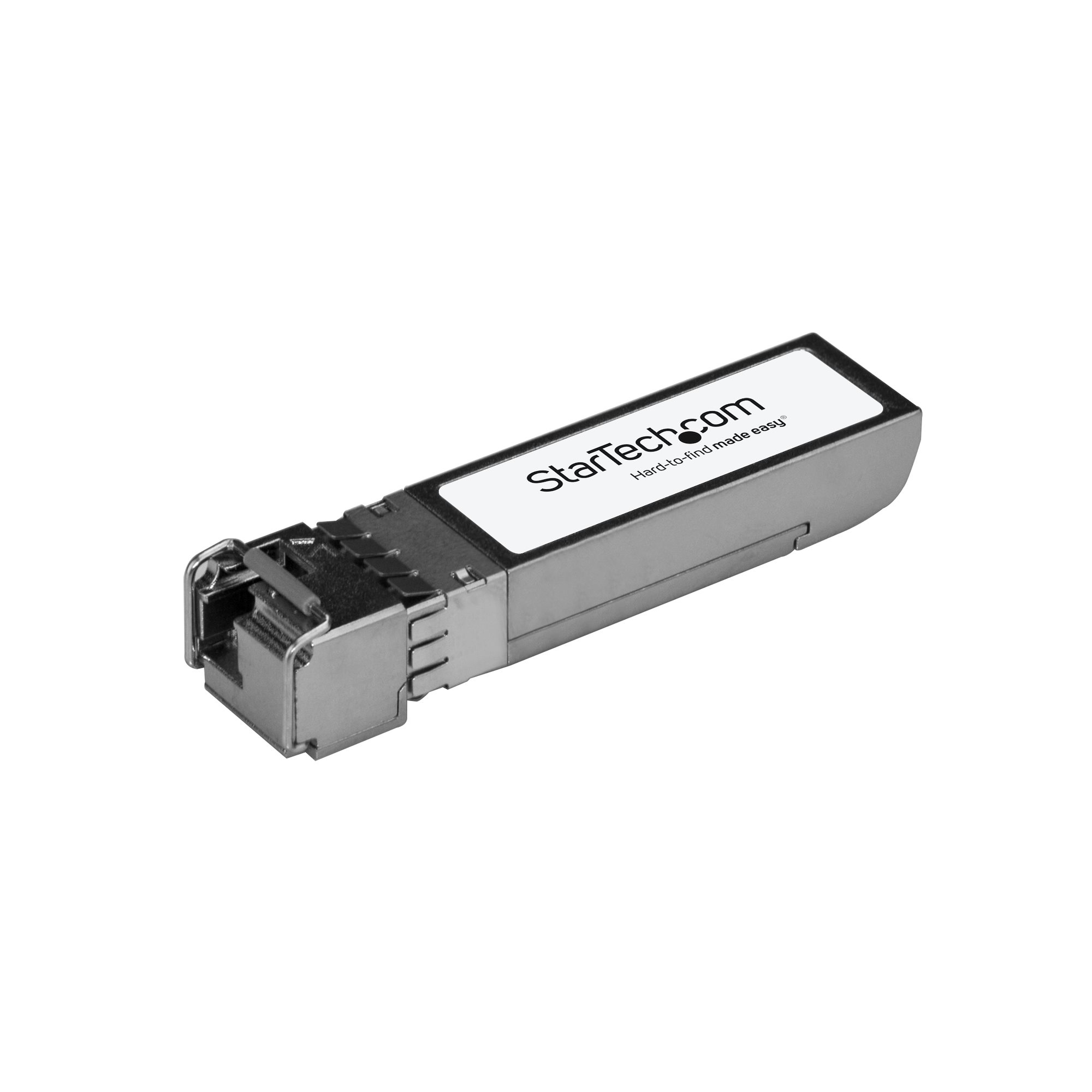

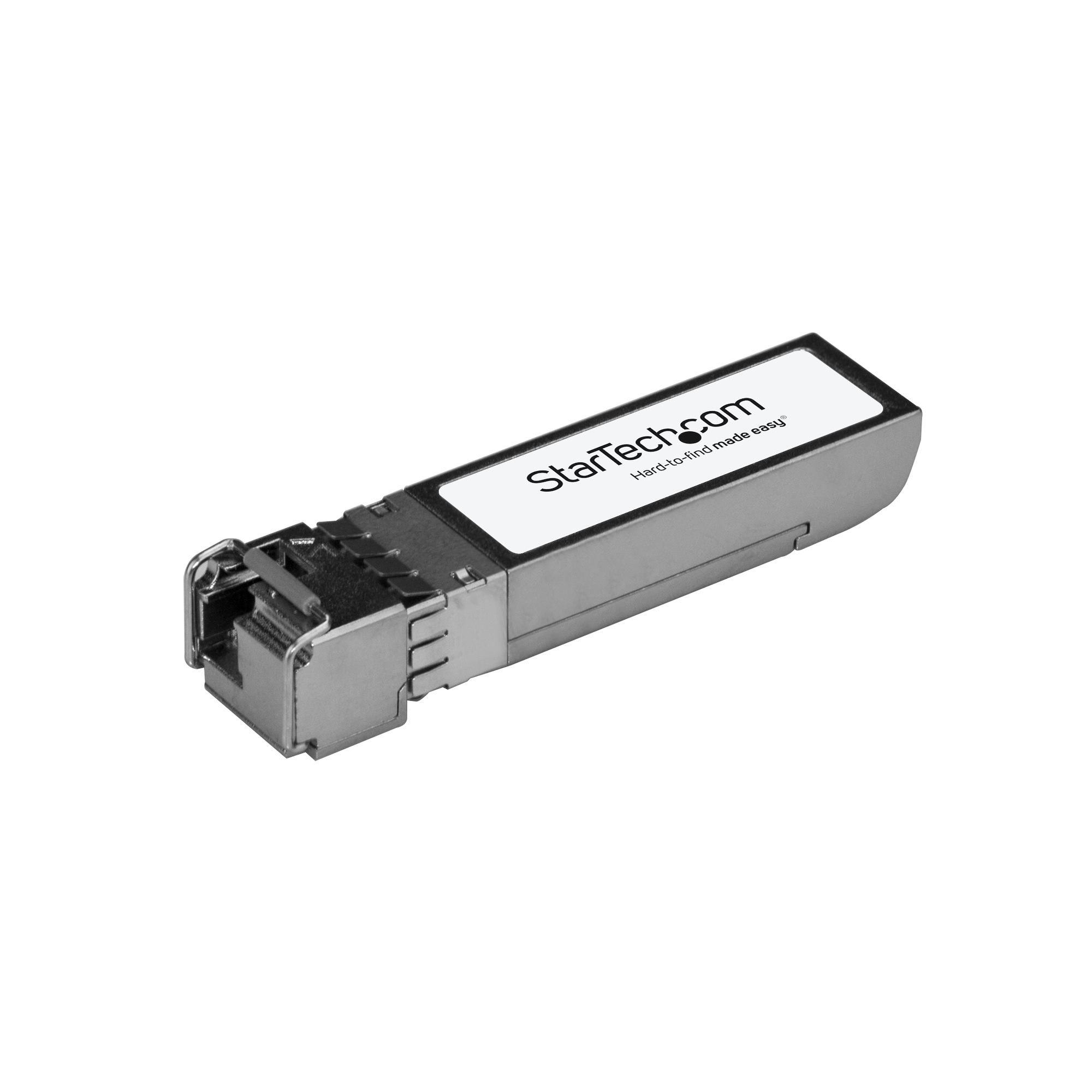

The 10G-SFPP-BXU-ST is a Brocade 10G-SFPP-BXU compatible upstream fiber SFP transceiver which pairs with StarTech.com's 10G-SFPP-BXD-ST. They are designed, programmed and tested to work with 10GBASE-BX compatible Brocade switches and routers. The SFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1270nmTx/1330nmRx
• Maximum Data Transfer Rate: 10Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption: Low power consumption
• DDM: Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 10000 Mbit/s
- Interface type: SFP+
- Single-mode fiber (SMF) supported: Yes
- Multi-mode fiber (MMF) supported: No
- Fiber optic connector: LC
- SFP transceiver standard: BX
- Maximum transfer distance: 20000 m
- Tx wavelength (max): 1270 nm
- Rx wavelength (max): 1330 nm
- Digital Diagnostics Monitoring (DDM): Yes
- Product colour: Silver
- Hot-swap: Yes
- Brand compatibility: Brocade
- Compatible products: 10G-SFPP-BXU
- Power consumption (typical): 1 W
- Certification: CE, FCC, UR
- Width: 58.4 mm
- Depth: 13.9 mm
- Height: 12.6 mm
- Weight: 24 g
- Quantity per pack: 1 pc(s)
- Package width: 90 mm
- Package depth: 115 mm
- Package height: 31 mm
- Package weight: 50 g
- Master (outer) case width: 90 mm
- Master (outer) case length: 115 mm
- Harmonized System (HS) code: 85369010
- Master (outer) case height: 31 mm
+ 1 more — see the Specifications tab.
