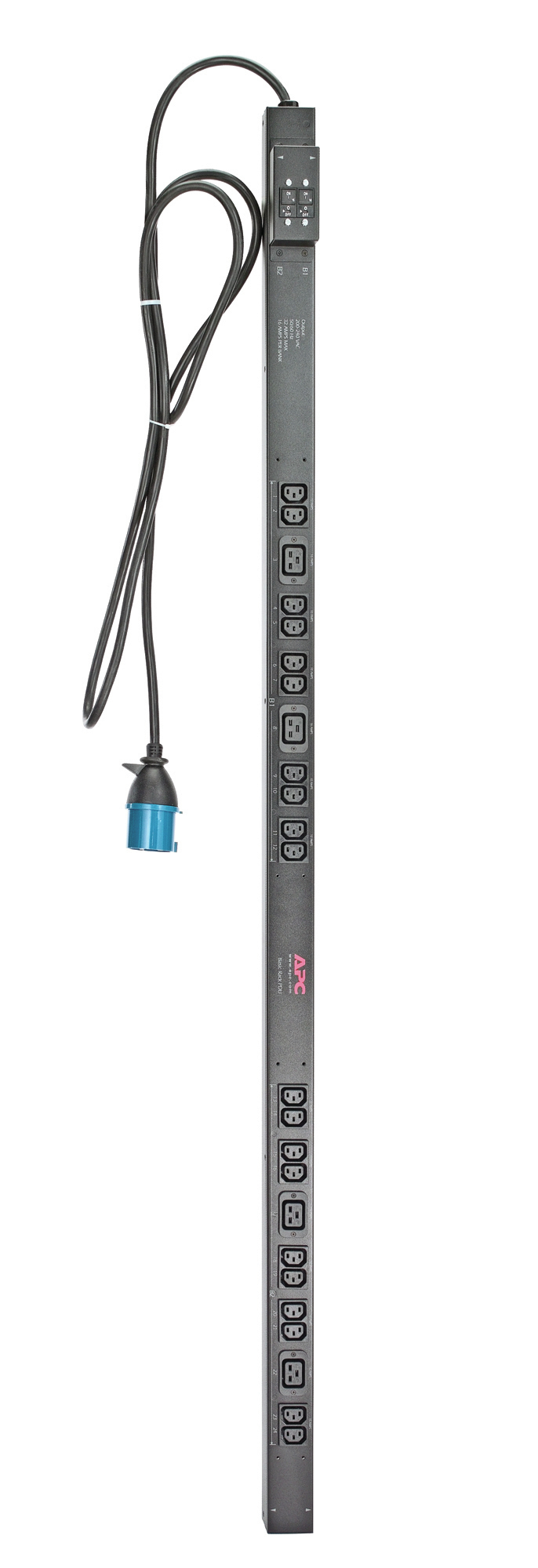

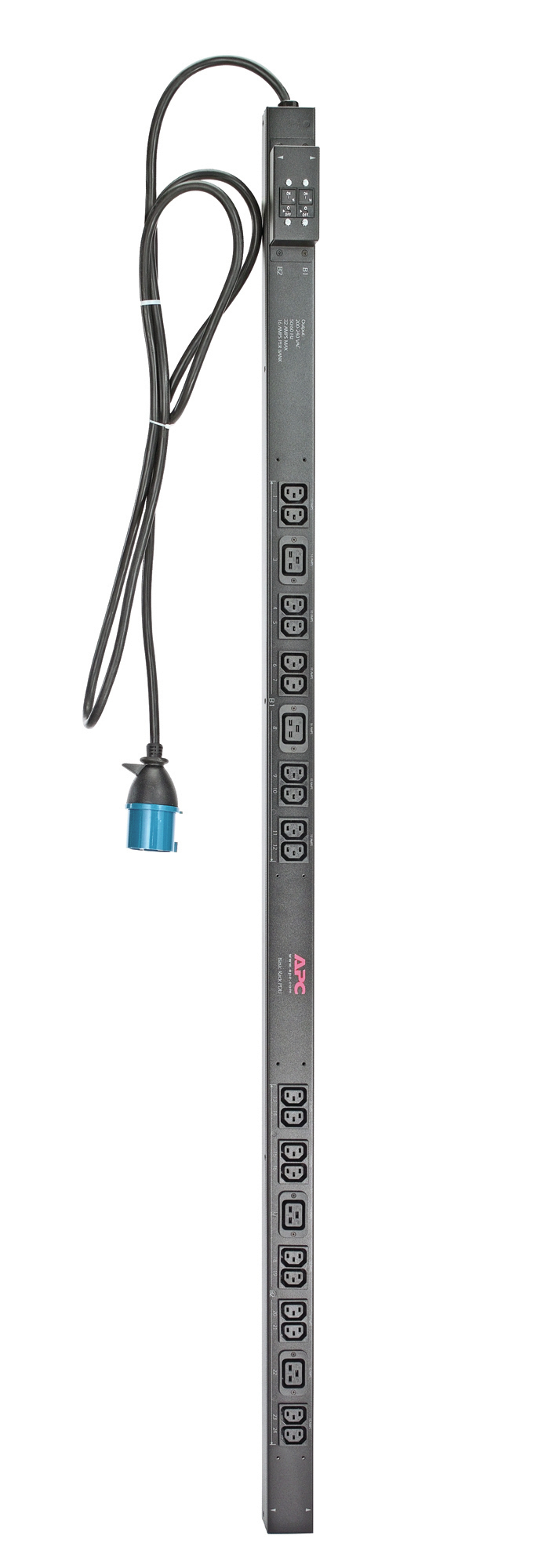

APC Rack PDU. Basic. Zero U. 32A. 230V. (20)
RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 (4)C19
- Brand: APC
- Category: UPS Systems
- SKU: 1000324
- MPN: AP7553
APC RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19 power…
APC RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19, Basic, 0U, Single-phase, Vertical, Black, 24 AC outlet(s)
Click or hover over image to enlarge
Nominal input voltage
230 V
Nominal output voltage
230 V
Output voltage
230 V
Load capacity
7680 VA
Maximum input current per phase
32 A
Maximum total current draw per phase
32 A
Maximum power
7680 W
PDU types
Basic
Comsys Price
Save $144.01 off RRP
Available to Order
4 payments of $234.31Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
APC Rack PDU. Basic. Zero U. 32A. 230V. (20)
Single input power source
Toolless Mounting Capabilities
Vertical Mounting Capabilities
Key features
- PDU types: Basic
- Type: Single-phase
- Rack capacity: 0U
- Mounting: Vertical
- Product colour: Black
- AC outlets quantity: 24 AC outlet(s)
- Power plug: IEC 60309
- AC outlet types: C13 coupler, C19 coupler
- I/O ports: (20) IEC 320 C13 (4) IEC 320 C19 IEC 309 32A
- Input connection type: IEC 309 32A
- Output connections: (20) IEC 320 C13 (4) IEC 320 C19
- Cable length: 3050 m
- Nominal input voltage: 230 V
- Nominal output voltage: 230 V
- Output voltage: 230 V
- Load capacity: 7680 VA
- Maximum input current per phase: 32 A
- Maximum total current draw per phase: 32 A
- Maximum power: 7680 W
- Operating temperature (T-T): -25 - 65 °C
- Storage temperature (T-T): 0 - 45 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Width: 56 mm
- Depth: 44 mm
- Height: 1619 mm
- Weight: 5.57 kg
- Package weight: 6.48 kg
- Package width: 152 mm
- Package depth: 127 mm
+ 1 more — see the Specifications tab.
Inc GST
$937.24
