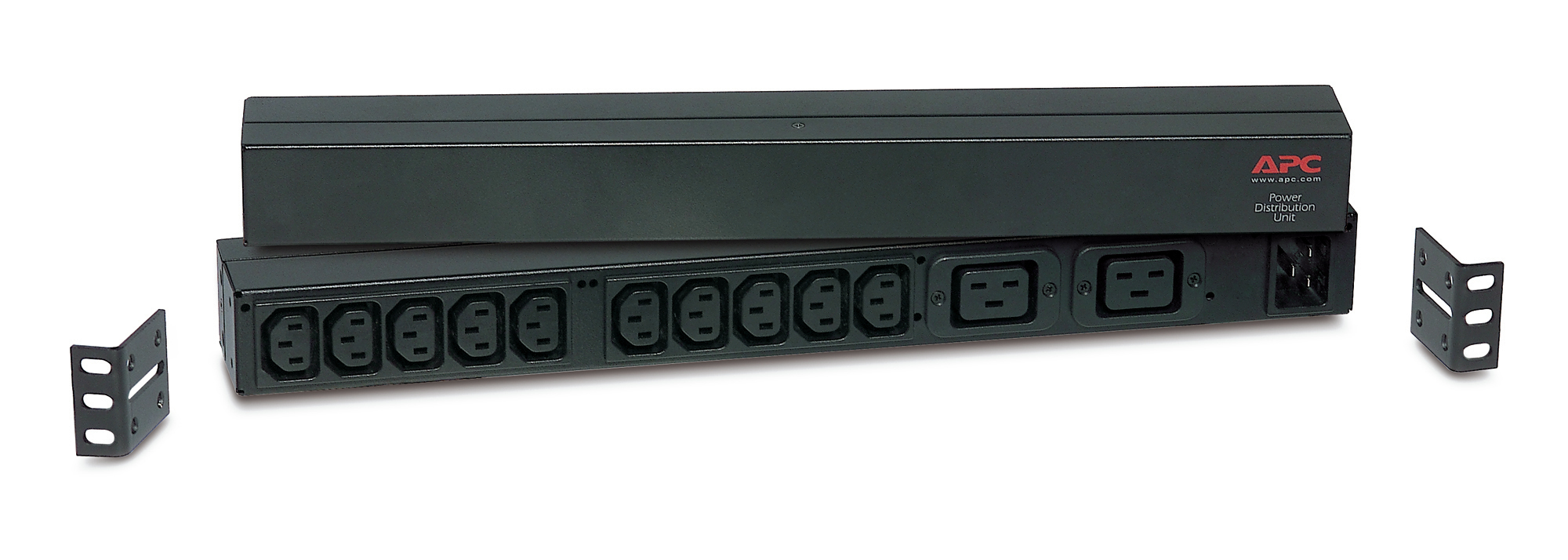

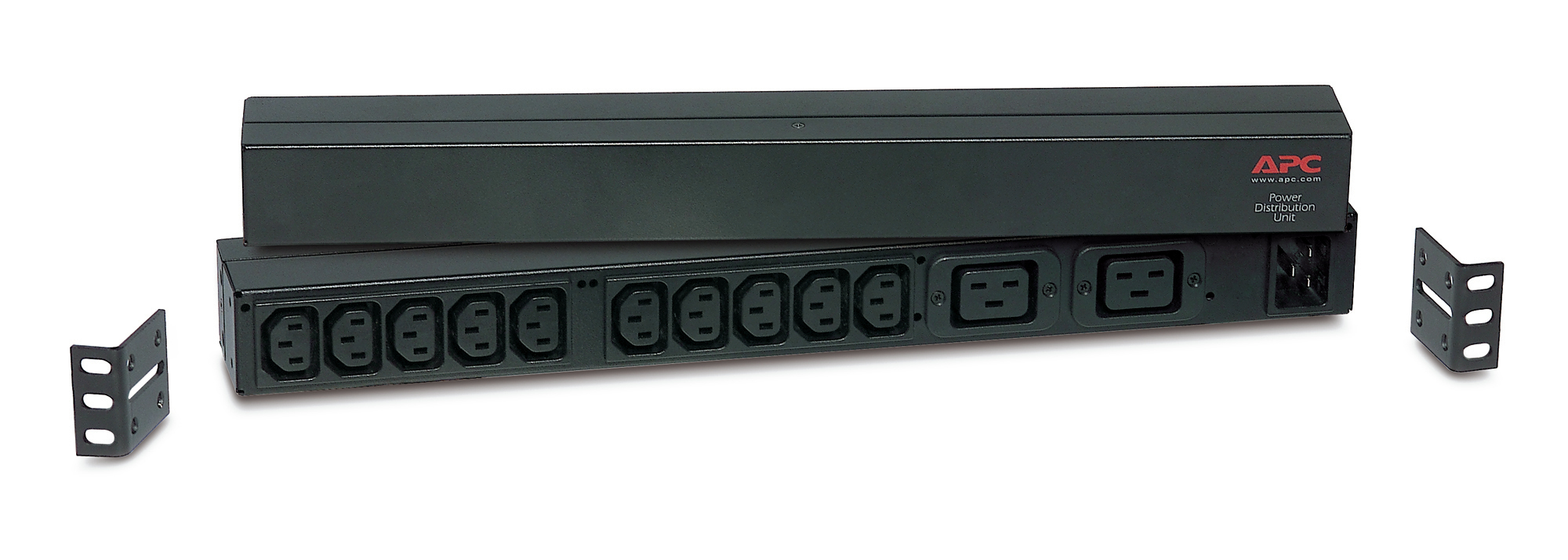

APC RACK PDU BASIC 1 U 16A 230V power distribution unit (PDU) 12 AC…
APC RACK PDU BASIC 1 U 16A 230V, Basic, 0U/1U, Single-phase, Horizontal/Vertical, Black, 12 AC outlet(s)
Click or hover over image to enlarge
Part #: 1000238
Load capacity
3680 VA
Maximum input current per phase
16 A
Maximum power
3680 W
PDU types
Basic
Type
Single-phase
Rack capacity
0U/1U
Mounting
Horizontal/Vertical
Product colour
Black
Comsys Price
Save $64.01 off RRP
Out of Stock
Contact us for ETA or alternatives
Four payments of $219.94 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
APC RACK PDU BASIC 1U 16A
APC Basic Rack PDU, Input : 120, 208, 230V , Input Connection Type : IEC-320 C20 , Cord Length : 8.2 feet ( 2.5 meters ) , Output : 120, 208, 230V , Output Connections : (10)IEC 320 C13, (2)IEC 320 C19
Features: 19 inch Rack-Mountable, Low Cost Power Distribution, Vertical Mounting Capabilities
Includes: Cord Retention Clips, Rack Mounting Brackets, User Manual
Output Voltage(s) (main only) - 120, 208, 230 V
Maximum Total Current Draw per Phase - 16 A
Output Connections - (10)IEC 320 C13; (2)IEC 320 C19
Always on Outlets - 12
Overload Protection
Input:
Nominal input voltage - 120, 208, 230
Input frequency (Hz) - 50/60 Hz
Input Connection Type - IEC-320 C20
Cord Length 8.2 feet ( 2.5 meters )
Acceptable Input Voltage - 90-250 VAC
Maximum Line Current per phase - 16.0 A
Maximum Input Current per phase - 16.0 A
Load Capacity - 3680
Key features
- PDU types: Basic
- Type: Single-phase
- Rack capacity: 0U/1U
- Mounting: Horizontal/Vertical
- Product colour: Black
- AC outlets quantity: 12 AC outlet(s)
- Power plug: C20 coupler
- AC outlet types: C13 coupler, C19 coupler
- I/O ports: Output Connections - (10)IEC 320 C13; (2)IEC 320 C19 Input Connection Type - IEC-320 C20
- Cable length: 2.5 m
- Load capacity: 3680 VA
- Maximum input current per phase: 16 A
- Maximum power: 3680 W
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Width: 447 mm
- Depth: 57.2 mm
- Height: 44.5 mm
- Weight: 980 g
