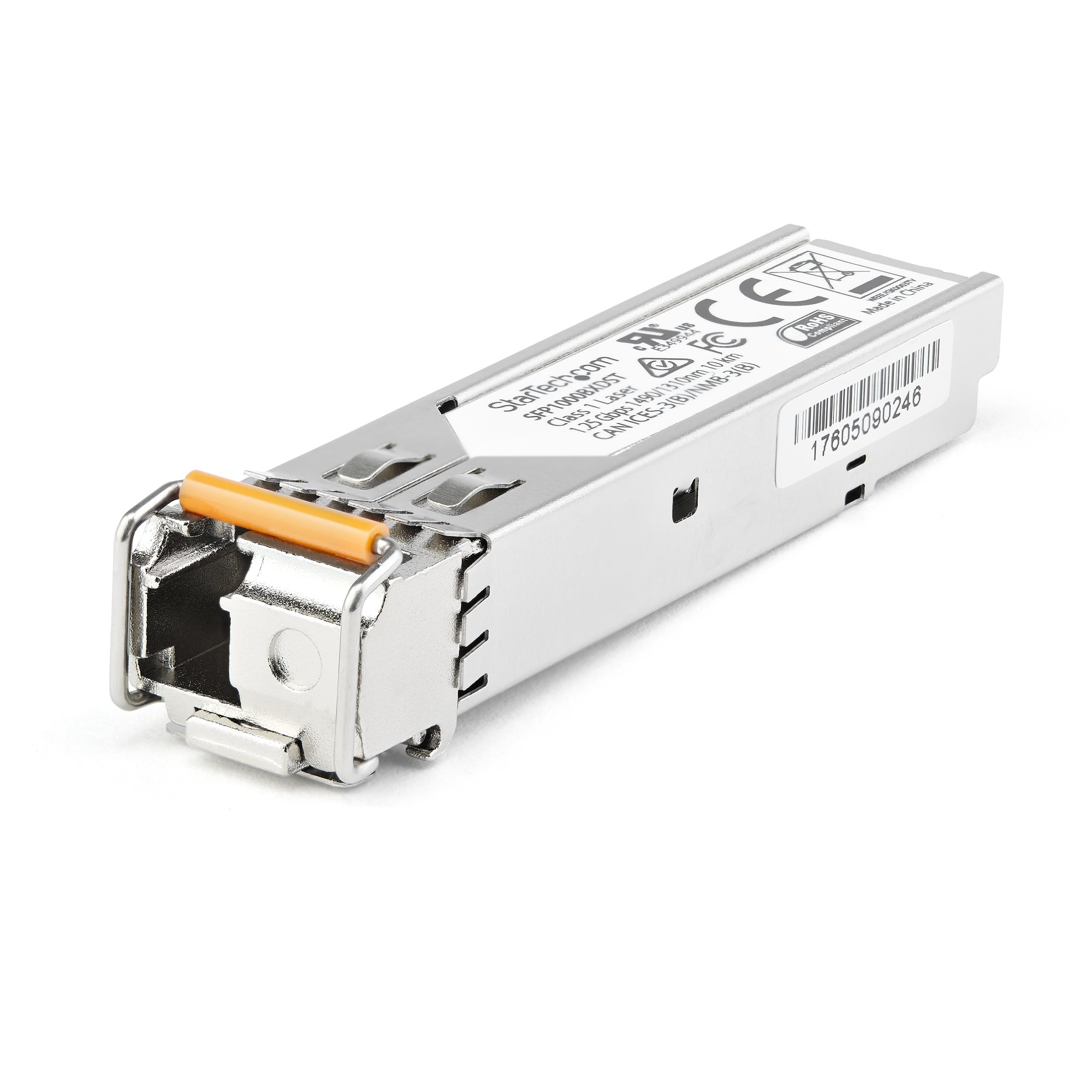

StarTech.com Dell EMC SFP-1G-BX80-U Compatible SFP Module - 1000BASE-BX-U - 1 GbE Gigabit Ethernet BiDi Fiber (SMF), Fiber optic, 1000 Mbit/s, SFP, LC, 80000 m, 1490 nm
Click or hover over image to enlarge
Part #: 4634069
Product colour
Silver
Hot-swap
Yes
Mean time between failures (MTBF)
3713222 h
Brand compatibility
Dell
Compatible products
SFP-1G-BX80-U
SFP transceiver type
Fiber optic
Maximum data transfer rate
1000 Mbit/s
Interface type
SFP
Comsys Price
Save $3.00 off RRP
Out of Stock
Contact us for ETA or alternatives
Four payments of $12.65 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

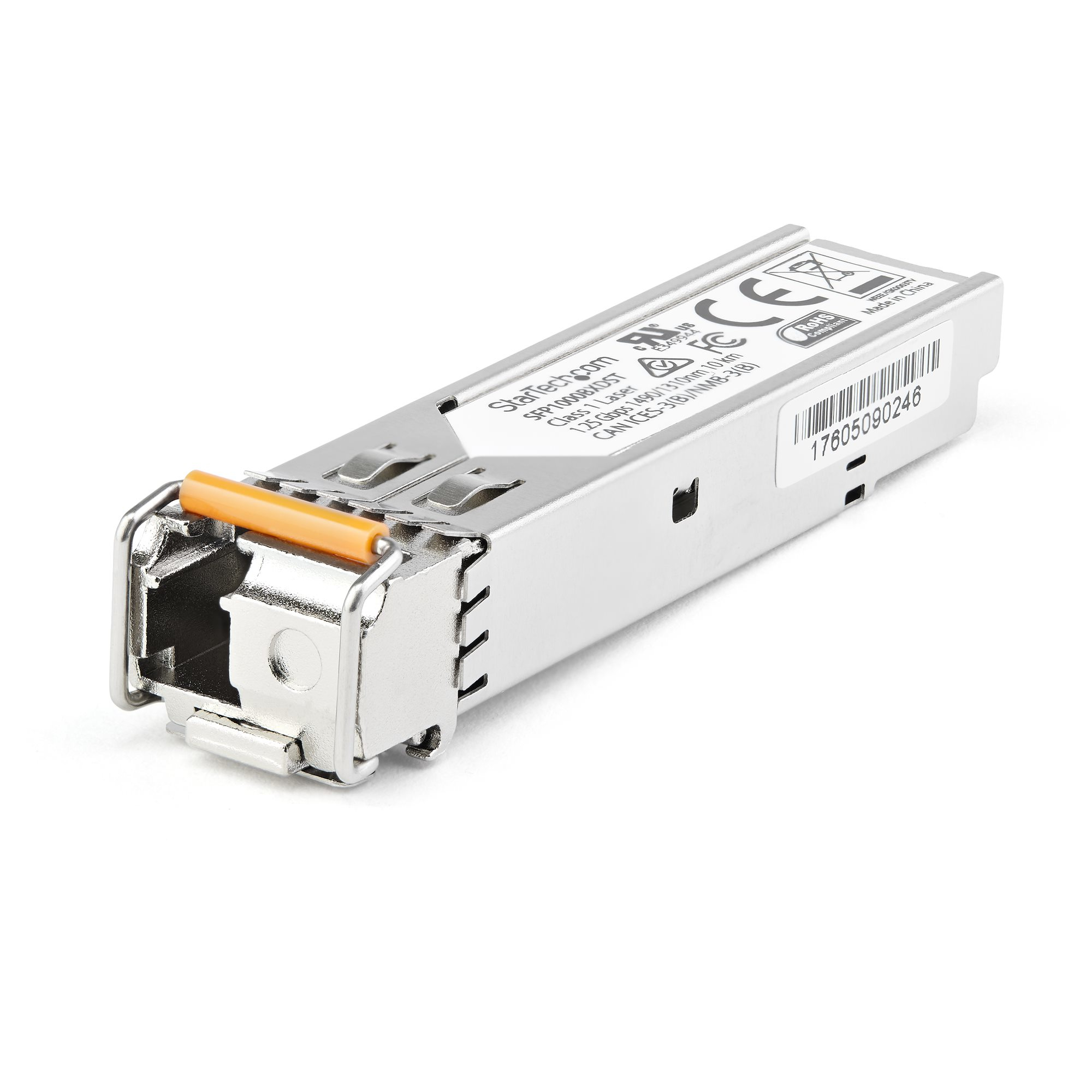

StarTech.com SFP Module - SFP-1G-BX80-U Comp - U/S
The SFP1GBX80UES is a Dell EMC SFP-1G-BX80-U compatible upstream fiber SFP transceiver which pairs with StarTech.com's SFP1GBX80DES. They are designed, programmed and tested to work with 1000BASE-BX80 compatible Dell EMC switches and routers. The SFP transceiver module supports a maximum distance of up to 80 km (49.7 mi) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1490nmTX/1550nmRX
• Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 80 km (49.7 mi)
• Power Consumption: Low power consumption
• DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 1000 Mbit/s
- Interface type: SFP
- Single-mode fiber (SMF) supported: Yes
- Multi-mode fiber (MMF) supported: No
- Fiber optic connector: LC
- Maximum transfer distance: 80000 m
- Tx wavelength (max): 1490 nm
- Rx wavelength (max): 1550 nm
- Duplex system: Full
- Digital Diagnostics Monitoring (DDM): Yes
- Product colour: Silver
- Hot-swap: Yes
- Mean time between failures (MTBF): 3713222 h
- Brand compatibility: Dell
- Compatible products: SFP-1G-BX80-U
- Compliance certificates: RoHS
- Certification: CE, FCC, UL, REACH
- Width: 58.4 mm
- Depth: 13.9 mm
- Height: 12.6 mm
- Weight: 30 g
- Quantity per pack: 1 pc(s)
- Package width: 90 mm
- Package depth: 115 mm
- Package height: 31 mm
- Package weight: 50 g
- Master (outer) case width: 90 mm
- Master (outer) case length: 115 mm
- Harmonized System (HS) code: 85369010
+ 2 more — see the Specifications tab.
