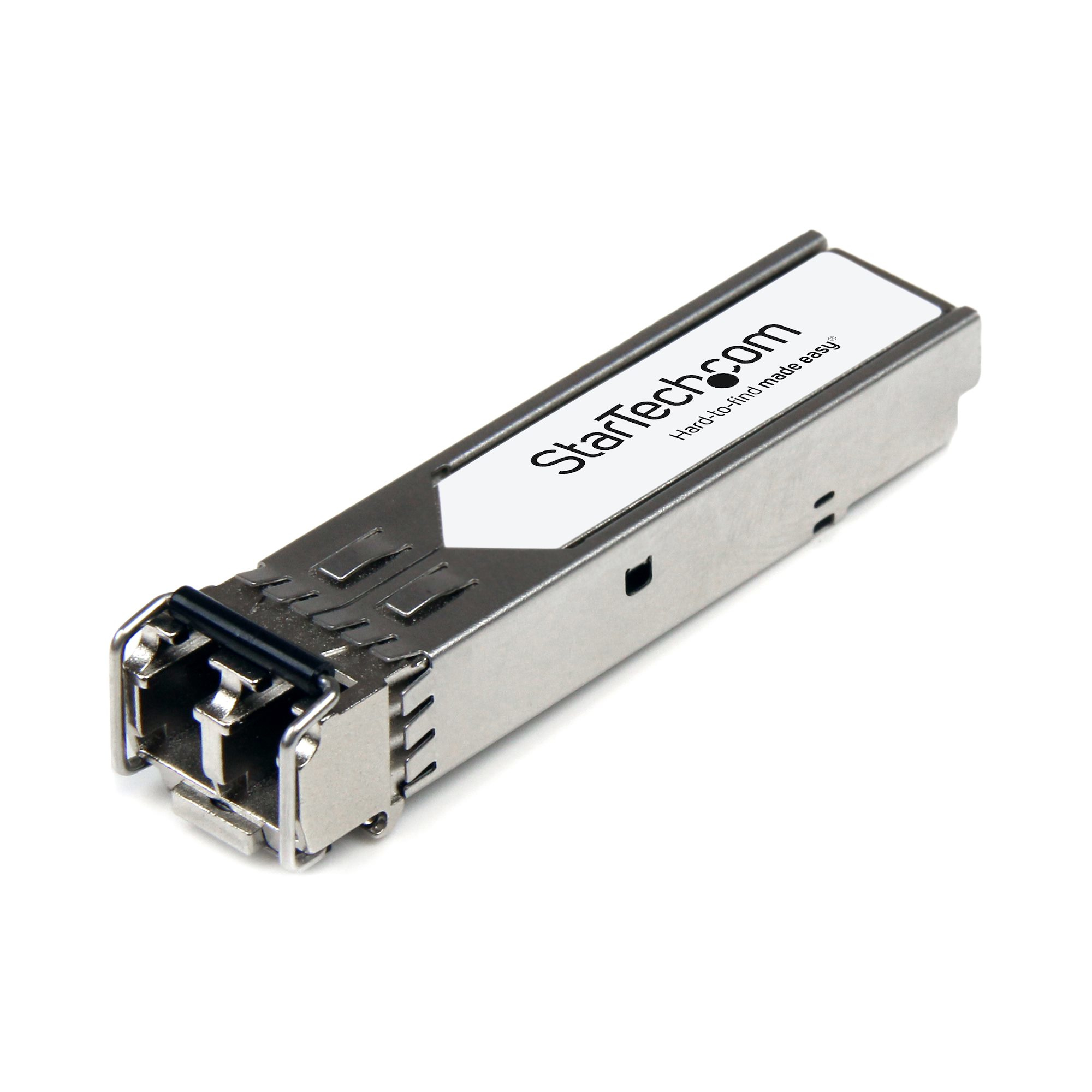

StarTech.com Brocade XG-LR Compatible SFP+ Module - 10GBASE-LR -…
StarTech.com Brocade XG-LR Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber SMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM, Fiber optic, 10000 Mbit/s, SFP+, LC, LR, 10000 m
Click or hover over image to enlarge
Part #: 4636580
Power consumption (typical)
1.3 W
Product colour
Silver
Hot-swap
Yes
Mean time between failures (MTBF)
1386624697 h
Brand compatibility
Brocade
Compatible products
XG-LR
SFP transceiver type
Fiber optic
Maximum data transfer rate
10000 Mbit/s
Comsys Price
Save $3.00 off RRP
Out of Stock
Contact us for ETA or alternatives
Four payments of $11.21 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
StarTech.com SFP+ - Brocade XG-LR Compatible
The XG-LR-ST is a Brocade XG-LR compatible fiber transceiver module that has been designed, programmed and tested to work with Brocade brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 1,386,624,697 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 10000 Mbit/s
- Interface type: SFP+
- Single-mode fiber (SMF) supported: Yes
- Multi-mode fiber (MMF) supported: No
- Fiber optic connector: LC
- SFP transceiver standard: LR
- Maximum transfer distance: 10000 m
- Wavelength: 1310 nm
- Fiber ethernet cabling technology: 10GBASE
- Digital Diagnostics Monitoring (DDM): Yes
- Product colour: Silver
- Hot-swap: Yes
- Mean time between failures (MTBF): 1386624697 h
- Brand compatibility: Brocade
- Compatible products: XG-LR
- Power consumption (typical): 1.3 W
- Certification: CE, FCC, UR
- Width: 58.4 mm
- Depth: 13.9 mm
- Height: 13.7 mm
- Weight: 21 g
- Quantity per pack: 1 pc(s)
- Package width: 90 mm
- Package depth: 115 mm
- Package height: 31 mm
- Package weight: 50 g
- Master (outer) case width: 90 mm
- Master (outer) case length: 115 mm
- Harmonized System (HS) code: 85369010
+ 2 more — see the Specifications tab.
