StarTech.com MSA Compliant SFP Transceiver Module - 100BASE-ZX~MSA…

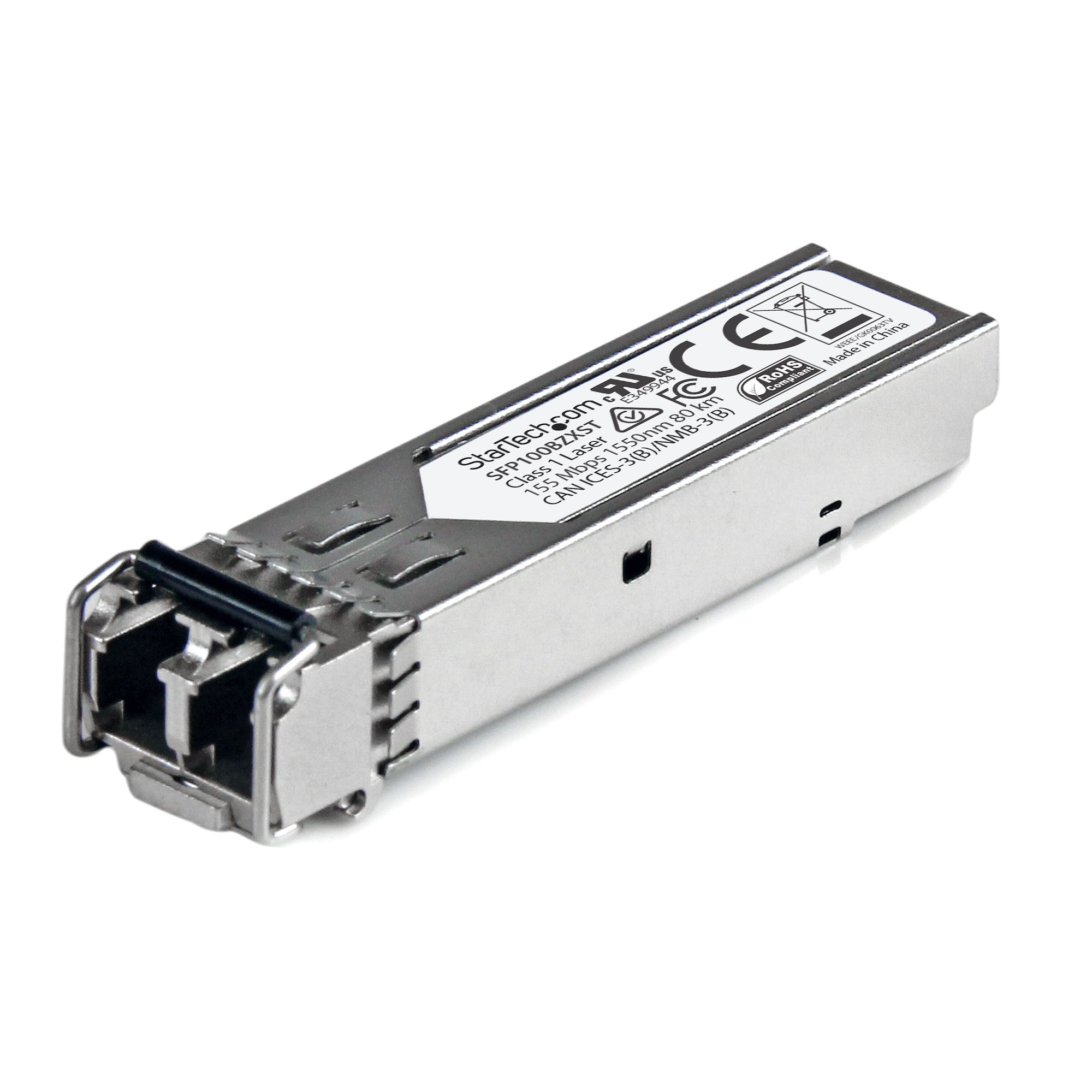

StarTech.com MSA Compliant SFP Transceiver Module - 100BASE-ZX~MSA Uncoded SFP Module - 100BASE-ZX - 100MbE Single Mode Fiber (SMF) Optic Transceiver - 100Mb Ethernet SFP - LC 80km - 1550nm - DDM, Fiber optic, 155 Mbit/s, SFP, LC, ZX, 80000 m
Click or hover over image to enlarge
Part #: 3715541
Power consumption (typical)
1 W
Product colour
Silver
Housing material
Aluminium
Hot-Plug support
Yes
SFP transceiver type
Fiber optic
Maximum data transfer rate
155 Mbit/s
Interface type
SFP
Single-mode fiber (SMF) supported
Yes
Comsys Price
Save $2.00 off RRP
Out of Stock
Contact us for ETA or alternatives
Four payments of $10.06 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

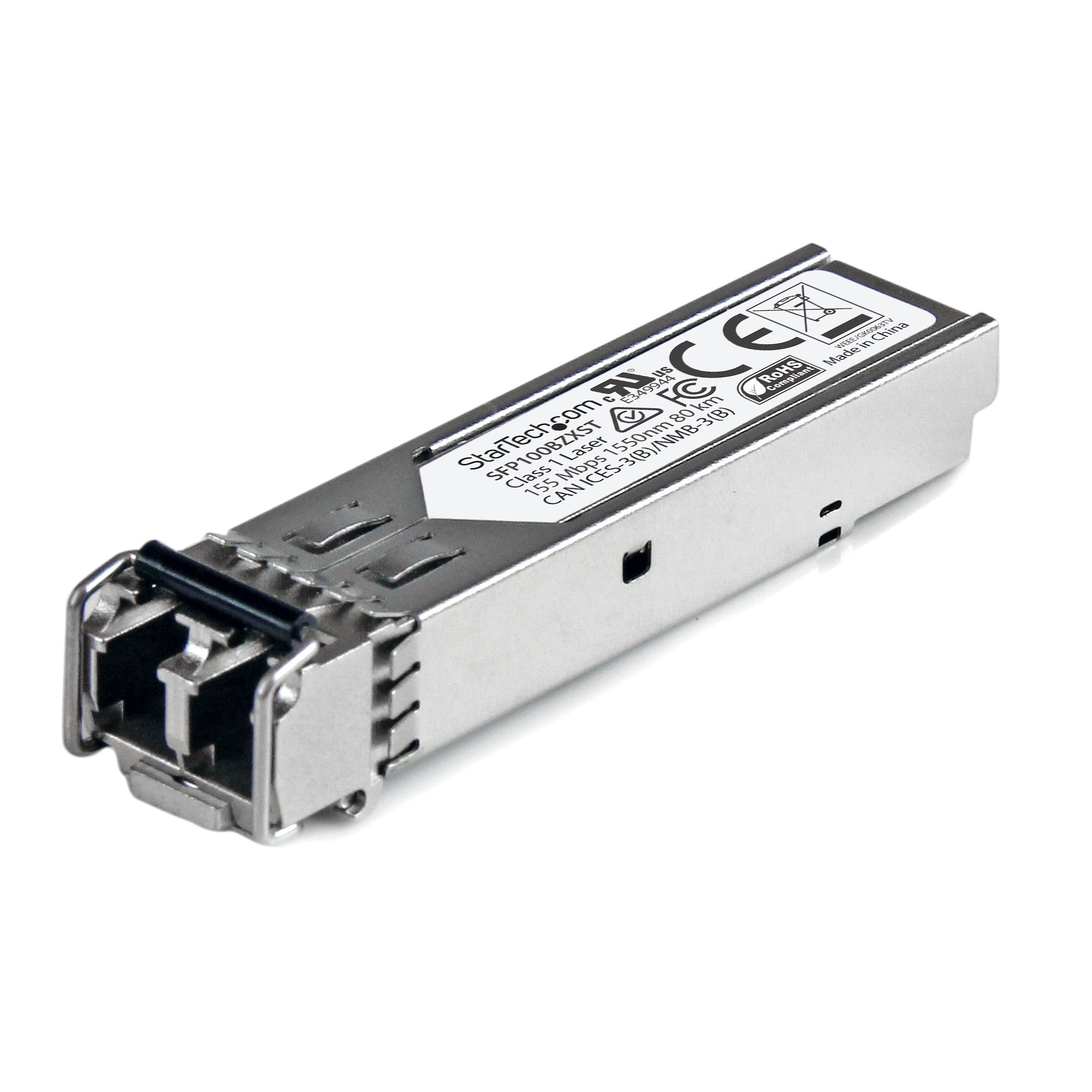

StarTech.com MSA Compliant 100Base-ZX SFP - SM 80 km
The SFP100BZXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 100BASE-ZX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 80 km (49.7 mi) and delivers dependable 100 Mb Ethernet connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1550nm
• Maximum Data Transfer Rate: 155 Mbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 80 km (49.7 mi)
• Power Consumption: Less than 1 Watt
• DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 155 Mbit/s
- Interface type: SFP
- Single-mode fiber (SMF) supported: Yes
- Fiber optic connector: LC
- SFP transceiver standard: ZX
- Maximum transfer distance: 80000 m
- Wavelength: 1550 nm
- Networking standards: IEEE 802.3u
- Duplex system: Full, Half
- Wavelength-division multiplexing (WDM): No
- Product colour: Silver
- Housing material: Aluminium
- Hot-Plug support: Yes
- Power consumption (typical): 1 W
- Compliance certificates: RoHS
- Certification: CE, FCC, UR
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Width: 14 mm
- Depth: 60 mm
- Height: 16 mm
- Weight: 18 g
- Quantity per pack: 1 pc(s)
- Package width: 95 mm
- Package depth: 118 mm
- Package height: 34 mm
- Package weight: 47 g
- Master (outer) case width: 200 mm
+ 4 more — see the Specifications tab.
