StarTech.com MSA Compliant SFP Transceiver Module - 100BASE-FX~MSA…
StarTech.com MSA Compliant SFP Transceiver Module - 100BASE-FX~MSA Uncoded SFP Module - 100BASE-FX - 100MbE Multi Mode Fiber (MMF) Optic Transceiver - 100Mb Ethernet SFP - LC 2km - 1310nm - DDM, Fiber optic, 155 Mbit/s, SFP, LC, FX, 2000 m
Click or hover over image to enlarge
Part #: 3715538
Power consumption (typical)
1 W
Product colour
Silver
Housing material
Aluminium
Hot-Plug support
Yes
SFP transceiver type
Fiber optic
Maximum data transfer rate
155 Mbit/s
Interface type
SFP
Multi-mode fiber (MMF) supported
Yes
Comsys Price
Save $6.87 off RRP
Out of Stock
Contact us for ETA or alternatives
Four payments of $20.12 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

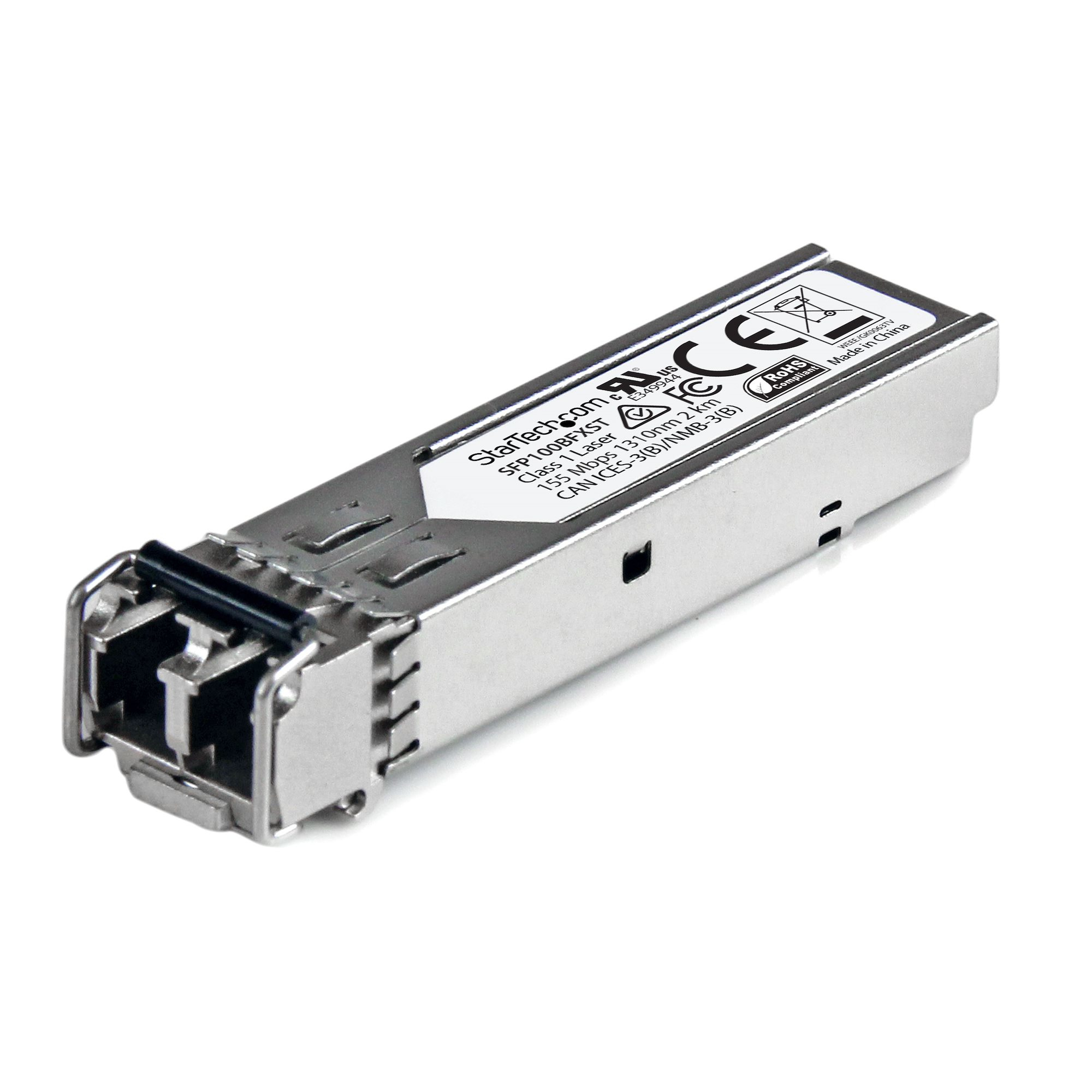

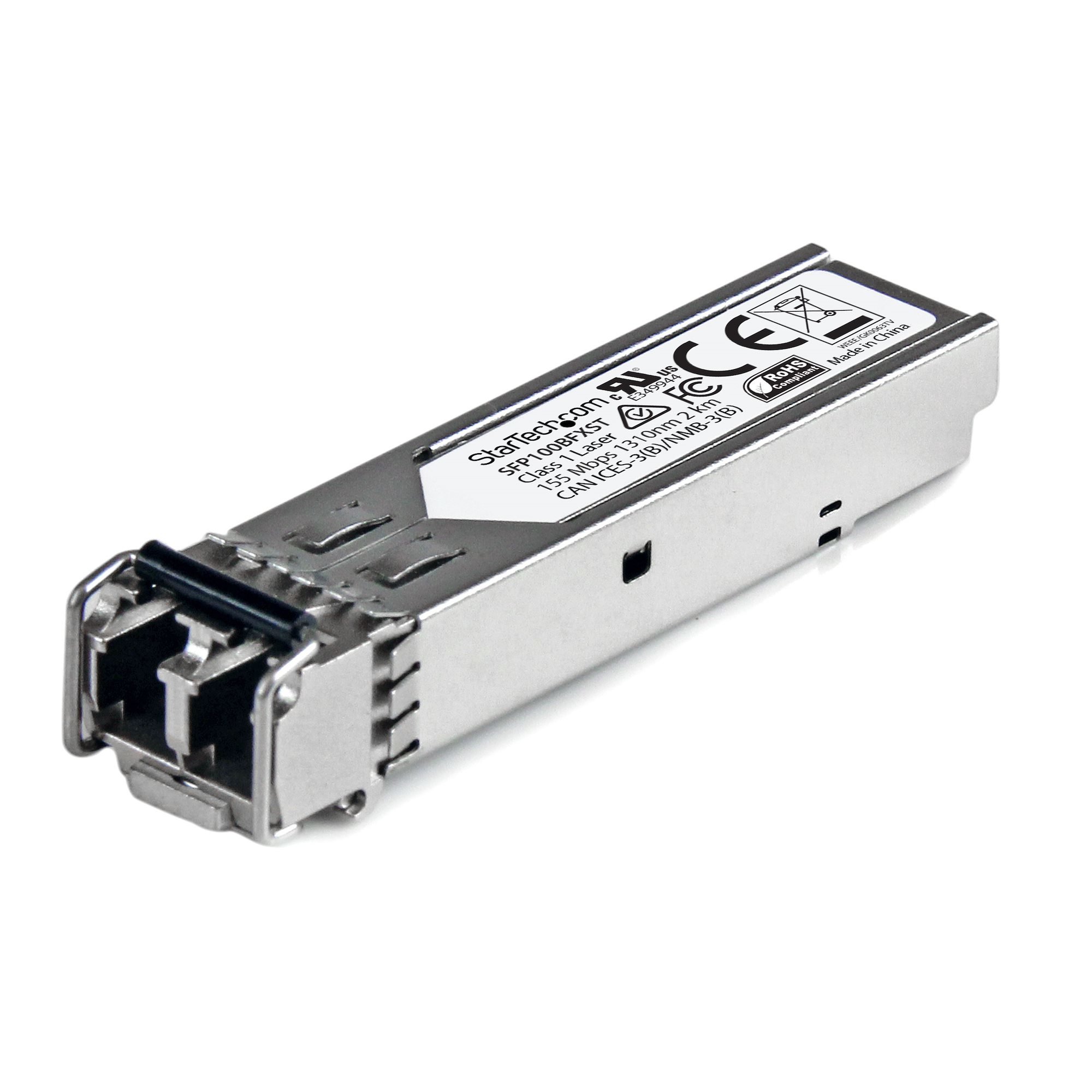

StarTech.com MSA Compliant 100Base-FX SFP - MM LC 2km
The SFP100BFXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 100BASE-FX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 2 km (1.2 mi) and delivers dependable 100 Mb Ethernet connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1310nm
• Maximum Data Transfer Rate: 155 Mbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 2 km (1.2 mi)
• Power Consumption: Less than 1 Watt
• DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 155 Mbit/s
- Interface type: SFP
- Multi-mode fiber (MMF) supported: Yes
- Fiber optic connector: LC
- SFP transceiver standard: FX
- Maximum transfer distance: 2000 m
- Wavelength: 1310 nm
- Networking standards: IEEE 802.3u
- Duplex system: Full, Half
- Digital Diagnostics Monitoring (DDM): Yes
- Wavelength-division multiplexing (WDM): No
- Product colour: Silver
- Housing material: Aluminium
- Hot-Plug support: Yes
- Power consumption (typical): 1 W
- Compliance certificates: RoHS
- Certification: CE, FCC, UR
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Width: 13.9 mm
- Depth: 58.4 mm
- Height: 12.6 mm
- Weight: 20 g
- Quantity per pack: 1 pc(s)
- Package width: 90 mm
- Package depth: 120 mm
- Package height: 30 mm
- Package weight: 48 g
+ 6 more — see the Specifications tab.
Inc GST
$80.49
