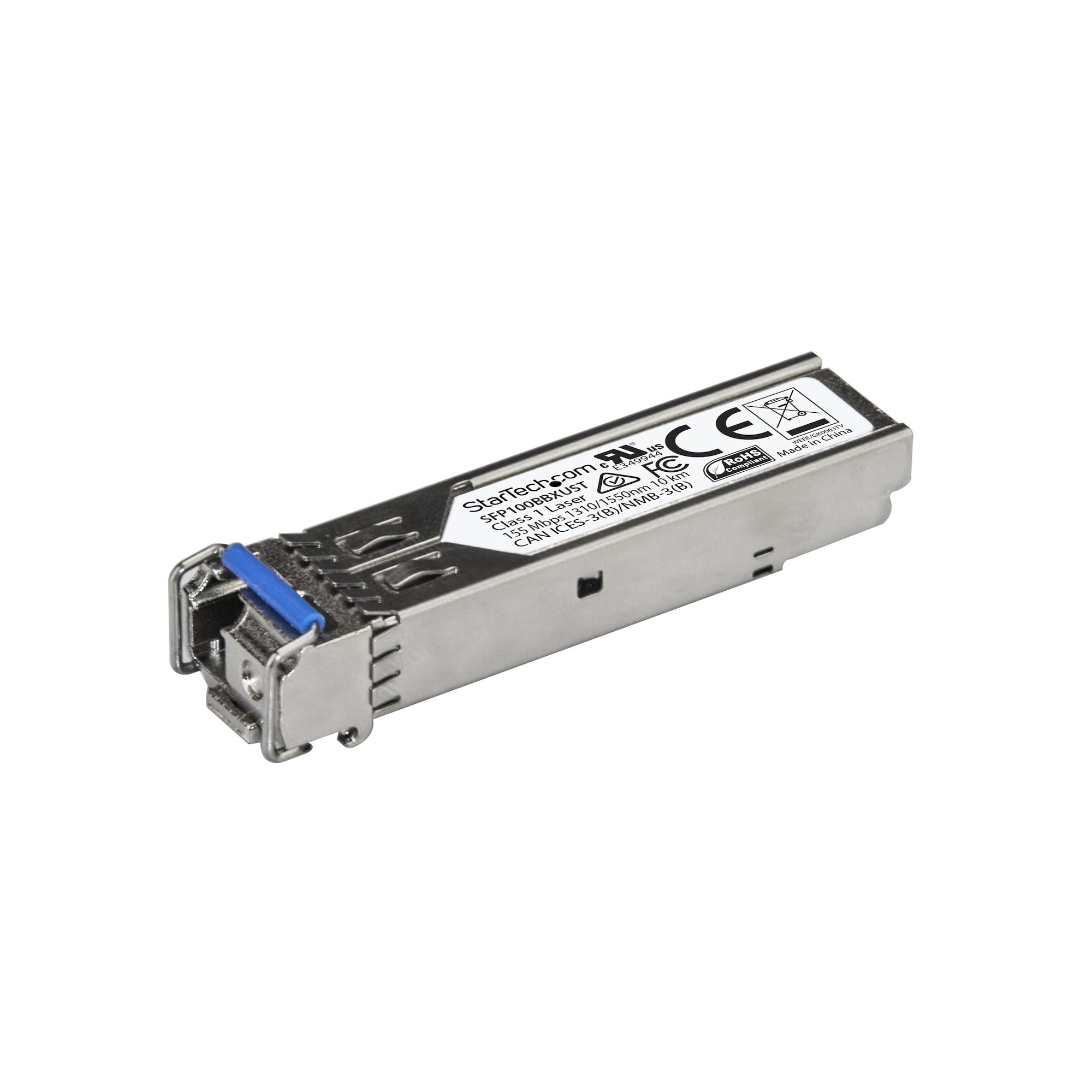

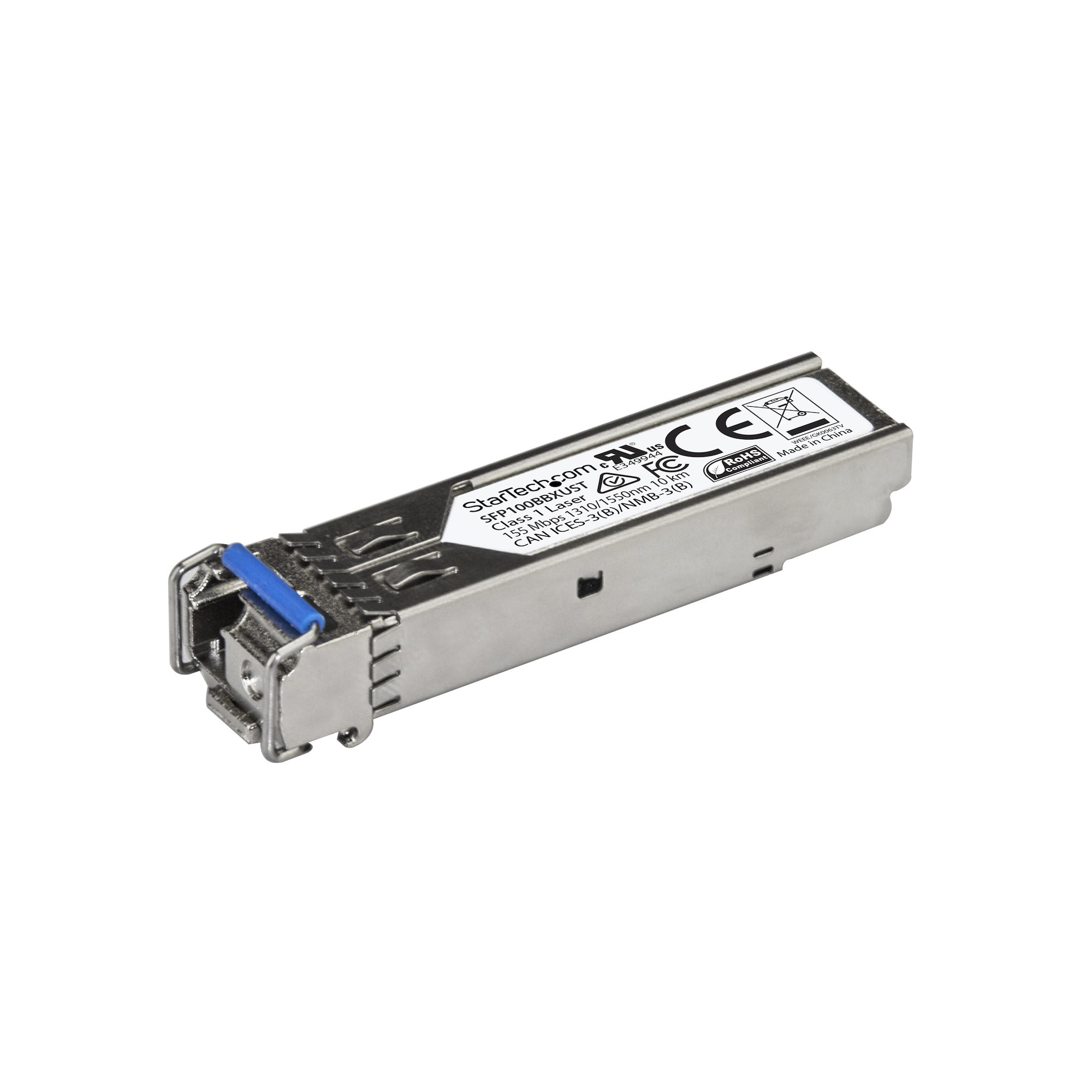

StarTech.com MSA Compliant 100Base-BX SFP (Upstream)
MSA Compliant 100Base-BX SFP (Upstream) - 100 Mbps Fiber SFP Module w/ DDM / DOM - Single-mode SFP LC - 10km /6.2 mi - 1310nmTx/1550nmRx - Lifetime Warranty - SFP Transceiver
- Brand: StarTech.com
- Category: Network Accessories
- SKU: 3720858
- MPN: SFP100BBXUST
StarTech.com MSA Compliant SFP Transceiver Module - 100BASE-BX~MSA…
StarTech.com MSA Compliant SFP Transceiver Module - 100BASE-BX~MSA Uncoded SFP Transceiver Module - 100BASE-BX - 100 MbE Ethernet BiDi Fiber (SMF), Fiber optic, 155 Mbit/s, SFP, LC, BX, 10000 m
Click or hover over image to enlarge
Power consumption (typical)
1 W
Product colour
Silver
Housing material
Aluminium
Hot-Plug support
Yes
SFP transceiver type
Fiber optic
Maximum data transfer rate
155 Mbit/s
Interface type
SFP
Single-mode fiber (SMF) supported
Yes
Comsys Price
Available to Order
4 payments of $6.61Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
StarTech.com MSA Compliant 100Base-BX SFP (Upstream)
The SFP100BBXUST is an MSA compliant upstream fiber SFP transceiver which pairs with StarTech.com's SFP100BBXDST. They are designed, programmed and tested to work with 100BASE-BX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 100 Mbps connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1310nmTx/1550nmRx
• Maximum Data Transfer Rate: 155 Mbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption: Less than 1 Watt
• DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 155 Mbit/s
- Interface type: SFP
- Single-mode fiber (SMF) supported: Yes
- Fiber optic connector: LC
- SFP transceiver standard: BX
- Maximum transfer distance: 10000 m
- Tx wavelength (min): 1310 nm
- Rx wavelength (min): 1550 nm
- Networking standards: IEEE 802.3u
- Duplex system: Full, Half
- Digital Diagnostics Monitoring (DDM): Yes
- Wavelength-division multiplexing (WDM): Yes
- Product colour: Silver
- Housing material: Aluminium
- Hot-Plug support: Yes
- Power consumption (typical): 1 W
- Compliance certificates: RoHS
- Certification: CE, FCC, UR
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Width: 16 mm
- Depth: 60 mm
- Height: 11 mm
- Weight: 18 g
- Quantity per pack: 1 pc(s)
- Package width: 92 mm
- Package depth: 117 mm
- Package height: 30 mm
+ 6 more — see the Specifications tab.
Inc GST
$26.44
