StarTech.com MSA Compliant SFP Transceiver Module - 100BASE-BX~MSA…

StarTech.com MSA Compliant SFP Transceiver Module - 100BASE-BX~MSA Uncoded SFP Transceiver Module - 100BASE-BX - 100 MbE Gigabit Ethernet BiDi Fiber (SMF), Fiber optic, 155 Mbit/s, SFP, CXP, LC, BX, 10000 m

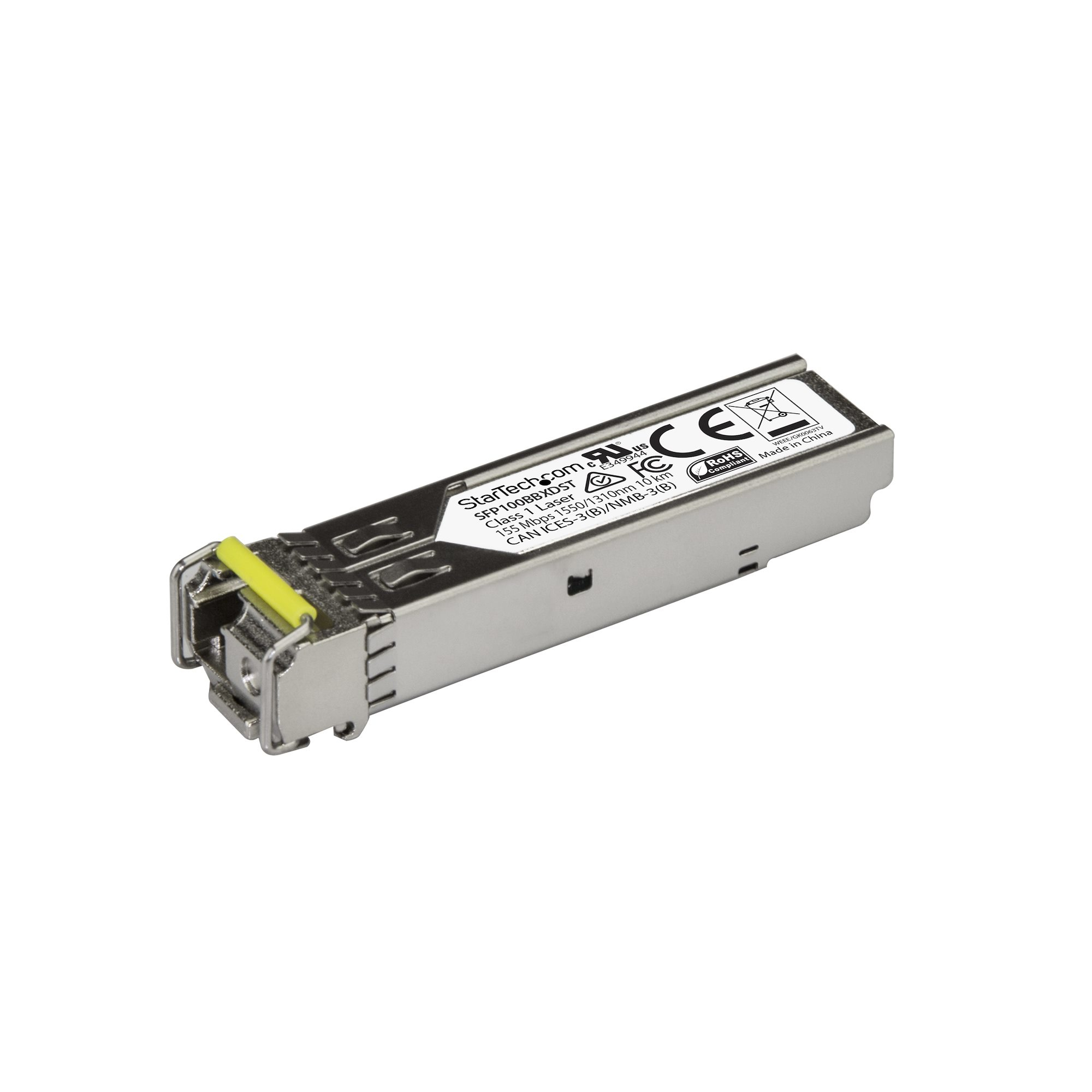

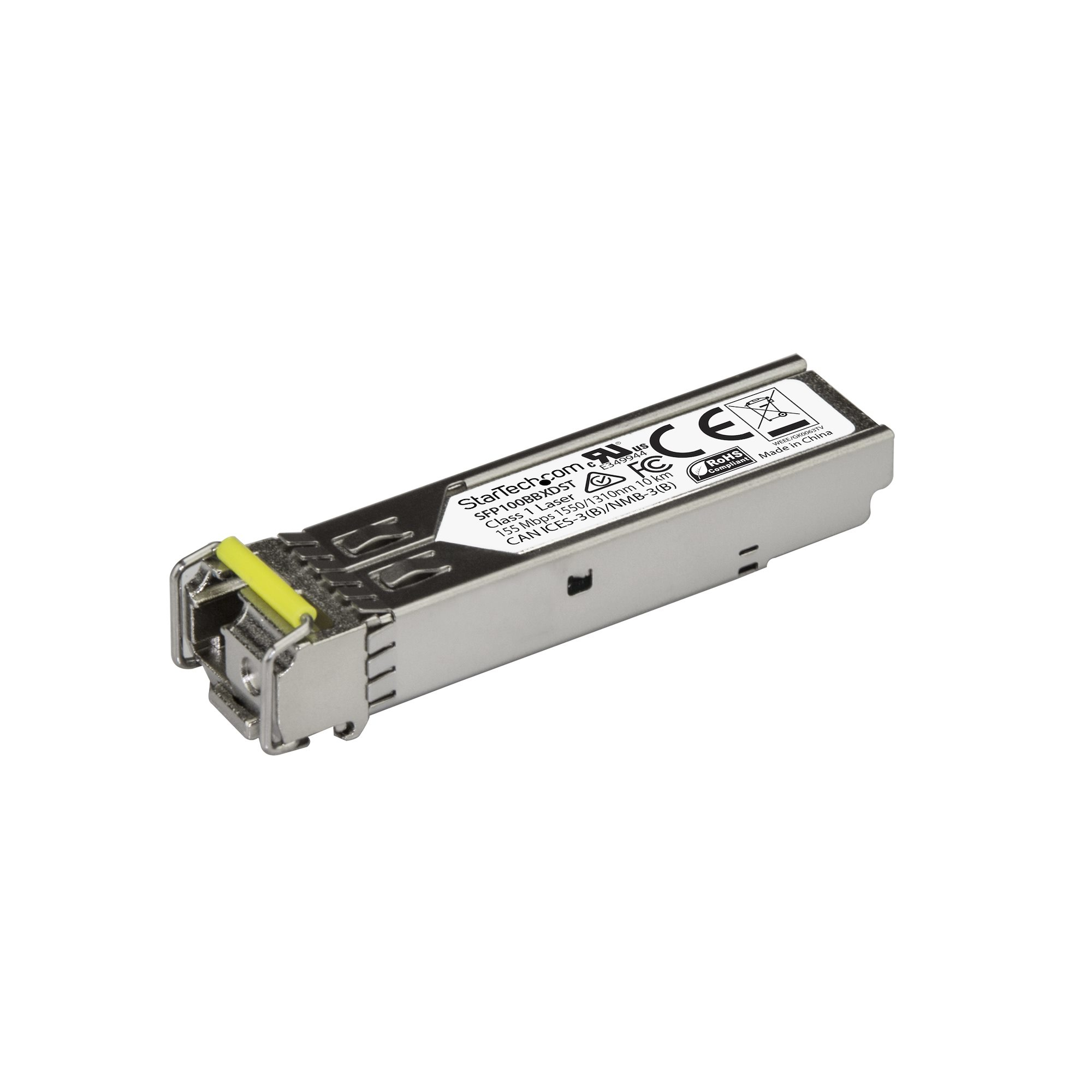

StarTech.com MSA Compliant 100Base-BX SFP Downstream

Click or hover over image to enlarge

Brand:StarTech.com
MPN:3715536

Part #: 3715536

Power consumption (typical)

1 W

Product colour

Silver

Housing material

Aluminium

Hot-Plug support

Yes

SFP transceiver type

Fiber optic

Maximum data transfer rate

155 Mbit/s

Interface type

SFP

Single-mode fiber (SMF) supported

Yes

Returns & Warranty

Comsys Price

$26.44

Save $1.00 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $6.61 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

StarTech.com MSA Compliant 100Base-BX SFP Downstream

100 Mbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The SFP100BBXDST is an MSA compliant downstream fiber SFP transceiver which pairs with StarTech.com's SFP100BBXUST. They are designed, programmed and tested to work with 100BASE-BX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.

Technical Specifications:

• Wavelength: 1550nmTx/1310nmRx
• Maximum Data Transfer Rate: 155 Mbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption: Less than 1 Watt
• DDM: Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

Key features

  • SFP transceiver type: Fiber optic
  • Maximum data transfer rate: 155 Mbit/s
  • Interface type: SFP
  • Single-mode fiber (SMF) supported: Yes
  • Fiber optic connector: CXP, LC
  • SFP transceiver standard: BX
  • Maximum transfer distance: 10000 m
  • Tx power (min): 1550 dBmW
  • Rx power (min): 1310 dBmW
  • Networking standards: IEEE 802.3u
  • Duplex system: Full, Half
  • Digital Diagnostics Monitoring (DDM): Yes
  • Wavelength-division multiplexing (WDM): Yes
  • Product colour: Silver
  • Housing material: Aluminium
  • Hot-Plug support: Yes
  • Power consumption (typical): 1 W
  • Compliance certificates: RoHS
  • Certification: CE, FCC, UR
  • Operating temperature (T-T): 0 - 70 °C
  • Storage temperature (T-T): -40 - 85 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Width: 16 mm
  • Depth: 60 mm
  • Height: 11 mm
  • Weight: 18 g
  • Quantity per pack: 1 pc(s)
  • Package width: 92 mm
  • Package depth: 117 mm
  • Package height: 30 mm

+ 6 more — see the Specifications tab.
