StarTech.com MSA Compliant SFP Transceiver Module - 1000BASE-TX~MSA…
StarTech.com MSA Compliant SFP Transceiver Module - 1000BASE-TX~MSA Uncoded SFP Module - 1000BASE-TX - SFP to RJ45 Cat6/Cat5e - 1GE Gigabit Ethernet SFP - RJ-45 100m, Copper, 1000 Mbit/s, SFP, TX, 100 m, IEEE 802.3z
Click or hover over image to enlarge
Part #: 3715534
Power consumption (typical)
1.3 W
Product colour
Silver
Housing material
Aluminium
Hot-Plug support
Yes
SFP transceiver type
Copper
Maximum data transfer rate
1000 Mbit/s
Interface type
SFP
SFP transceiver standard
TX
Comsys Price
Save $16.57 off RRP
In Stock
32 units available
Four payments of $25.59 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

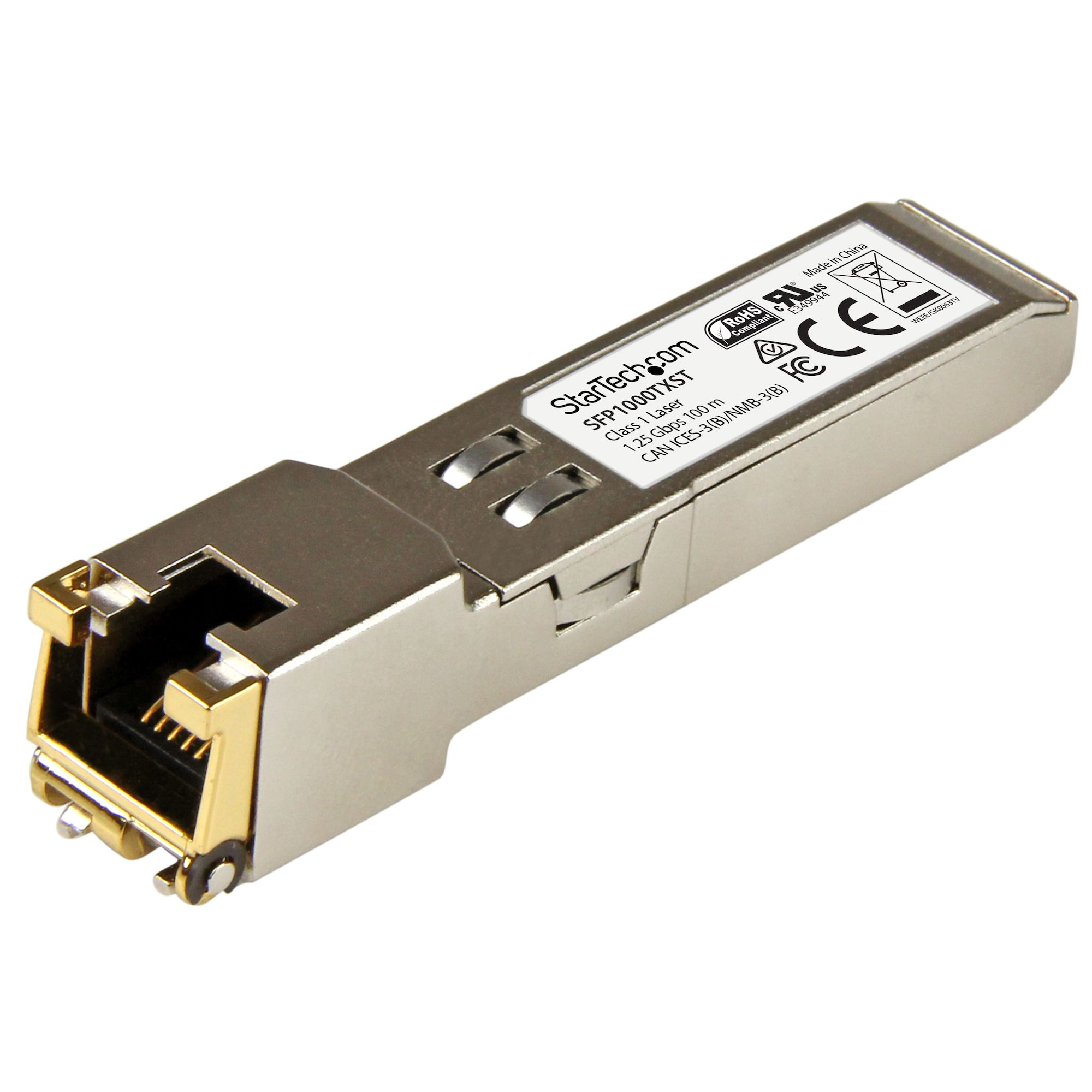

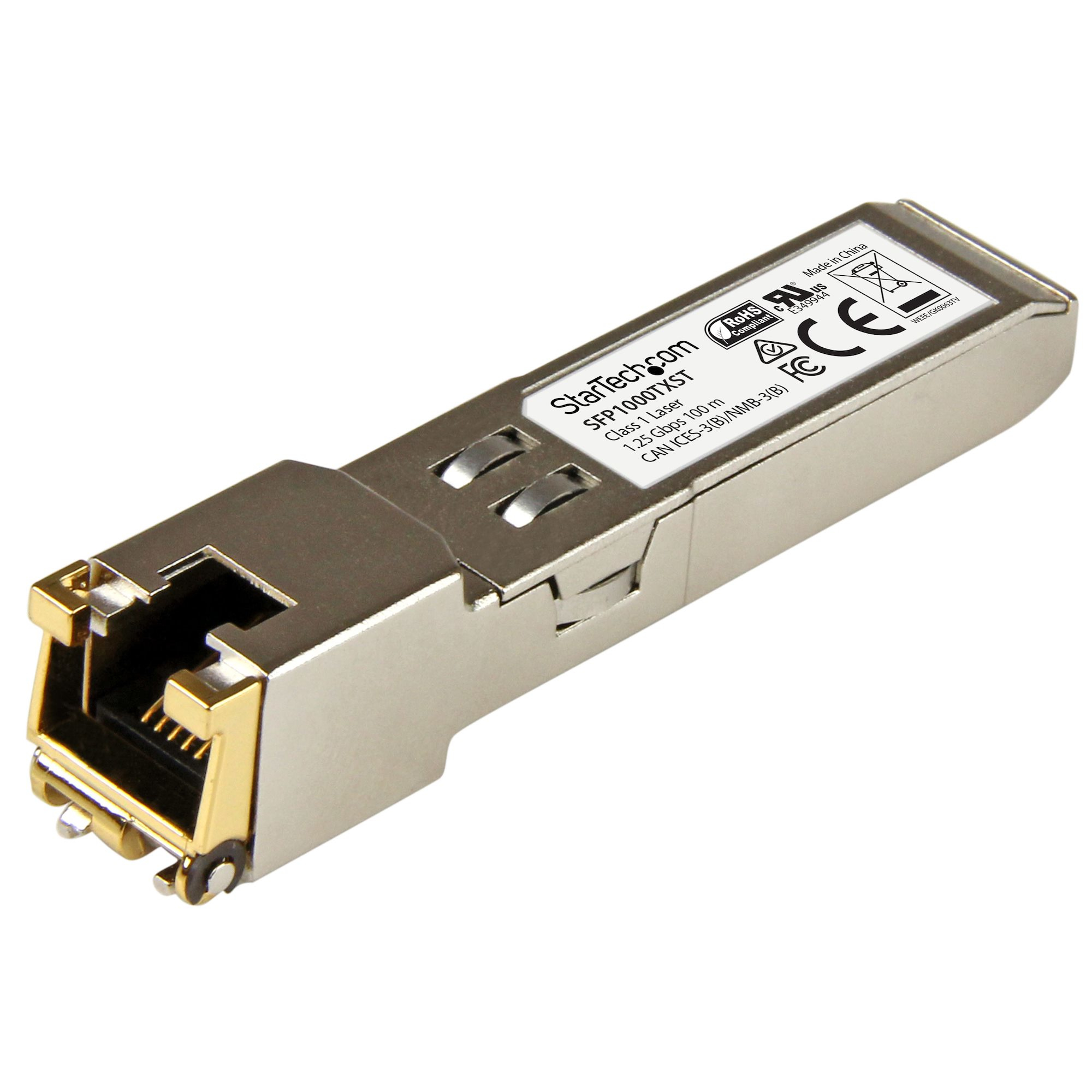

StarTech.com MSA Compliant 1000Base-TX SFP - Copper
The SFP1000TXST is an MSA compliant copper SFP transceiver that’s designed, programmed and tested to work with 1000BASE-TX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 100 m (328 ft) and delivers dependable 1 GbE connectivity over copper cabling.
Technical Specifications:
• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• Power Consumption: Less than 1.3 Watt
• DDM: No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key features
- SFP transceiver type: Copper
- Maximum data transfer rate: 1000 Mbit/s
- Interface type: SFP
- SFP transceiver standard: TX
- Maximum transfer distance: 100 m
- Ethernet LAN: Yes
- Networking standards: IEEE 802.3z
- Ethernet LAN (RJ-45) ports: 1
- Duplex system: Full
- Digital Diagnostics Monitoring (DDM): No
- Product colour: Silver
- Housing material: Aluminium
- Hot-Plug support: Yes
- Power consumption (typical): 1.3 W
- Compliance certificates: RoHS
- Certification: CE, FCC, UR
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Width: 13.9 mm
- Depth: 58.4 mm
- Height: 12.6 mm
- Weight: 25 g
- Quantity per pack: 1 pc(s)
- Package width: 90 mm
- Package depth: 120 mm
- Package height: 30 mm
- Package weight: 52 g
- Master (outer) case width: 310 mm
- Master (outer) case length: 400 mm
+ 4 more — see the Specifications tab.
Inc GST
$102.34
