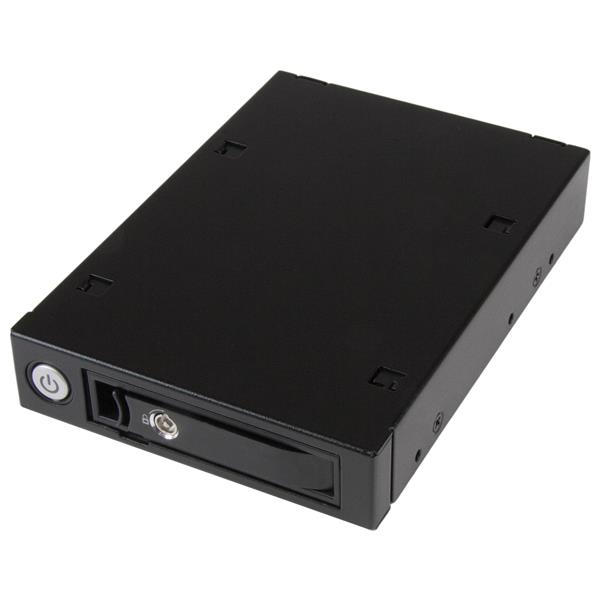

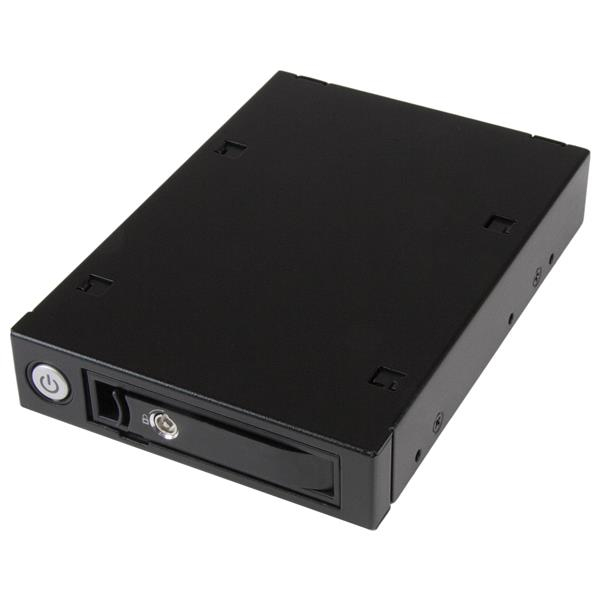

StarTech.com Mobile rack backplane for 2.5in SATA/SAS drive
StarTech.com Mobile rack backplane for 2.5in SATA/SAS drive, 8.89 cm (3.5"), Carrier panel, Black, Silver, 2 TB, 2.5", Serial ATA, Serial ATA II, Serial ATA III, Serial Attached SCSI (SAS)
Click or hover over image to enlarge
Part #: 2958917
Size (imperial)
8.89 cm (3.5")
Type
Carrier panel
Product colour
Black, Silver
Number of HDDs supported
1
Maximum HDD capacity
2 TB
HDD size
2.5"
HDD interface
Serial ATA, Serial ATA II, Serial ATA III, Serial Attached SCSI (SAS)
Material
Aluminium, Steel
Comsys Price
Save $4.00 off RRP
Only 2 left in stock
Order soon to avoid backorder
Four payments of $10.92 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
StarTech.com MOBILE RACK BACKPLANE FOR 2.5IN SAS/SATA
Now it’s easy to increase the storage capabilities of your server or PC while protecting data integrity. This one-bay mobile rack backplane lets you install and easily remove a 2.5in SAS or SATA HDD or SDD in a 3.5in external expansion bay on your desktop PC or server. It’s ideal for system integrators and administrators looking for flexible management of data storage.
Easy compatibility
The backplane provides an easy, convenient way to install and swap drives between desktops or servers. It supports both SAS and SATA 2.5in drives ranging from 5 to 15mm in height. To maximize the performance of your hard drives, the mobile rack supports SAS II and SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.
The backplane can be mounted either vertically or horizontally, for error-free tray insertion and maximum compatibility with servers or desktop computers.You can lock the removable steel tray in place, providing an enhanced level of drive protection. The Non-Scratch SATA (NSS) connector provides a high 50,000+ insertion rating, your assurance of long-lasting performance of both the drive and the bay.
Convenient, interchangeable drive trays
Many fast-paced work environments require drives to be removed regularly. This convenient backplane lets you hot swap between systems quickly, without shutting down.
The included drive tray is interchangeable, working with both the single-bay backplane and the 4-bay backplane (SATSASBP425) so you can hot swap between systems for easy file access.
Vented metal design for durability
Engineered with high-quality metal, the robust metal housing delivers reliable performance. The venting helps to ensure proper air flow to assist with heat dissipation.
The SATSASBP125 single-bay backplane is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
- Size (imperial): 8.89 cm (3.5")
- Type: Carrier panel
- Product colour: Black, Silver
- Number of HDDs supported: 1
- Maximum HDD capacity: 2 TB
- HDD size: 2.5"
- HDD interface: Serial ATA, Serial ATA II, Serial ATA III, Serial Attached SCSI (SAS)
- Material: Aluminium, Steel
- Supported storage drive heights: 5,9.5,12.5,15 mm
- Hot-swap: Yes
- Noise level: 20 dB
- Data transfer rate: 6 Gbit/s
- LED indicators: Activity, Power
- Key lock: Yes
- Certification: CE, FCC
- Port multiplier: No
- Width: 101 mm
- Depth: 141 mm
- Height: 25 mm
- Weight: 440 g
- Package weight: 595 g
- Cables included: SATA
- Screws included: Yes
- Manual: Yes
- Storage temperature (T-T): -20 - 55 °C
- Operating temperature (T-T): 0 - 55 °C
- Operating relative humidity (H-H): 5 - 65%
- Compliance certificates: RoHS
- Harmonized System (HS) code: 84733080
Inc GST
$43.69
