StarTech.com 10/100 Multi Mode Fiber Copper Fast Ethernet Media…
StarTech.com 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km, 100 Mbit/s, 10Base-T, 100BASE-FX, 100Base-TX, IEEE 802.3, IEEE 802.3u, 10,100 Mbit/s, 100 Mbit/s, Full, Half
Click or hover over image to enlarge
Part #: 2951649
Input voltage
100 - 240 V
Output voltage
12 V
Output current
0.2 A
Power consumption (typical)
2.4 W
Power over Ethernet (PoE)
No
Power plug type
Type M
Maximum data transfer rate
100 Mbit/s
Converter input interface
10Base-T, 100BASE-FX, 100Base-TX
Comsys Price
Save $27.22 off RRP
In Stock
32 units available
Four payments of $41.97 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

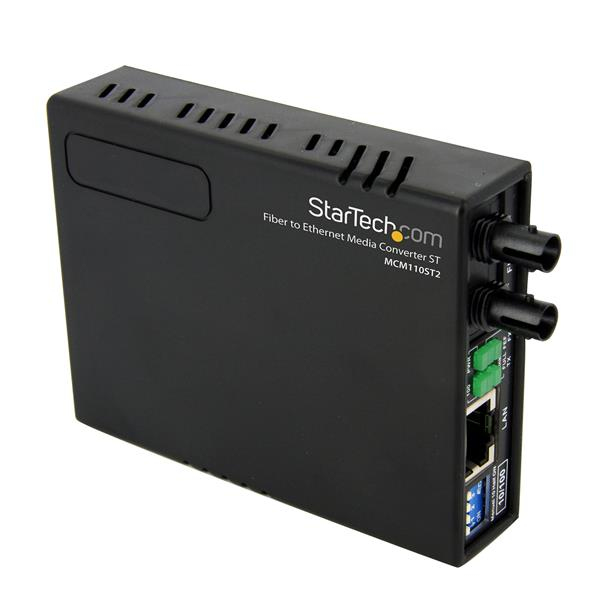

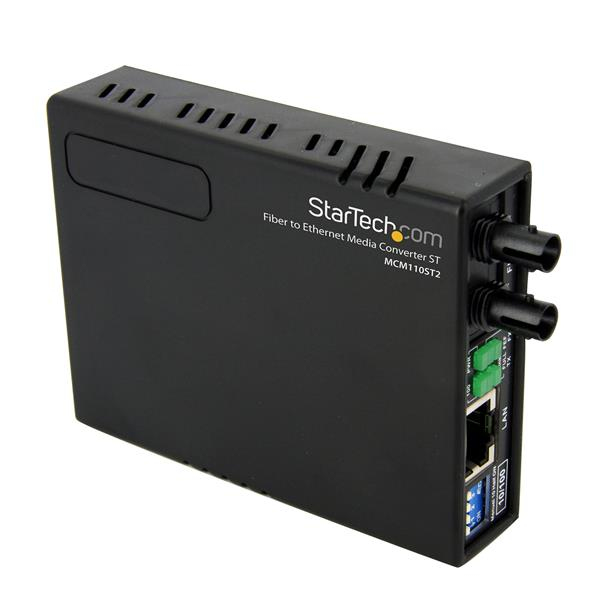

StarTech.com MM FIBER ETHERNET MEDIA CONVERTER ST 2KM
The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.
Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Improve network scalability by increasing the distances between network points by up to 2km (Multi-mode)
- Compact, lightweight enclosure is easily mounted or placed into any location with little to no configuration needed
- Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion
Key features
- Maximum data transfer rate: 100 Mbit/s
- Converter input interface: 10Base-T, 100BASE-FX, 100Base-TX
- Networking standards: IEEE 802.3, IEEE 802.3u
- Ethernet LAN data rates: 10,100 Mbit/s
- Data transfer rate: 100 Mbit/s
- Duplex system: Full, Half
- Maximum transfer distance: 2000 m
- Wavelength: 1310 nm
- Wavelength-division multiplexing (WDM): No
- Sensitivity: -31 dBmW
- Link budget: 11 dB
- Mean time between failures (MTBF): 65000 h
- Internal: No
- LED indicators: Yes
- Housing material: Plastic
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber optic connector: ST
- Input voltage: 100 - 240 V
- Output voltage: 12 V
- Output current: 0.2 A
- Power consumption (typical): 2.4 W
- Power over Ethernet (PoE): No
- Power plug type: Type M
- Width: 75 mm
- Depth: 95 mm
- Height: 20 mm
- Weight: 82 g
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -10 - 70 °C
+ 9 more — see the Specifications tab.
