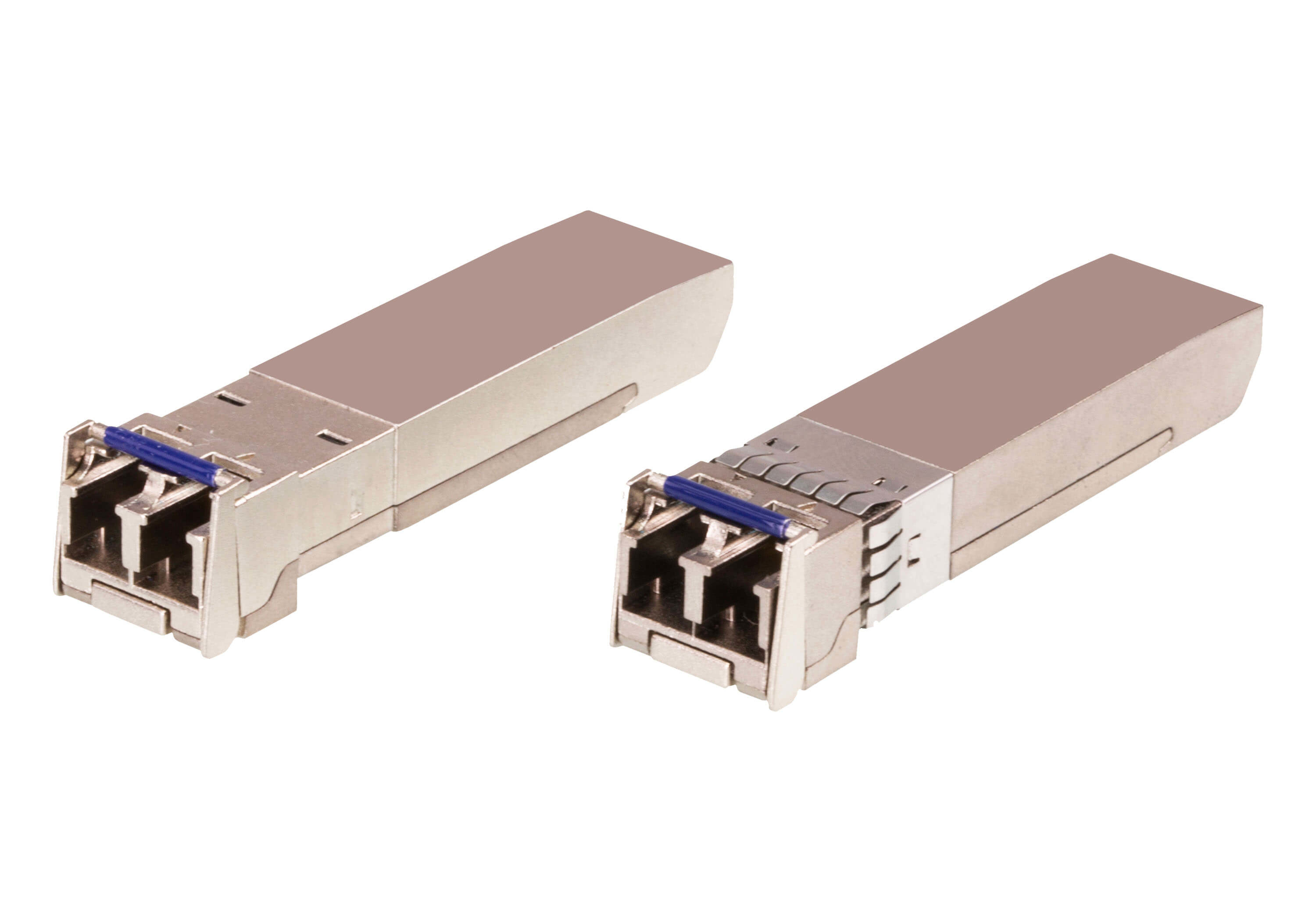

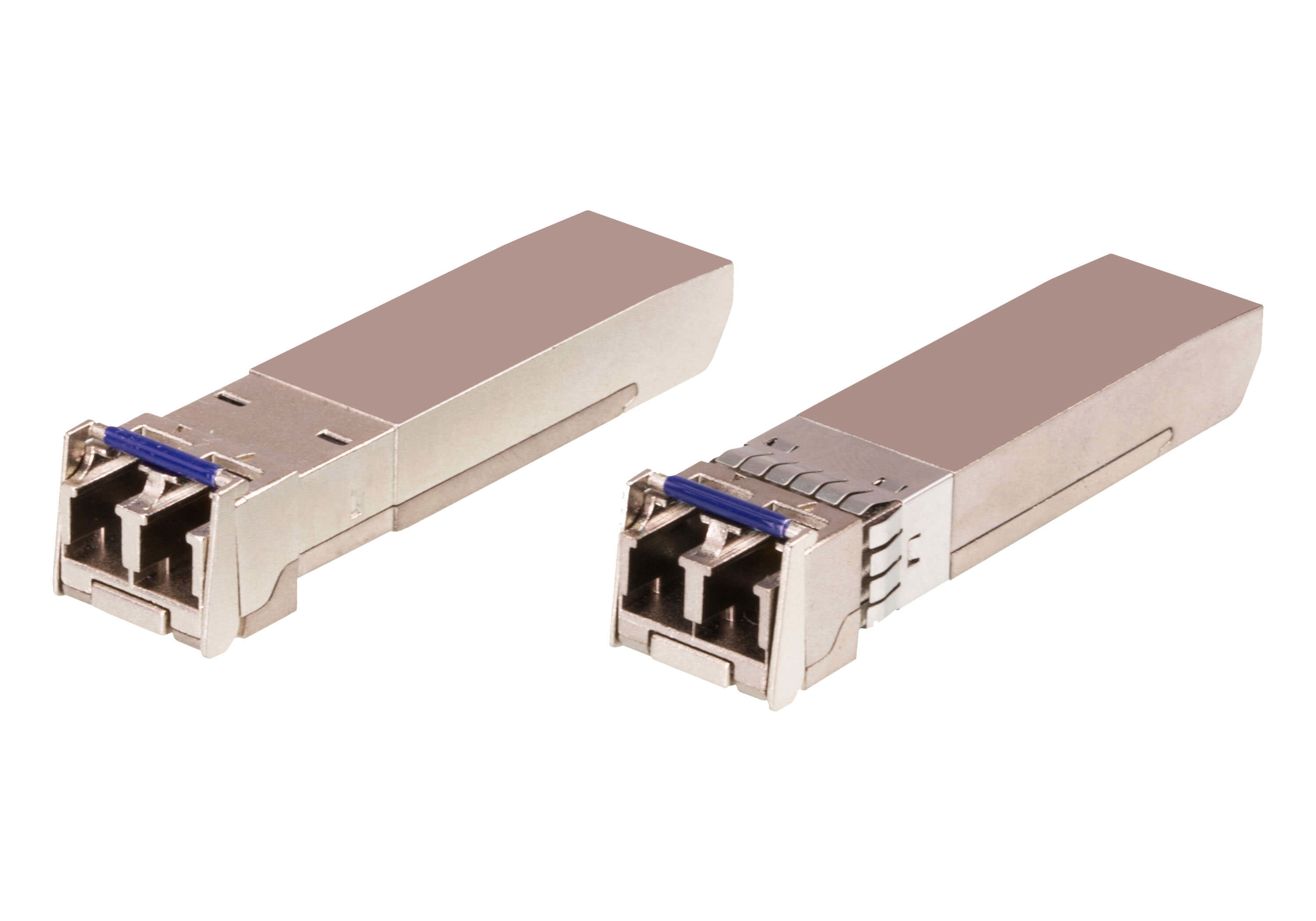

ATEN 10G Single-Mode/10KM Fiber SFP+ Module

ATEN 10G Single-Mode/10KM Fiber SFP+ Module, Fiber optic, 10000 Mbit/s, SFP+, IEEE 802.3ae, Stainless steel, RoHS

ATEN SMF 10G SFP+ TRANSCEIVER MODULE, 10KM, G.652D, LC

Click or hover over image to enlarge

Brand:ATEN
MPN:2A-142G

Part #: 2A-142G

Product colour

Stainless steel

Hot-Plug support

Yes

SFP transceiver type

Fiber optic

Maximum data transfer rate

10000 Mbit/s

Interface type

SFP+

Single-mode fiber (SMF) supported

Yes

Networking standards

IEEE 802.3ae

Digital Diagnostics Monitoring (DDM)

Yes

Returns & Warranty

Comsys Price

$629.04

Save $61.39 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $157.26 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN SMF 10G SFP+ TRANSCEIVER MODULE, 10KM, G.652D, LC

The 2A-142G 10G Single-Mode/10KM Fiber SFP+ Module is designed for use in 10GbE Ethernet environment that allows you to connect a single-mode Gigabit Ethernet network cable to a network switch’s SFP+ port.The 2A-142G provides 10GbE connectivity at distances up to 10 kilometers. As a hotpluggable module with a standard duplex connector for fiber communications, the 2A-142G works with single-mode-fiber (SMF) connections and operates at a nominal wavelength of 1310 nm. This makes the module a cost-effective and highperformance transceiver to significantly increase the span of a compatible network switch.

Key features

  • SFP transceiver type: Fiber optic
  • Maximum data transfer rate: 10000 Mbit/s
  • Interface type: SFP+
  • Single-mode fiber (SMF) supported: Yes
  • Networking standards: IEEE 802.3ae
  • Digital Diagnostics Monitoring (DDM): Yes
  • Product colour: Stainless steel
  • Hot-Plug support: Yes
  • Compliance certificates: RoHS
  • Certification: RoHS
  • Operating temperature (T-T): 0 - 70 °C
  • Storage temperature (T-T): -40 - 85 °C
  • Width: 14.6 mm
  • Depth: 55.9 mm
  • Height: 13 mm
  • Weight: 44 g
  • Quantity per pack: 2 pc(s)
  • Package width: 42 mm
  • Package depth: 124 mm
  • Package height: 129 mm
  • Package weight: 80 g
  • Master (outer) case net weight: 440 g
  • Master (outer) case width: 237 mm
  • Master (outer) case length: 288 mm
  • Harmonized System (HS) code: 85369010
  • Master (outer) case height: 157 mm
  • Master (outer) case gross weight: 1.27 kg
  • Products per master (outer) case: 10 pc(s)
