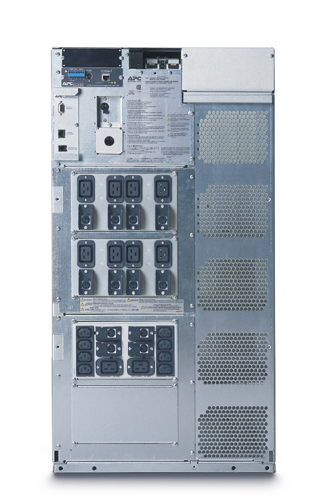

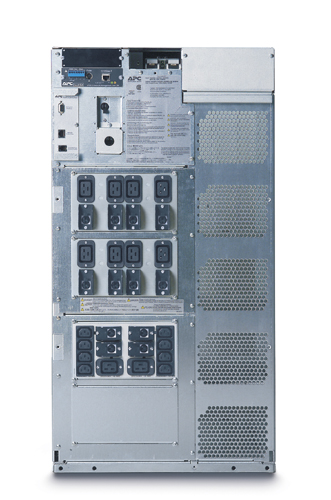

APC Symmetra LX 8kVA Scalable to 16kVA N+1 Rack-mount, 220/230/240V…

Name: APC Symmetra LX 8kVA Scalable to 16kVA N
Brand: APC
SKU: 1066411
Price: 29880.44 NZD
Availability: OutOfStock

APC Symmetra LX 8kVA Scalable to 16kVA N+1 Rack-mount, 220/230/240V or 380/400/415V, 8 kVA, 5600 W, IEC 60320, 7.5 min, 20.2 min, SYBT5

Click or hover over image to enlarge

Brand:APC

MPN:1066411

Part #: 1066411

Compatibility

C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 55024, EN 60950, GOST, IEC 60950, VDE

Typical backup time at full load

7.5 min

Typical backup time at half load

20.2 min

Replacement battery cartridge

SYBT5

Output power capacity

8 kVA

Output power

5600 W

Emergency Power Off (EPO)

Yes

Audible alarm(s)

Yes

Price on Application

Sales will confirm seat count, term, and volume pricing before order.

Out of Stock

Free NZ deliveryover $150·Ships from Auckland, 1–3 days

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Trusted payment methods and encrypted transactions.

Pre-sales and post-sales support from our team.

Local warranty handling and straightforward returns.

APC Symmetra LX 8kVA Scalable to 16kVA N

High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.

Output power capacity: 8 kVA
Output power: 5600 W
Emergency Power Off (EPO): Yes
Audible alarm(s): Yes
AC outlet types: IEC 60320
Typical backup time at full load: 7.5 min
Typical backup time at half load: 20.2 min
Replacement battery cartridge: SYBT5
Compatibility: C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 55024, EN 60950, GOST, IEC 60950, VDE
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Weight: 198.6 kg
Package weight: 239.6 kg
Harmonized System (HS) code: 85078000
Total carbon footprint (kg of CO2e): 30844.17
I/O ports: (1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (10) IEC 320 C19 Hard Wire 3 wire (1PH+N+G) Hard Wire 5-wire (3PH + N + G)
Battery type: Lead-Acid
Interface: DB-9 RS-232, Smart-Slot
Output connections: (1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (10) IEC 320 C19
Input connection type: Hard Wire 3 wire (1PH+N+G) Hard Wire 5-wire (3PH + N + G)
Dimensions (WxDxH): 472 x 688 x 838 mm
Nominal output voltage: 230 V
Output voltage note: 220: 230, 240
Nominal input voltage: 230 V
Package dimensions (WxDxH): 599 x 997 x 1054 mm
