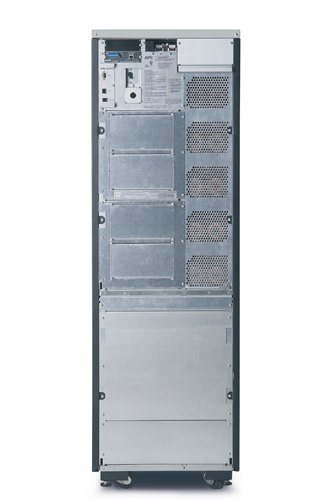

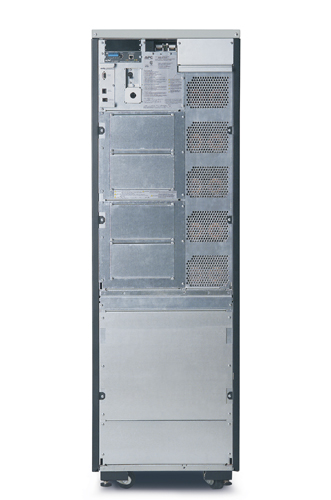

APC Symmetra LX 8kVA Scalable to 16kVA N
APC Symmetra LX 8kVA Scalable to 16kVA N+1 Ext. Run Tower. 220/230/240V or 380/400/415V
- Brand: APC
- Category: UPS Systems
- SKU: 1066333
- MPN: SYA8K16IXR
APC Symmetra LX 8kVA Scalable to 16kVA N+1 Ext. Run Tower,…
APC Symmetra LX 8kVA Scalable to 16kVA N+1 Ext. Run Tower, 220/230/240V or 380/400/415V, 8 kVA, 5600 W, Hard Wire 3-wire (1P + N + E), 57.4 min, 122.6 min, SYBT5
Click or hover over image to enlarge
Typical backup time at full load
57.4 min
Typical backup time at half load
122.6 min
Replacement battery cartridge
SYBT5
Output power capacity
8 kVA
Output power
5600 W
Emergency Power Off (EPO)
Yes
Harmonized System (HS) code
85078000
Total carbon footprint (kg of CO2e)
31415.73
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
Available to Order
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
APC Symmetra LX 8kVA Scalable to 16kVA N
Key features
- Output power capacity: 8 kVA
- Output power: 5600 W
- Emergency Power Off (EPO): Yes
- AC outlet types: Hard Wire 3-wire (1P + N + E)
- Typical backup time at full load: 57.4 min
- Typical backup time at half load: 122.6 min
- Replacement battery cartridge: SYBT5
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -15 - 45 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
- Weight: 474 g
- Harmonized System (HS) code: 85078000
- Total carbon footprint (kg of CO2e): 31415.73
- I/O ports: Available Smart Slot Interface Quantity - 1 Pre-Installed SmartSlot Cards - AP9619
- Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
- Interface: DB-9 RS-232, Smart-Slot
- Output connections: (1) Hard Wire 3-wire (H N + G)
- Input connection type: Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
- Dimensions (WxDxH): 730 x 480 x 1520 mm
- Nominal output voltage: 230 V
- Output voltage note: Configurable for 220: 230 or 240 nominal output voltage
