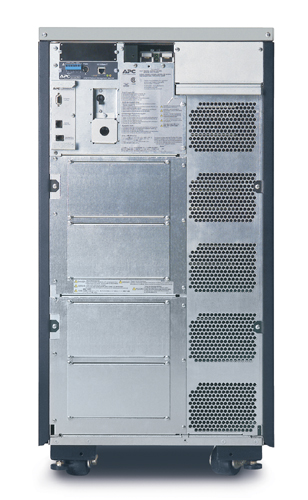

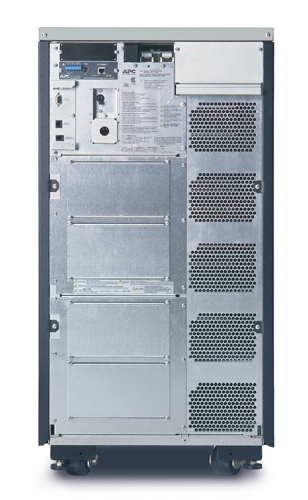

APC (SYA8K16I) SYMMETRA LX 8KVA SCALABLE TO 16KVA NW1 TOWER, 220/230/240V OR 480/400/415V
Power & UPS > UPS Systems
- Brand: APC
- Category: UPS Systems
- SKU: SYA8K16I
- MPN: SYA8K16I
APC Symmetra LX 8kVA Scalable to 16kVA N+1 Tower, 220/230/240V or…
APC Symmetra LX 8kVA Scalable to 16kVA N+1 Tower, 220/230/240V or 480/400/415V, 8 kVA, 5600 W, Hardwire, 7.5 min, 20.2 min, SYBT5
Click or hover over image to enlarge
Product colour
Black
Typical backup time at full load
7.5 min
Typical backup time at half load
20.2 min
Replacement battery cartridge
SYBT5
Output power capacity
8 kVA
Output power
5600 W
Emergency Power Off (EPO)
Yes
Harmonized System (HS) code
85078000
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
Available to Order
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 68 Plunket Avenue, Papatoetoe, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
APC (SYA8K16I) SYMMETRA LX 8KVA SCALABLE TO 16KVA NW1 TOWER, 220/230/240V OR 480/400/415V
Key features
- Output power capacity: 8 kVA
- Output power: 5600 W
- Emergency Power Off (EPO): Yes
- AC outlet types: Hardwire
- Typical backup time at full load: 7.5 min
- Typical backup time at half load: 20.2 min
- Replacement battery cartridge: SYBT5
- Product colour: Black
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -15 - 45 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
- Weight: 220 kg
- Harmonized System (HS) code: 85078000
- Total carbon footprint (kg of CO2e): 27705.16
- I/O ports: Available Smart Slot Interface Quantity - 1 Pre-Installed SmartSlot Cards - AP9619
- Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
- Interface: DB-9 RS-232, Smart-Slot
- Output connections: (1) Hard Wire 3-wire (H N + G)
- Input connection type: Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
- Dimensions (WxDxH): 480 x 730 x 940 mm
- Nominal output voltage: 230 V
- Output voltage note: Configurable for 220: 230 or 240 nominal output voltage
Price on Application
