APC Symmetra LX 16kVA Scalable to 16kVA N+1 Rack-mount, 220/230/240V…

APC Symmetra LX 16kVA Scalable to 16kVA N+1 Rack-mount, 220/230/240V or 380/400/415V, 16 kVA, 11200 W, IEC 60320, 7.5 min, 20.3 min, SYBT5

APC (SYA16K16RMI) SYMMETRA LX 16KVA > 16KVA NW1 RACK-MOUNT, 220/230/240V OR 380/400/415V

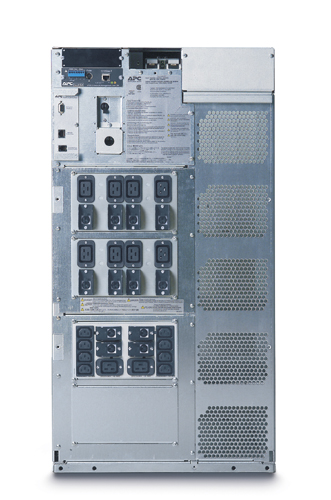

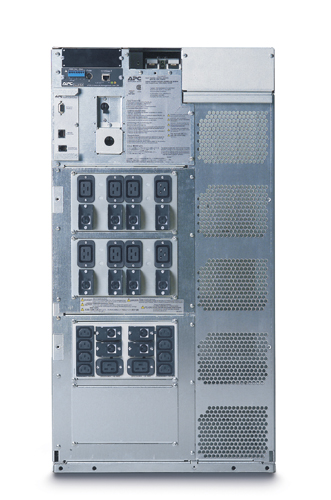

Click or hover over image to enlarge

Brand:APC
MPN:SYA16K16RMI

Part #: SYA16K16RMI

Compatibility

C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 55024, EN 60950, GOST, IEC 60950, VDE

Typical backup time at full load

7.5 min

Typical backup time at half load

20.3 min

Replacement battery cartridge

SYBT5

Output power capacity

16 kVA

Output power

11200 W

Emergency Power Off (EPO)

Yes

Audible alarm(s)

Yes

Returns & Warranty

Price on Application

Contact us for pricing

Sales will confirm seat count, term, and volume pricing before order.

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

APC (SYA16K16RMI) SYMMETRA LX 16KVA > 16KVA NW1 RACK-MOUNT, 220/230/240V OR 380/400/415V

High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.

Key features

  • Output power capacity: 16 kVA
  • Output power: 11200 W
  • Emergency Power Off (EPO): Yes
  • Audible alarm(s): Yes
  • AC outlet types: IEC 60320
  • Typical backup time at full load: 7.5 min
  • Typical backup time at half load: 20.3 min
  • Replacement battery cartridge: SYBT5
  • Compatibility: C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 55024, EN 60950, GOST, IEC 60950, VDE
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -15 - 45 °C
  • Operating relative humidity (H-H): 0 - 95%
  • Storage relative humidity (H-H): 0 - 95%
  • Operating altitude: 0 - 3000 m
  • Weight: 286.8 kg
  • Package weight: 340.4 kg
  • Harmonized System (HS) code: 85078000
  • Total carbon footprint (kg of CO2e): 53964.36
  • I/O ports: (1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (10) IEC 320 C19 Hard Wire 3 wire (1PH+N+G) Hard Wire 5-wire (3PH + N + G)
  • Battery type: Lead-Acid
  • Interface: DB-9 RS-232, Smart-Slot
  • Output connections: (1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (10) IEC 320 C19
  • Input connection type: Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
  • Dimensions (WxDxH): 472 x 688 x 838 mm
  • Output voltage note: 220: 230, 240
  • Nominal input voltage: 230 V
  • Package dimensions (WxDxH): 599 x 997 x 1054 mm
