APC Smart-UPS On-Line, 8kVA/8kW, Tower, 230V 3:1 and 1:1, 6x C13+4x…

APC Smart-UPS On-Line, 8kVA/8kW, Tower, 230V 3:1 and 1:1, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit, Double-conversion (Online), 8 kVA, 8000 W, Sine, 100 V, 476 V

APC Smart-UPS SRT 8000VA 230V

Click or hover over image to enlarge

Brand:APC
MPN:2690209

Part #: 2690209

Form factor

Rackmount/Tower

Product colour

Black

Display type

LCD

LED indicators

Status

International Protection (IP) code

IP20

Battery technology

Sealed Lead Acid (VRLA)

Battery capacity

1728 VAh

Battery life (max)

5 year(s)

Returns & Warranty

Comsys Price

$15,773.39

Save $1,084.01 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

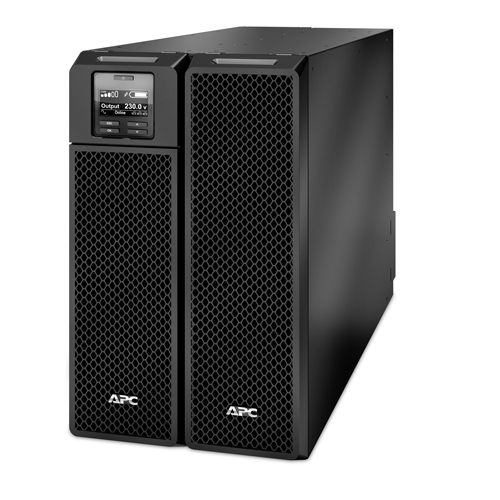

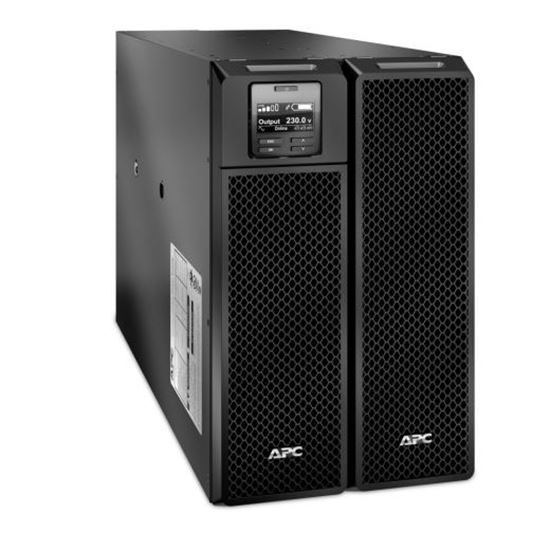

APC Smart-UPS SRT 8000VA 230V

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 8kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E)/5-wire(3P+N+E) input, 6x IEC 320 C13, 4x IEC 320 C19 outlets, and 3x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.

Key features

  • UPS topology: Double-conversion (Online)
  • Output power capacity: 8 kVA
  • Output power: 8000 W
  • Waveform: Sine
  • Input operation voltage (min): 100 V
  • Input operation voltage (max): 476 V
  • Input frequency: 40 - 70 Hz
  • Output operation voltage (min): 220 V
  • Output operation voltage (max): 240 V
  • Output frequency regulation: 50/60 Hz
  • Surge energy rating: 480 J
  • Number of output phases: 1
  • Crest factor: 3:1
  • Emergency Power Off (EPO): Yes
  • Output voltage Total Harmonic Distortion (THD): 3%
  • Noise level: 55 dB
  • Surge protection: Yes
  • Audible alarm(s): Yes
  • Auto-restart: Yes
  • AC outlet types: C13 coupler, C19 coupler
  • Power plug: Hardwire
  • AC outlets quantity: 10 AC outlet(s)
  • Number of output IEC jumpers: 3
  • USB port: Yes
  • Serial interface: Yes
  • Serial interface type: RJ-45
  • SmartSlot: Yes
  • SmartConnect port: No
  • Battery technology: Sealed Lead Acid (VRLA)
  • Battery capacity: 1728 VAh

+ 37 more — see the Specifications tab.
