APC Smart-UPS On-Line, 10kVA/10kW, Rackmount 6U, 230V/400V, 4x 32A…

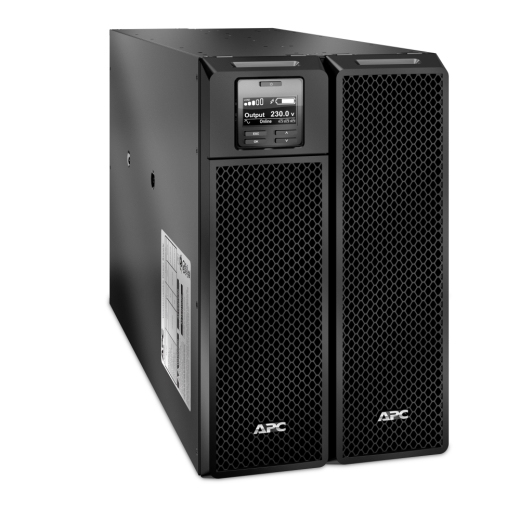

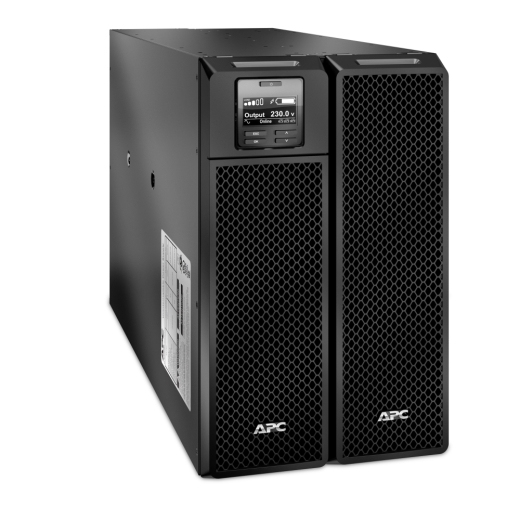

APC Smart-UPS On-Line, 10kVA/10kW, Rackmount 6U, 230V/400V, 4x 32A IEC outlets, Network Card+SmartSlot, Extended runtime, W/ custom PDU, W/ rail kit, Basic, Three-phase, Vertical, Black, LCD, 10 AC outlet(s)

APC Smart-UPS SRT 10000VA RM 230V Custo

Click or hover over image to enlarge

Brand:APC
MPN:4343572

Part #: 4343572


Nominal input voltage

230, 400 3PH

AC input frequency

40-70 Hz

Maximum current

47 A

Nominal output voltage

230 V

Output voltage

220/230/240 V

Maximum input current per phase

54 A

Maximum total current draw per phase

18 A

Maximum power

10000 W


Returns & Warranty

Comsys Price

$18,418.39

Save $1,284.01 off RRP

Out of Stock

Contact us for ETA or alternatives

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

APC Smart-UPS SRT 10000VA RM 230V Custo

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line 6U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire input and hard wire 3-wire/5-wire output connections and 4x IEC 32A outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Key features

  • PDU types: Basic
  • Type: Three-phase
  • Mounting: Vertical
  • Product colour: Black
  • Display: LCD
  • On/off switch: Yes
  • AC outlets quantity: 10 AC outlet(s)
  • AC outlet types: C13 coupler, C14 coupler
  • Ethernet LAN (RJ-45) ports: 2
  • USB ports quantity: 1
  • LED indicators: Power, Status
  • Nominal input voltage: 230, 400 3PH
  • AC input frequency: 40-70 Hz
  • Maximum current: 47 A
  • Nominal output voltage: 230 V
  • Output voltage: 220/230/240 V
  • Maximum input current per phase: 54 A
  • Maximum total current draw per phase: 18 A
  • Maximum power: 10000 W
  • Surge energy rating: 480 J
  • Surge protection: Yes
  • Compliance certificates: RoHS
  • Certification: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -15 - 45 °C
  • Operating relative humidity (H-H): 0 - 95%
  • Storage relative humidity (H-H): 0 - 95%
  • Operating altitude: 0 - 3048 m
  • Non-operating altitude: 0 - 15240 m
  • Operating temperature (T-T): 32 - 104 °F

+ 13 more — see the Specifications tab.
