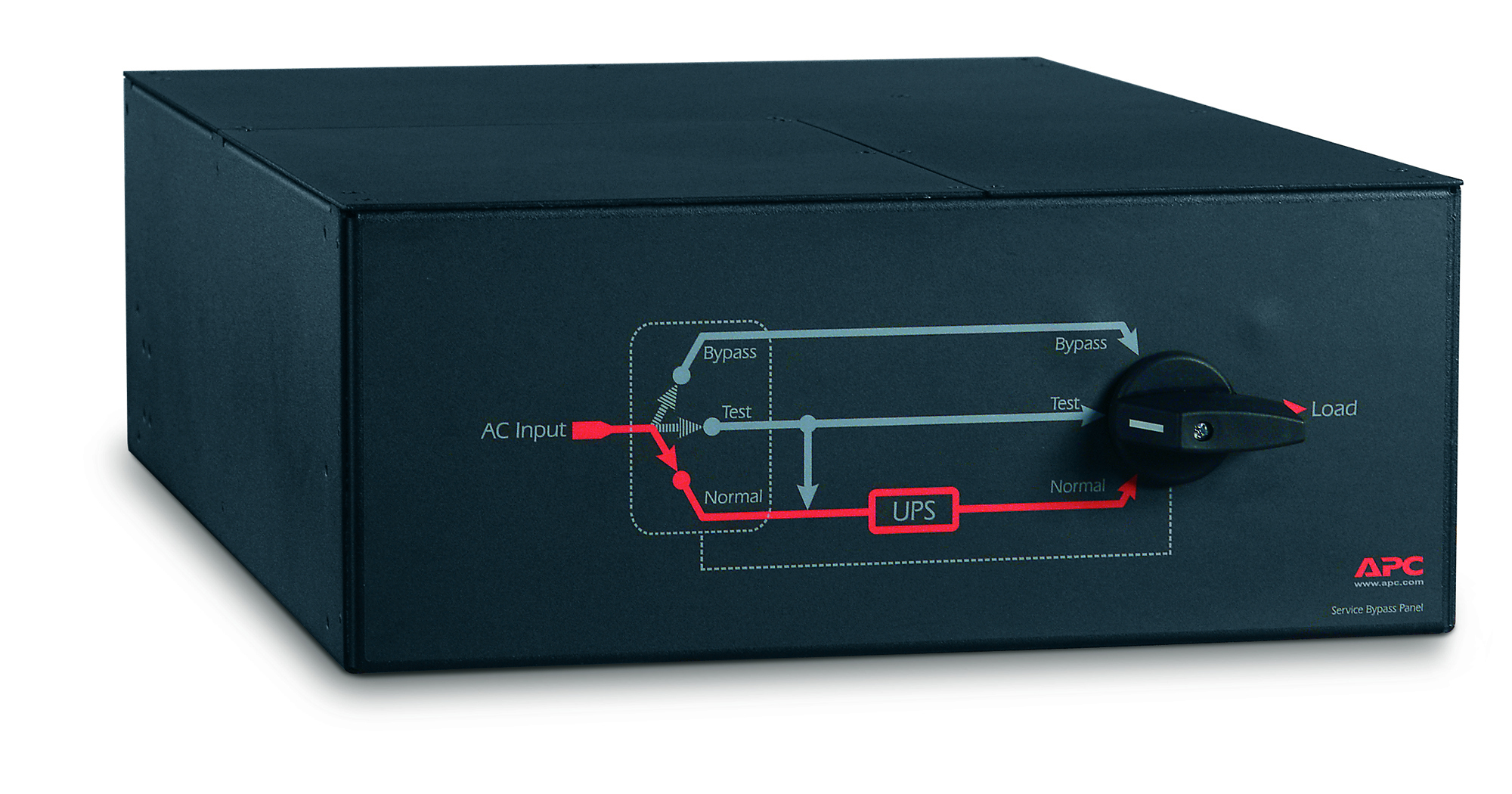

APC SBP16KRMI4U UPS accessory
APC SBP16KRMI4U, Bypass switch, Rack-mount, Black, 4U, CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778, 20000 VA
Click or hover over image to enlarge
Brand:APC
MPN:1060502
Part #: 1060502
Load capacity
20000 VA
Input voltage
230 V
Input frequency
50/60 Hz
Number of phases
1
Maximum total current draw per phase
100 A
Product type
Bypass switch
Mounting type
Rack-mount
Product colour
Black
Comsys Price
$4,769.04
Save $328.01 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

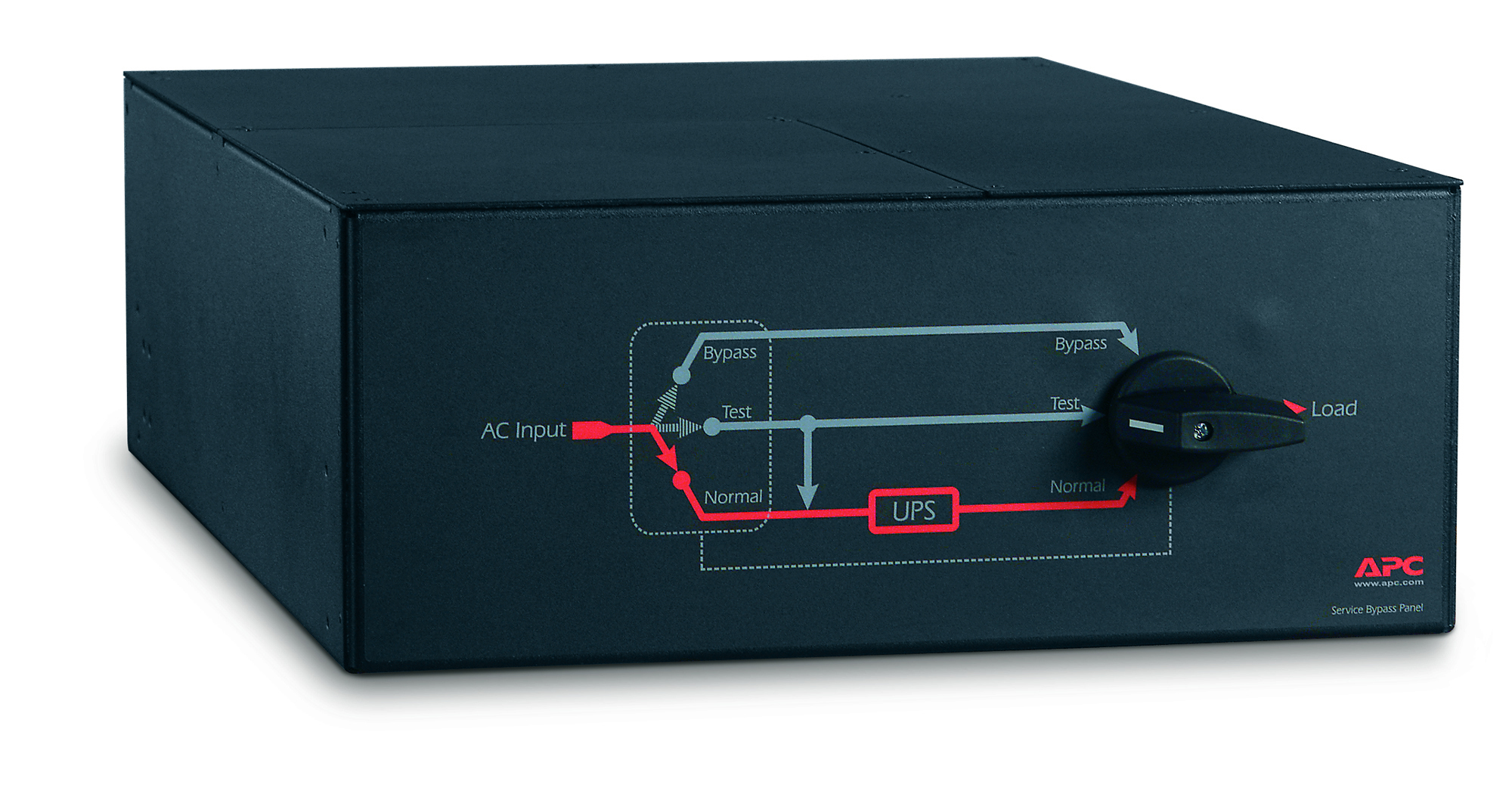

APC Service Bypass Panel- 230V. 100A. MB
- 19 inch Rack-Mountable
- Quick Transfer Rate
- Wrap Around System Bypass
- Quick Transfer Rate
- Wrap Around System Bypass
Key features
- Product type: Bypass switch
- Mounting type: Rack-mount
- Product colour: Black
- Rack capacity: 4U
- Compatibility: CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778
- Load capacity: 20000 VA
- Input voltage: 230 V
- Input frequency: 50/60 Hz
- Number of phases: 1
- Maximum total current draw per phase: 100 A
- Compliance certificates: RoHS
- Certification: CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778
- Operating temperature (T-T): -20 - 45 °C
- Storage temperature (T-T): -40 - 65 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 4500 m
- Non-operating altitude: 0 - 15000 m
- Width: 432 mm
- Depth: 673 mm
- Height: 178 mm
- Weight: 21.8 kg
- Package width: 610 mm
- Package depth: 991 mm
- Package height: 305 mm
- Package weight: 31.8 kg
- Harmonized System (HS) code: 85079080
