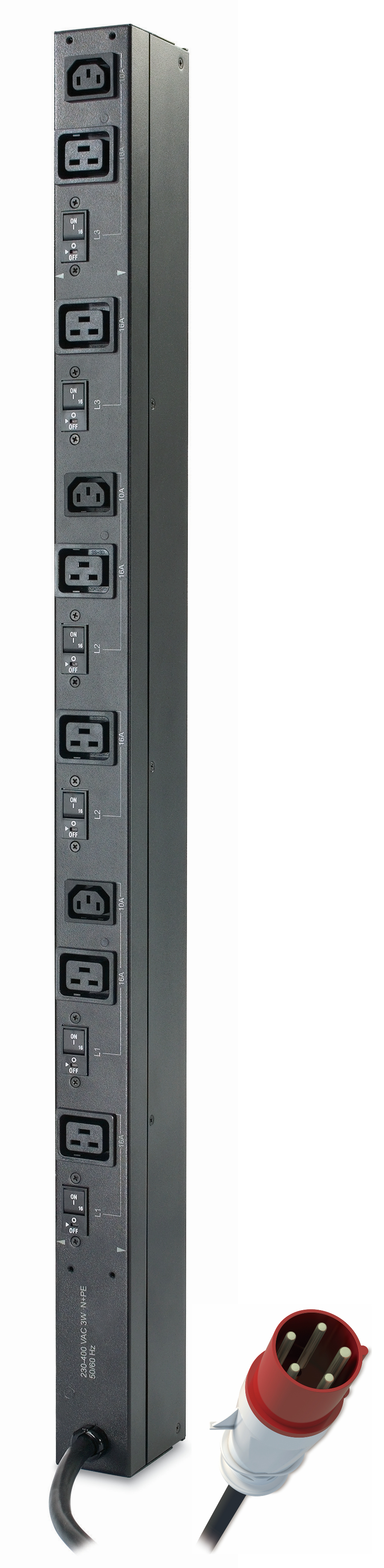

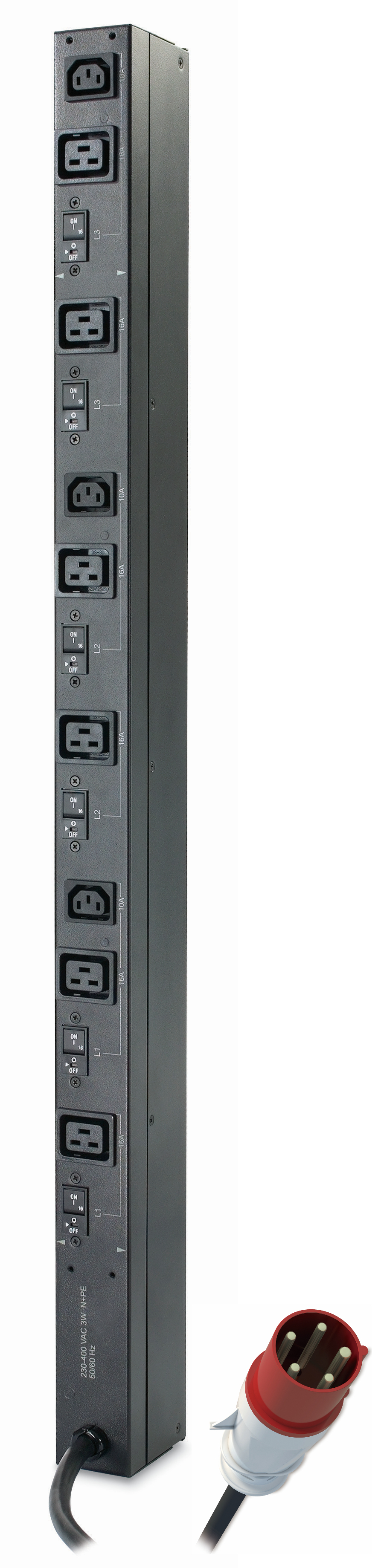

APC Rack PDU. Basic. Zero U. 22kW. 230V. (6)
RACK PDU. BASIC. ZERO U. 22KW. 230V. (6) C19 (3) C13. HIGH TEMP
- Brand: APC
- Category: UPS Systems
- SKU: 1542543
- MPN: AP7555A
APC Rack PDU Basic Zero U power distribution unit (PDU) 9 AC…
APC Rack PDU Basic Zero U, Basic, 0U, Vertical, Black, 9 AC outlet(s), C13 coupler, C19 coupler
Click or hover over image to enlarge
Nominal input voltage
400 V
AC input frequency
47/63 Hz
Nominal output voltage
230 V
Load capacity
22080 VA
Maximum input current per phase
32 A
Maximum total current draw per phase
32 A
Maximum power
22000 W
PDU types
Basic
Comsys Price
Save $285.01 off RRP
Available to Order
4 payments of $478.69Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
APC Rack PDU. Basic. Zero U. 22kW. 230V. (6)
Includes: Installation guide, Toolless Mounting Kit.
Key features
- PDU types: Basic
- Rack capacity: 0U
- Mounting: Vertical
- Product colour: Black
- AC outlets quantity: 9 AC outlet(s)
- AC outlet types: C13 coupler, C19 coupler
- Input connection type: IEC 309 32A 3P+N+PE
- Output connections: - (3) IEC 320 C13 - (6) IEC 320 C19
- Cable length: 1.83 m
- Nominal input voltage: 400 V
- AC input frequency: 47/63 Hz
- Nominal output voltage: 230 V
- Load capacity: 22080 VA
- Maximum input current per phase: 32 A
- Maximum total current draw per phase: 32 A
- Maximum power: 22000 W
- Operating temperature (T-T): -5 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Width: 55 mm
- Depth: 88 mm
- Height: 927 mm
- Weight: 4.75 kg
- Package weight: 6.25 kg
- Package width: 286 mm
- Package depth: 70 mm
- Package height: 1054 mm
Inc GST
$1,914.74
