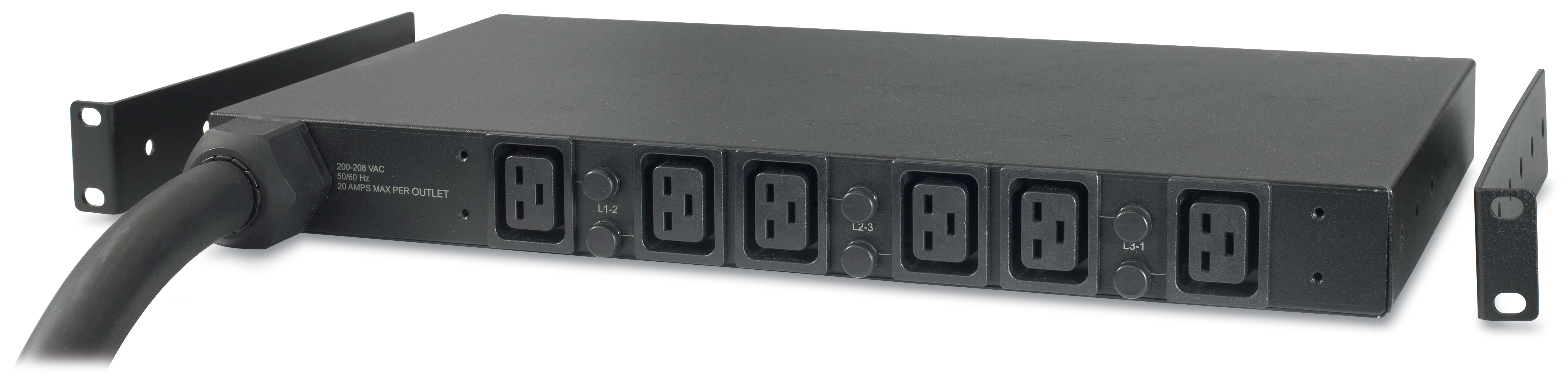

APC Basic Rack PDU AP7526 power distribution unit (PDU) 6 AC…
APC Basic Rack PDU AP7526, Basic, 1U, Horizontal, Black, 6 AC outlet(s), C19 coupler
Click or hover over image to enlarge
Brand:APC
MPN:1035642
Part #: 1035642
Nominal input voltage
400 V
Nominal output voltage
230 V
Load capacity
22080 VA
Maximum input current per phase
32 A
Maximum total current draw per phase
32 A
Maximum power
22000 W
PDU types
Basic
Rack capacity
1U
Comsys Price
$1,775.59
Save $131.01 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Four payments of $443.90 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

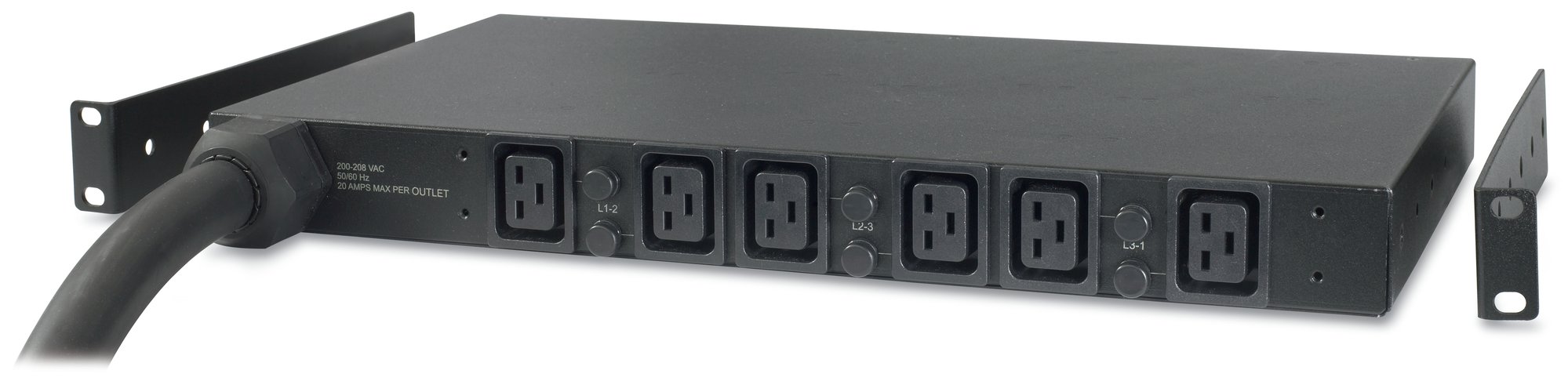

APC Rack PDU. Basic. 1U. 22KW. 400V. (6) C19
Features:
-High Power Density.
-Horizontal mounting capability.
-Low Cost Power Distribution.
-High Power Density.
-Horizontal mounting capability.
-Low Cost Power Distribution.
Key features
- PDU types: Basic
- Rack capacity: 1U
- Mounting: Horizontal
- Product colour: Black
- AC outlets quantity: 6 AC outlet(s)
- AC outlet types: C19 coupler
- Input connection type: IEC 309 32A 3P+N+PE
- Output connections: IEC 320 C19
- Cable length: 2.44 m
- Nominal input voltage: 400 V
- Nominal output voltage: 230 V
- Load capacity: 22080 VA
- Maximum input current per phase: 32 A
- Maximum total current draw per phase: 32 A
- Maximum power: 22000 W
- Certification: CE,GOST,VDE
- Operating temperature (T-T): -5 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Width: 437 mm
- Depth: 254 mm
- Height: 44 mm
- Weight: 4.84 kg
- Package weight: 6.98 kg
- Package width: 559 mm
- Package depth: 502 mm
- Package height: 241 mm
