APC NetShelter Metered Rack PDU, 0U, 3PH, 22kW 230V 32A or 17.3kW…
APC NetShelter Metered Rack PDU, 0U, 3PH, 22kW 230V 32A or 17.3kW 230V 24A, x30 C13 and x12 C19 outlets, IEC 309 3P+N+PE cord, Metered, 0U, Vertical, Black, 42 AC outlet(s), C13 coupler, C19 coupler

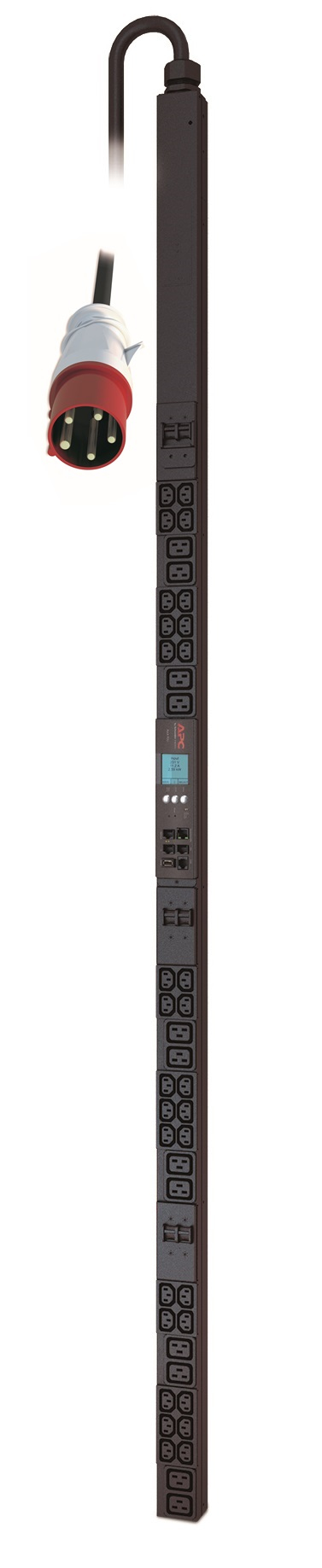

Click or hover over image to enlarge
Part #: 2060551
Nominal input voltage
400 V
AC input frequency
50 - 60 Hz
Maximum current
32 A
Nominal output voltage
230 V
Load capacity
22080 VA
Maximum input current per phase
32 A
Power protection features
Overload
Maximum power
22000 W
Comsys Price
Save $310.01 off RRP
Out of Stock
Contact us for ETA or alternatives
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

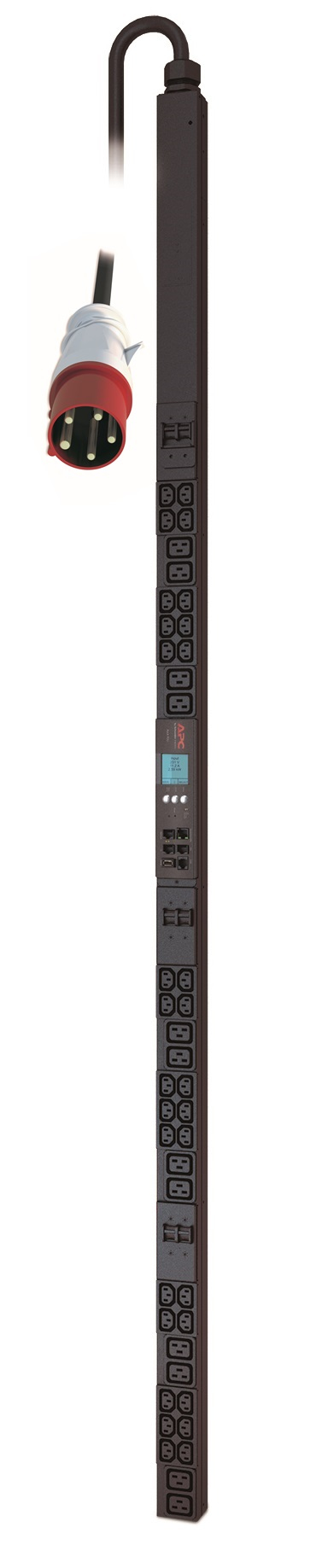

APC Rack PDU 2G. Metered. ZeroU. 22.0kW(32A)
Key features
- PDU types: Metered
- Rack capacity: 0U
- Mounting: Vertical
- Product colour: Black
- AC outlets quantity: 42 AC outlet(s)
- Power plug: IEC309
- AC outlet types: C13 coupler, C19 coupler
- Output connections: 30 x IEC 320 C13 12 x IEC 320 C19
- LED indicators: Yes
- Cable length: 1.83 m
- Monitoring: Current, Power, Voltage
- Nominal input voltage: 400 V
- AC input frequency: 50 - 60 Hz
- Maximum current: 32 A
- Nominal output voltage: 230 V
- Load capacity: 22080 VA
- Maximum input current per phase: 32 A
- Power protection features: Overload
- Maximum power: 22000 W
- Compliance certificates: RoHS
- Certification: EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE REACH: No SVHCs
- Operating temperature (T-T): 0 - 55 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 0 - 15000 m
- Width: 56 mm
- Depth: 51 mm
- Height: 1829 mm
+ 6 more — see the Specifications tab.
