APC Rack PDU 2G. Metered. ZeroU. 11kW. 230V.

RACK PDU 2G. METERED. ZEROU. 11KW. 230V. (36) C13 (6) C19

  • Brand: APC
  • Category: UPS Systems
  • SKU: 1531120
  • MPN: AP8881

APC AP8881 power distribution unit (PDU) 42 AC outlet(s) 0U Black

APC AP8881, Metered, 0U, Vertical, Black, 42 AC outlet(s), C13 coupler, C19 coupler

APC Rack PDU 2G. Metered. ZeroU. 11kW. 230V. — APC — Power & UPS > UPS Systems

Click or hover over image to enlarge

Brand:APC
MPN:1531120

Part #: 1531120

Search this part on Google

Nominal input voltage

400 V

AC input frequency

50 - 60 Hz

Maximum current

16 A

Nominal output voltage

230 V

Load capacity

11040 VA

Maximum input current per phase

16 A

Maximum total current draw per phase

16 A

Maximum power

11000 W

Returns & Warranty

Comsys Price

$2,769.19
On Sale

Save $417.01 off RRP

Available to Order

NZ-wide deliveryShips from Auckland · 1–3 days
1
Afterpay4 payments of $692.30
100% NZ Owned & OperatedCall 0800 664 554

Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
Afterpay — pay it in 4 interest-free instalments
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

APC Rack PDU 2G. Metered. ZeroU. 11kW. 230V.

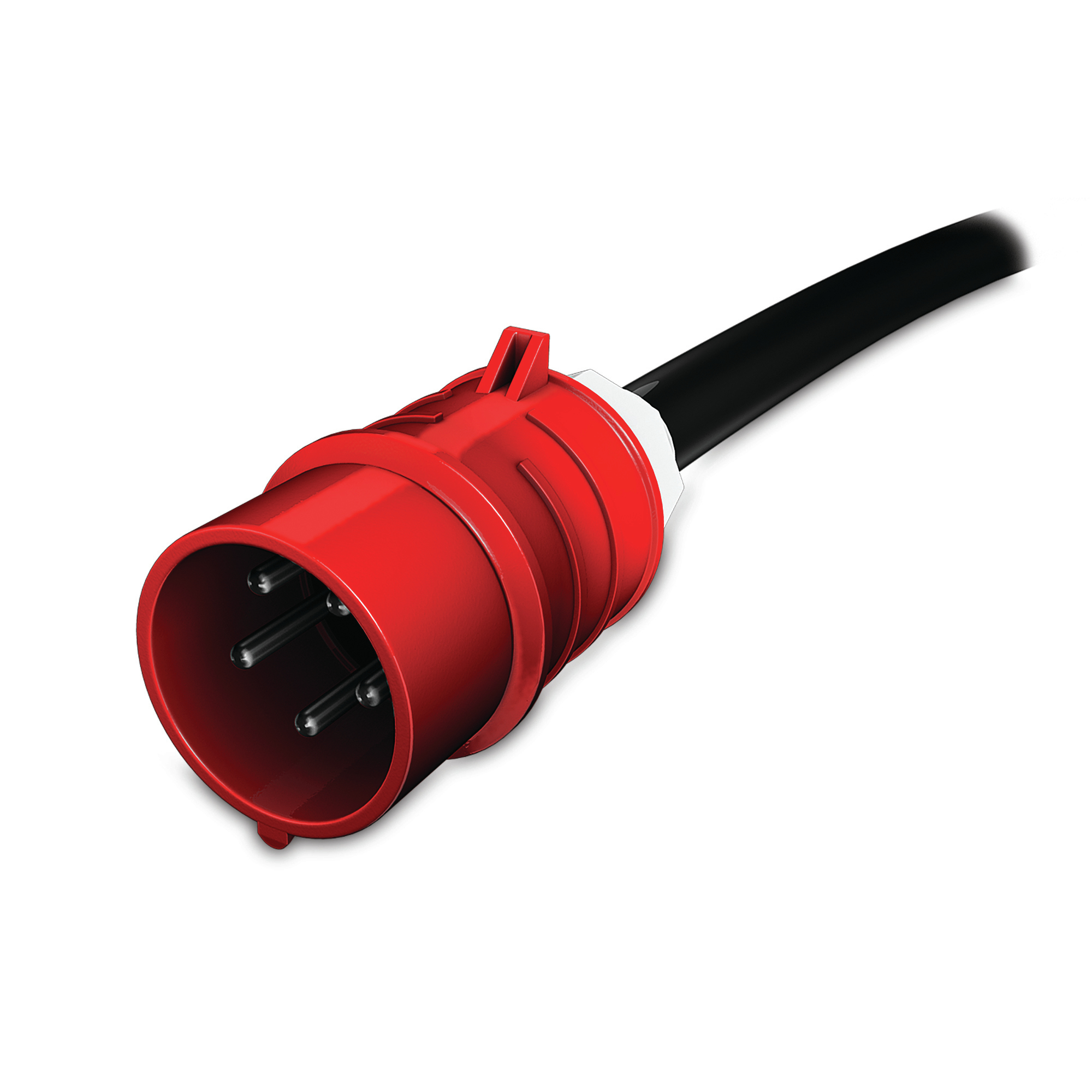

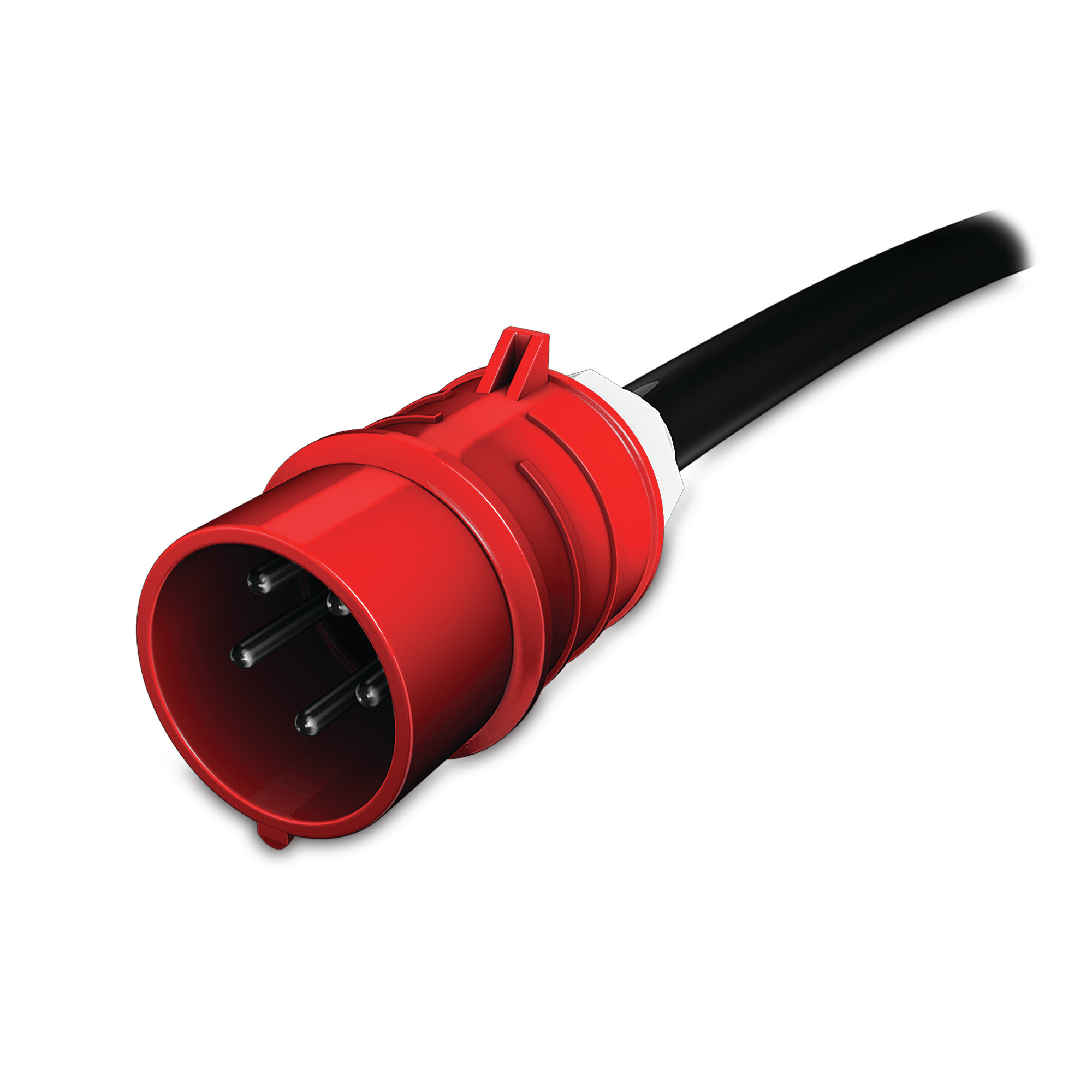

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This 3 phase PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU via IEC 309 3P+N+PE plug with a 1.8m (16 ft) cord while power comes out at 230 volts through (36) C13 and (6) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.

Key features

  • PDU types: Metered
  • Rack capacity: 0U
  • Mounting: Vertical
  • Product colour: Black
  • AC outlets quantity: 42 AC outlet(s)
  • Power plug: IEC309
  • AC outlet types: C13 coupler, C19 coupler
  • Input connection type: IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E
  • Output connections: 36x IEC 320 C13 6x IEC 320 C19
  • Cable length: 1.83 m
  • Monitoring: Current, Power, Voltage
  • Nominal input voltage: 400 V
  • AC input frequency: 50 - 60 Hz
  • Maximum current: 16 A
  • Nominal output voltage: 230 V
  • Load capacity: 11040 VA
  • Maximum input current per phase: 16 A
  • Maximum total current draw per phase: 16 A
  • Maximum power: 11000 W
  • Certification: CSA C22.2 No. 60950,IEC 60950,UL 60950-1,VDE RoHS, REACH
  • Operating temperature (T-T): 5 - 45 °C
  • Storage temperature (T-T): -25 - 65 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage relative humidity (H-H): 5 - 95%
  • Width: 56 mm
  • Depth: 44 mm
  • Height: 1791 mm
  • Weight: 6.38 kg
  • Total carbon footprint (kg of CO2e): 41106.13
