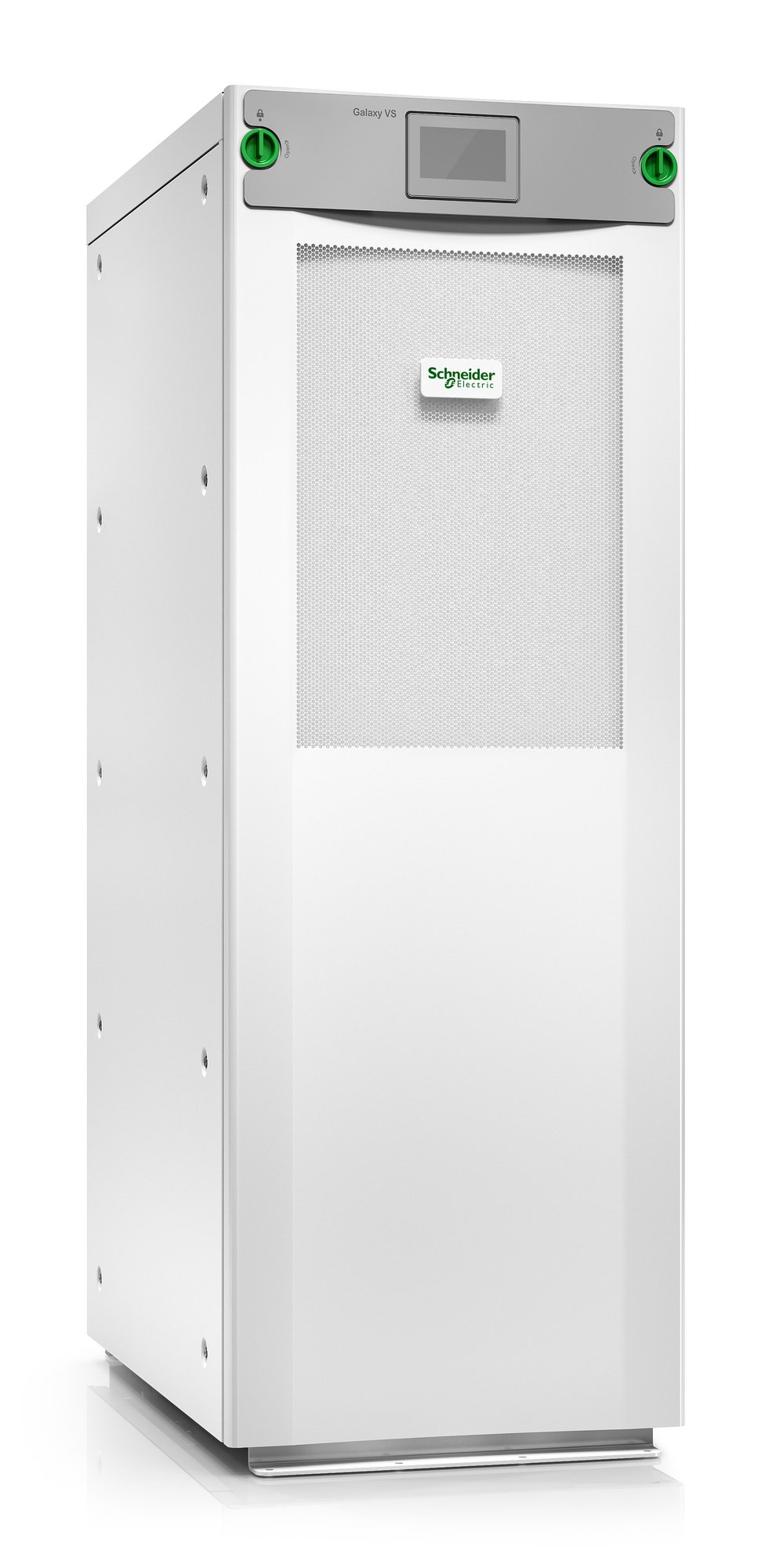

APC GALAXY VS UPS 10KW 400V, 1 INTERNAL 9AH SMART MODULAR BATTERY STRING, EXP. TO 4, - KIT
GALAXY VS UPS 10KW 400V, 1 INTERNAL 9AH SMART MODULAR BATTERY STRING, EXP. TO 4, - KIT
- Brand: APC
- Category: UPS Systems
- SKU: GVSUPS10KB4HS-KIT
- MPN: GVSUPS10KB4HS
APC GVSUPS10KB4HS uninterruptible power supply (UPS)…
APC GVSUPS10KB4HS, Double-conversion (Online), 10 kVA, 10000 W, Sine, 340 V, 460 V
Click or hover over image to enlarge
Form factor
Tower
Product colour
White
Display type
LCD
Battery technology
Sealed Lead Acid (VRLA)
Battery voltage
480 V
UPS topology
Double-conversion (Online)
Output power capacity
10 kVA
Output power
10000 W
Comsys Price
Save $2,383.01 off RRP
Available On Order
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
APC GALAXY VS UPS 10KW 400V, 1 INTERNAL 9AH SMART MODULAR BATTERY STRING, EXP. TO 4, - KIT
- Galaxy VS UPS 10kW 400V, 1 internal 9Ah smart modular battery string, expandable to 4, Start-up 5x8
- Highly efficient, easy-to-deploy 10kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and 1 smart high-capacity modular battery string, expandable to 4 strings for extended runtime. Runtime charts available in the Documents tab.
- Includes: Battery modules ship installed, Dust filter, EcoStruxure Ready ((UPS)), Installation guide, Integrated network management, Power modules ship installed, Start-Up Service
Key features
- UPS topology: Double-conversion (Online)
- Output power capacity: 10 kVA
- Output power: 10000 W
- Waveform: Sine
- Input operation voltage (min): 340 V
- Input operation voltage (max): 460 V
- Input frequency: 40/70 Hz
- Output operation voltage (min): 380 V
- Output operation voltage (max): 415 V
- Output frequency: 50/60 Hz
- Maximum current: 18 A
- Number of input phases: 3
- Number of output phases: 3
- Input power factor: 0.99
- Crest factor: 2.5:1
- ECO mode: Yes
- Output voltage Total Harmonic Distortion (THD): 3%
- Input current Total Harmonic Distortion (THD): 3%
- Noise level: 55 dB
- Power protection features: Overload, Short circuit
- Audible alarm(s): Yes
- AC outlet types: Hard Wire 4-wire (3PH + G), Hard Wire 5-wire (3PH + N + G)
- SmartSlot: Yes
- SmartConnect port: No
- Battery technology: Sealed Lead Acid (VRLA)
- Battery voltage: 480 V
- Form factor: Tower
- Product colour: White
- Display type: LCD
- Operating temperature (T-T): 0 - 40 °C
+ 17 more — see the Specifications tab.
