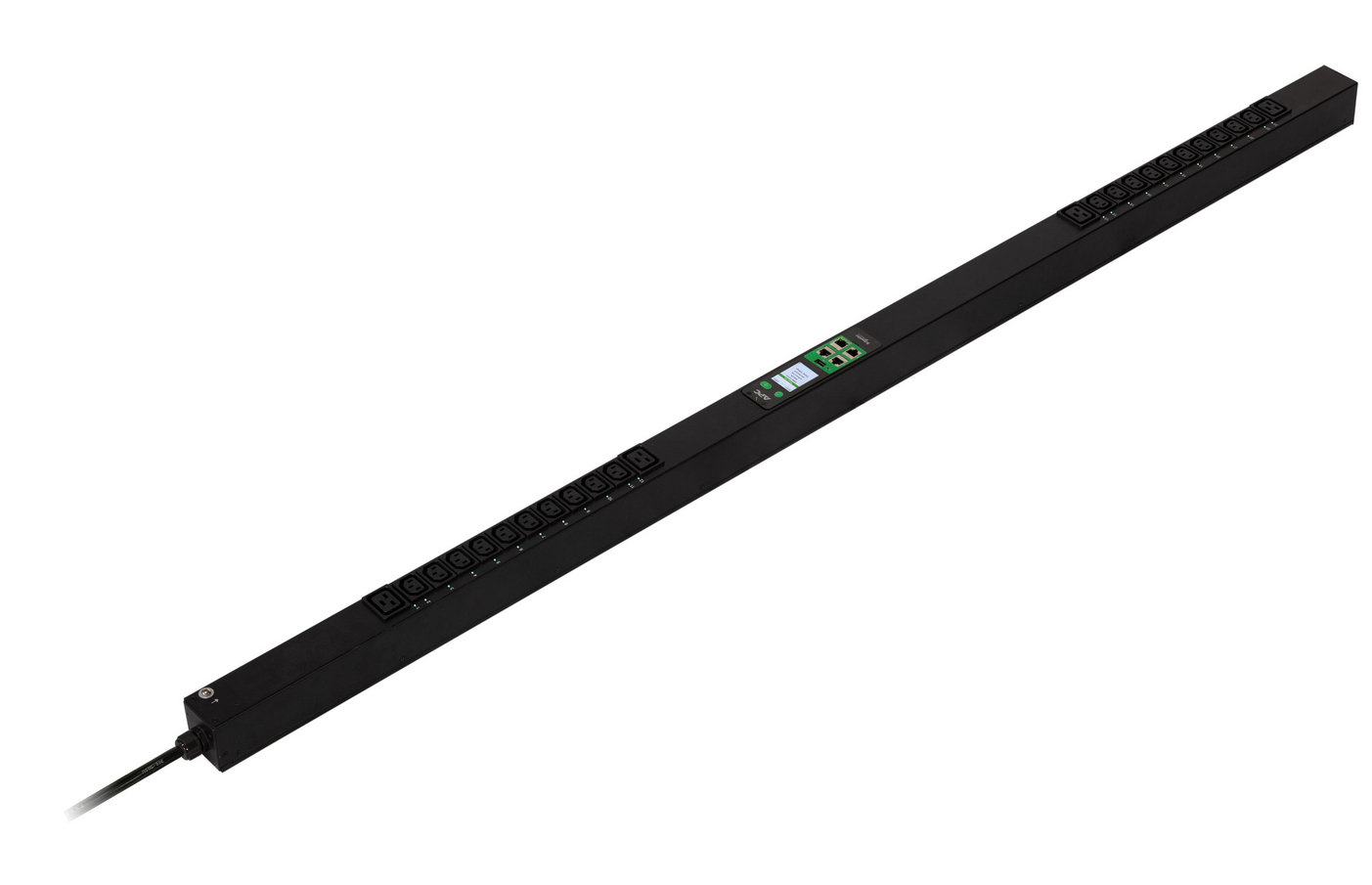

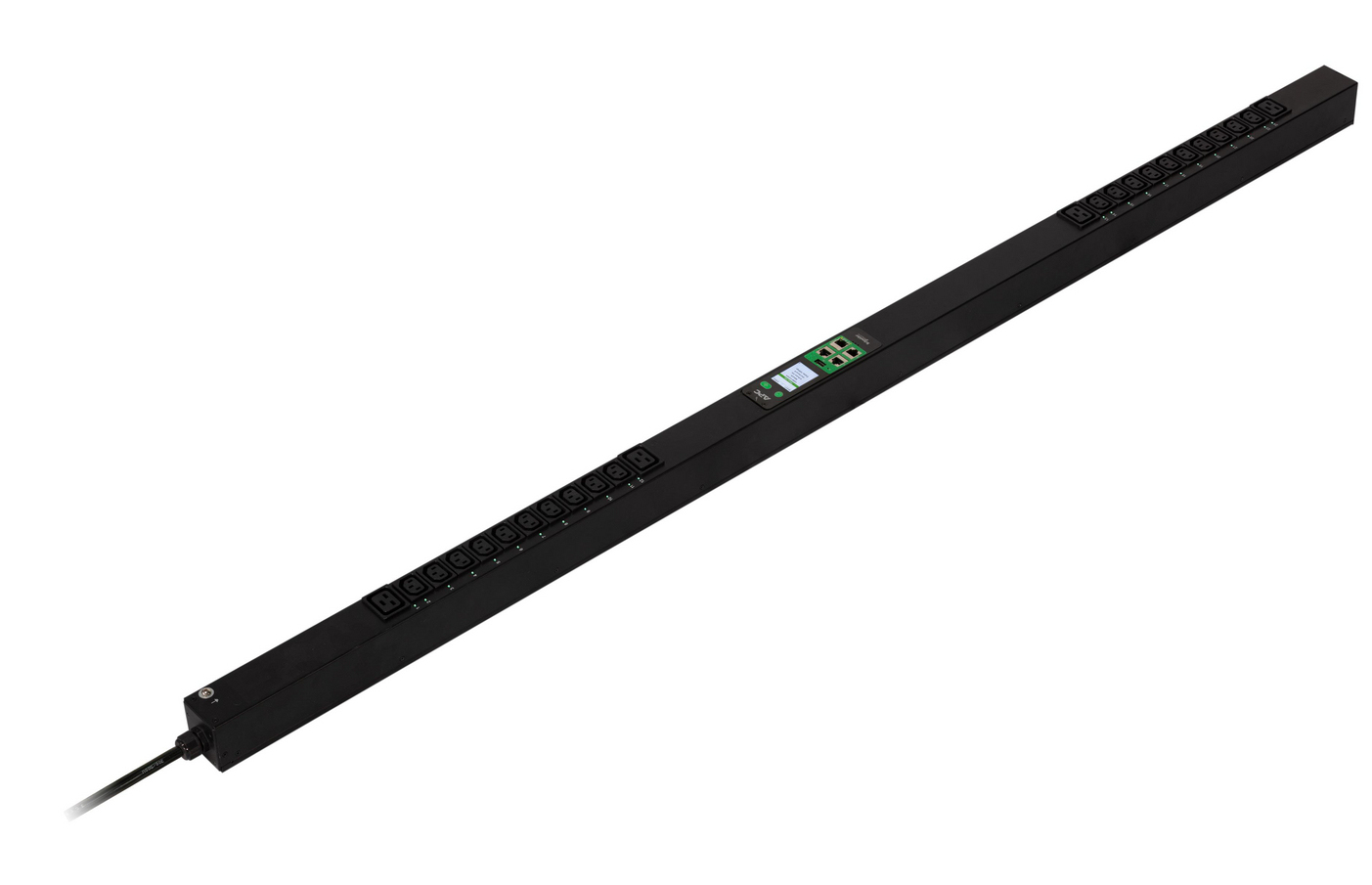

APC EASYPDU SWITCHED ZERO U 22 KW 230V (18)

EASYPDU SWITCHED ZERO U 22 KW 230V (18) C13 (6) C19IEC309

  • Brand: APC
  • Category: UPS Systems
  • SKU: 6607858
  • MPN: EPDU2232S

APC EasyPDU, Switched, Zero U, 22 kW, 230V, (18) C13 & (6) C19；IEC309

APC EasyPDU, Switched, Zero U, 22 kW, 230V, (18) C13 & (6) C19；IEC309, Switched, 0U, Three-phase, Vertical, Black, 24 AC outlet(s)

APC EASYPDU SWITCHED ZERO U 22 KW 230V (18)

Click or hover over image to enlarge

Brand:APC
MPN:6607858

Part #: 6607858

Search this part on Google

Nominal input voltage

400 V

AC input frequency

50/60 Hz

Maximum current

32 A

Nominal output voltage

230 V

Output voltage

230 V

Load capacity

22080 VA

Number of phases

3

PDU types

Switched

Returns & Warranty

Comsys Price

$2,291.94
On Sale

Save $357.01 off RRP

Out of Stock

NZ-wide deliveryShips from Auckland · 1–3 days
1
Afterpay4 payments of $572.99
100% NZ Owned & OperatedCall 0800 664 554

Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
Afterpay — pay it in 4 interest-free instalments
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

APC EASYPDU SWITCHED ZERO U 22 KW 230V (18)

It is a high-capacity, switched power distribution unit (PDU) designed for efficient power management in data centers and network environments. It features a vertical mounting design, which saves valuable rack space. The PDU supports a load capacity of 22 kW and operates at 230V with a 32A input current. It includes 18 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets, providing flexibility for connecting various IT equipment. The unit is equipped with an IEC 60309 32A 3P+N+PE input plug and supports 3-phase power distribution. Additionally,it offers remote management capabilities, allowing users to monitor and control individual outlets for optimized power usage. The PDU is built with robust materials, ensuring durability and reliable performance in demanding environments.

Key features

  • PDU types: Switched
  • Type: Three-phase
  • Rack capacity: 0U
  • Mounting: Vertical
  • Product colour: Black
  • AC outlets quantity: 24 AC outlet(s)
  • Power plug: C13 coupler
  • AC outlet types: C13 coupler, C19 coupler
  • Nominal input voltage: 400 V
  • AC input frequency: 50/60 Hz
  • Maximum current: 32 A
  • Nominal output voltage: 230 V
  • Output voltage: 230 V
  • Load capacity: 22080 VA
  • Number of phases: 3
  • Compliance certificates: CE, UKCA
  • Operating temperature (T-T): -5 - 50 °C
  • Storage temperature (T-T): -25 - 65 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage relative humidity (H-H): 5 - 95%
  • Operating altitude: 0 - 3000 m
  • Width: 56 mm
  • Depth: 62 mm
  • Height: 1650 mm
  • Weight: 7.75 kg
  • Package weight: 9.25 kg
  • Package width: 170 mm
  • Package depth: 1810 mm
  • Package height: 1260 mm
  • Total carbon footprint (kg of CO2e): 2155
