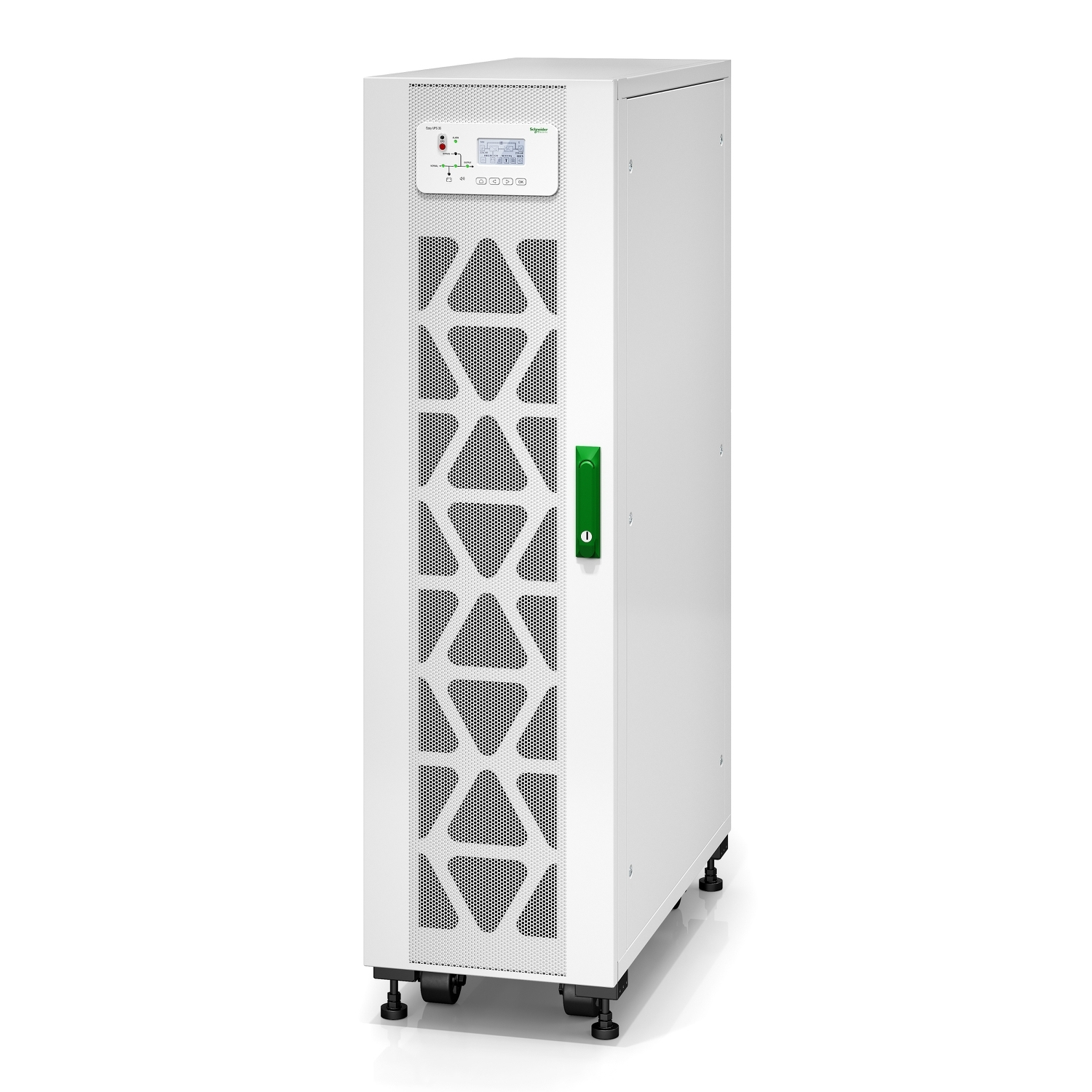

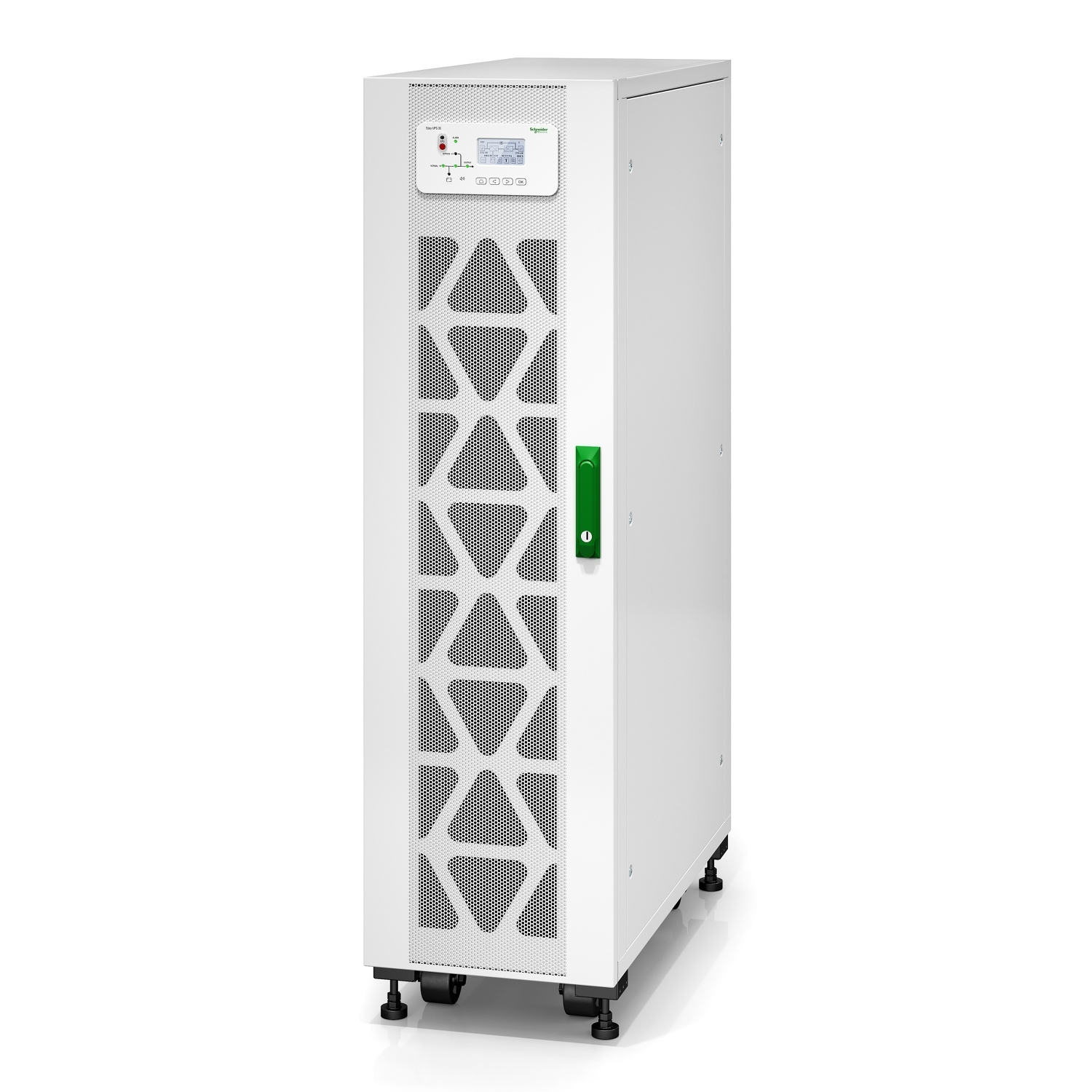

APC Easy UPS 3S 20 kVA 400 V 3:1 UPS for internal batteries

APC Easy UPS 3S 20 kVA 400 V 3:1 UPS for internal batteries, Double-conversion (Online), 20 kVA, 20000 W, 304 V, 477 V, 45/65 Hz

APC EASY UPS 3S 20 KVA 400 V 3:1 UPS FOR INTERNAL BATTERIES

Click or hover over image to enlarge

Brand:APC
MPN:E3SUPS20K3IB

Part #: E3SUPS20K3IB

Form factor

Rackmount

Product colour

White

International Protection (IP) code

IP20

Battery technology

Sealed Lead Acid (VRLA)

Battery voltage

240 V

UPS topology

Double-conversion (Online)

Output power capacity

20 kVA

Output power

20000 W

Returns & Warranty

Comsys Price

$13,847.14

Save $659.01 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

APC EASY UPS 3S 20 KVA 400 V 3:1 UPS FOR INTERNAL BATTERIES

This high-efficiency 3-phase UPS E3SUPS20K3IB features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 20 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime.

Key features

  • UPS topology: Double-conversion (Online)
  • Output power capacity: 20 kVA
  • Output power: 20000 W
  • Input operation voltage (min): 304 V
  • Input operation voltage (max): 477 V
  • Input frequency: 45/65 Hz
  • Output operation voltage (min): 220 V
  • Output operation voltage (max): 240 V
  • Output frequency: 50/60 Hz
  • Maximum current: 37 A
  • Power factor: 0.99
  • Crest factor: 3:1
  • Output voltage Total Harmonic Distortion (THD): 5.5%
  • Battery technology: Sealed Lead Acid (VRLA)
  • Battery voltage: 240 V
  • Form factor: Rackmount
  • Product colour: White
  • International Protection (IP) code: IP20
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -25 - 55 °C
  • Operating relative humidity (H-H): 0 - 95%
  • Storage relative humidity (H-H): 0 - 95%
  • Compliance certificates: RoHS
  • Certification: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE
  • Width: 380 mm
  • Depth: 907 mm
  • Height: 1400 mm
  • Weight: 150 kg
  • Package width: 563 mm
  • Package depth: 1014 mm

+ 3 more — see the Specifications tab.
