APC Din Rail Mount Battery Pack 24VDC
Din Rail Mount Battery Pack 24VDC
- Brand: APC
- Category: UPS Systems
- SKU: 5609837
- MPN: XB005XPDR

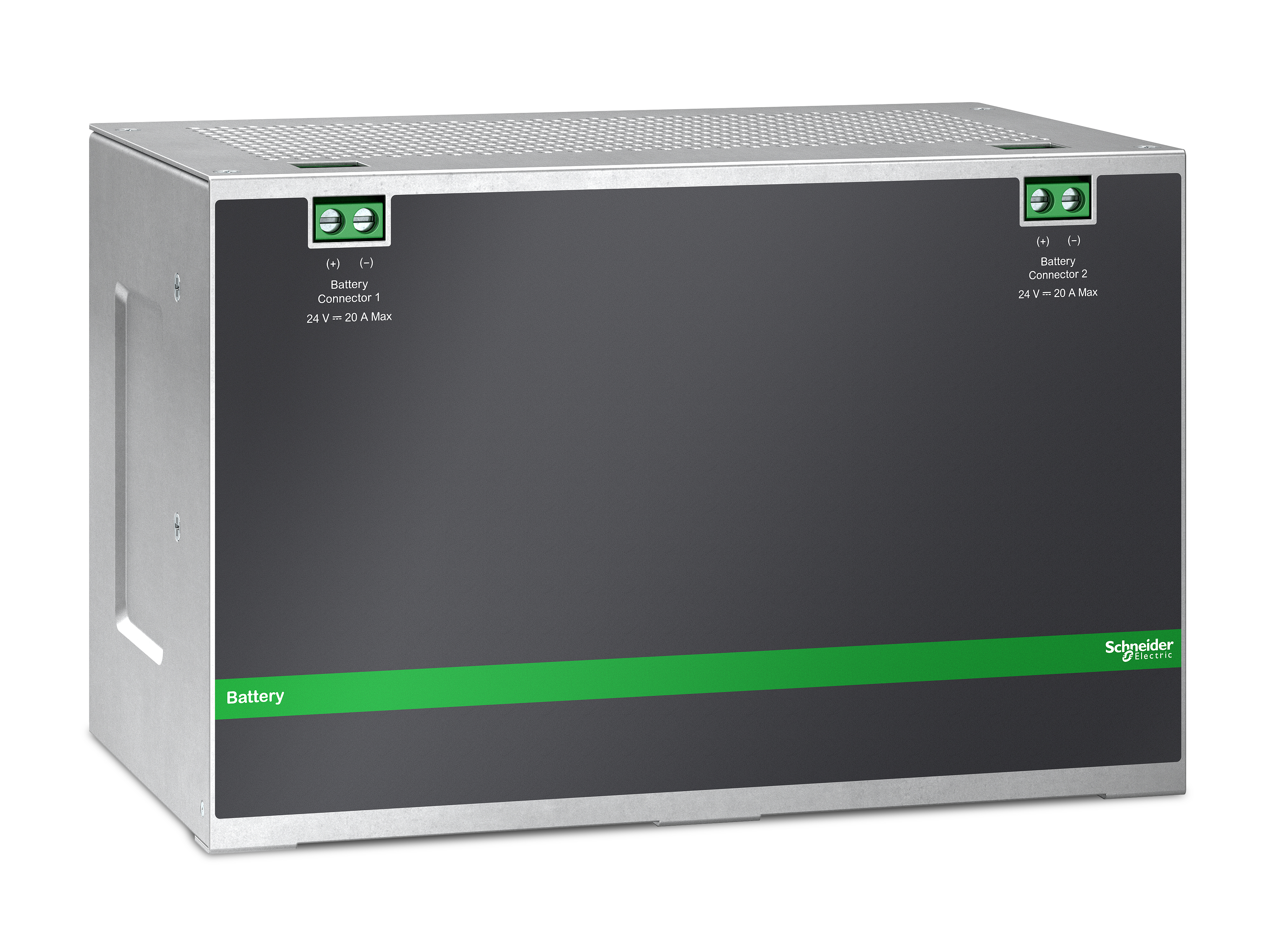

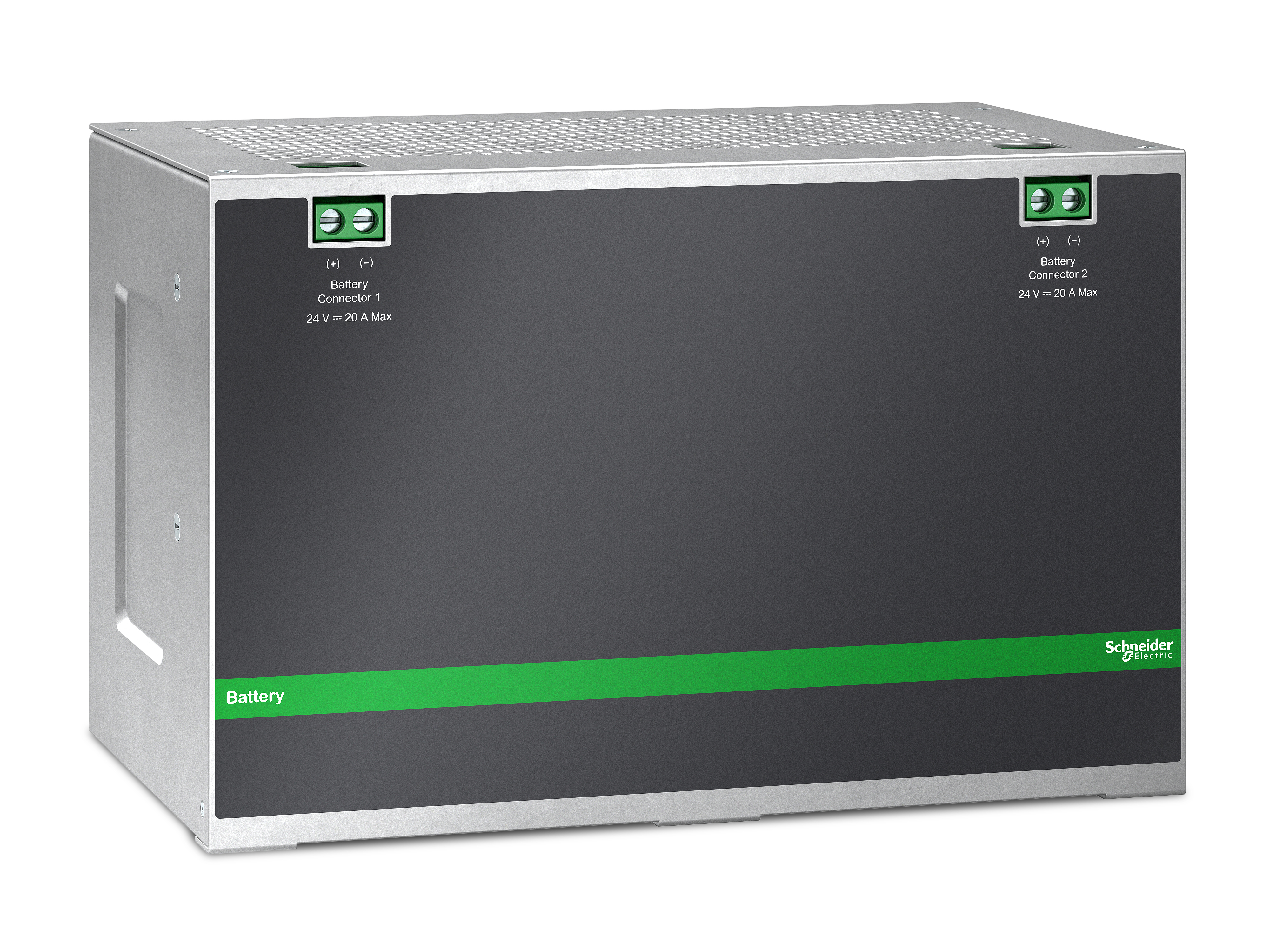

APC XB005XPDR External Battery Pack, DIN-Rail mounting
APC XB005XPDR External Battery Pack, DIN-Rail mounting, Sealed Lead Acid (VRLA), 24 V, 4.5 Ah, Grey, 4.5 kg, 192 mm
Click or hover over image to enlarge
Battery technology
Sealed Lead Acid (VRLA)
Battery voltage
24 V
Battery capacity
4.5 Ah
Product colour
Grey
Harmonized System (HS) code
85044090
Total carbon footprint (kg of CO2e)
21.98
Weight
4.5 kg
Width
192 mm
Comsys Price
Available to Order
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
APC Din Rail Mount Battery Pack 24VDC
Standard configuration
The BVS240XDPDR & BVS480XDPDR DIN-Rail Power Modules must both be equipped with at least one XB005XPDR to function as a full-fledged DIN-Rail 24V DC Uninterruptible Power Supply.
Extend runtime
By connecting two, three or max four XB005XPDR external battery packs to the associated BVS DIN-Rail Power Module instead of one, you can easily increase the number of minutes that the DIN-Rail
emergency power supply can independently supply backup power. A runtime of 30 minutes at 480 watt load is even possible.
Key features
- Battery technology: Sealed Lead Acid (VRLA)
- Battery voltage: 24 V
- Battery capacity: 4.5 Ah
- Product colour: Grey
- Weight: 4.5 kg
- Width: 192 mm
- Height: 129 mm
- Depth: 119 mm
- Harmonized System (HS) code: 85044090
- Total carbon footprint (kg of CO2e): 21.98
Inc GST
$14,218.59
