Allied Telesis UMC200/SC network media converter 100 Mbit/s 1310 nm…

Allied Telesis UMC200/SC, 100 Mbit/s, 100Base-TX, 100Base-SX, IEEE 802.1Q, Fast Ethernet, 10,100 Mbit/s

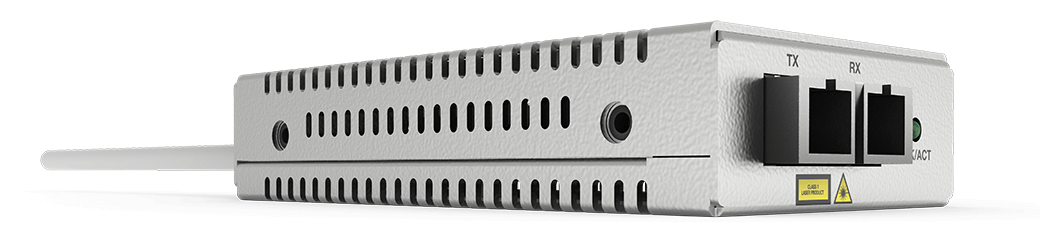

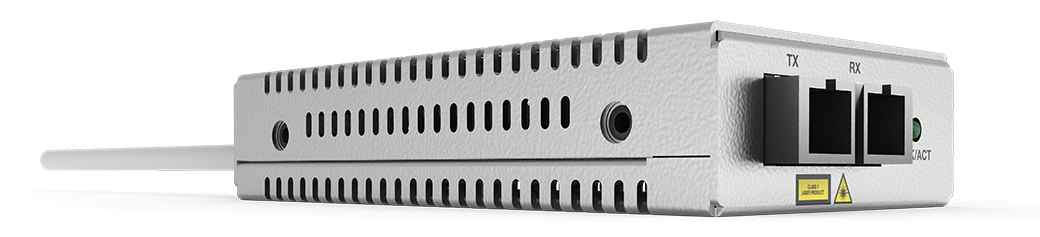

ALLIED TELESIS USB MEDIA CONVERTER USB 3.1

Click or hover over image to enlarge

Brand:ALLIED TELESIS
MPN:3717011

Part #: 3717011

Input voltage

5 V

Maximum data transfer rate

100 Mbit/s

Converter input interface

100Base-TX

Converter output interface

100Base-SX

Networking standards

IEEE 802.1Q

Ethernet interface type

Fast Ethernet

Ethernet LAN data rates

10,100 Mbit/s

Fiber ethernet cabling technology

100BASE-SX

Returns & Warranty

Comsys Price

$533.59

Save $121.01 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $133.40 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ALLIED TELESIS USB MEDIA CONVERTER USB 3.1

Gigabit USB Media Converter

The Allied Telesis UMC2000/SC Gigabit mini media converter is small and flexible, with a multi-mode SC fiber connector to convert USB (-A or -C) to 1000SX/SC. It is also TAA compliant.

Key features

  • Maximum data transfer rate: 100 Mbit/s
  • Converter input interface: 100Base-TX
  • Converter output interface: 100Base-SX
  • Networking standards: IEEE 802.1Q
  • Ethernet interface type: Fast Ethernet
  • Ethernet LAN data rates: 10,100 Mbit/s
  • Fiber ethernet cabling technology: 100BASE-SX
  • Data transfer rate: 100 Mbit/s
  • Jumbo frames support: Yes
  • VLAN support: Yes
  • Supported network protocols: Pv4 IP/ TCP/UDP/ICMP/ IGMP & IPv6 TCP/UDP/ICMPv6
  • Maximum transfer distance: 2000 m
  • Wavelength: 1310 nm
  • Fiber mode structure: Multi-mode
  • Tx power (min): -20 dBmW
  • Tx power (max): 14 dBmW
  • Rx power (min): 32 dBmW
  • Internal: No
  • LED indicators: Activity, Link
  • Product colour: Silver
  • Connectivity technology: Wired
  • Fiber optic connector: SC
  • Input voltage: 5 V
  • Width: 54.9 mm
  • Depth: 101.6 mm
  • Height: 21.8 mm
  • Weight: 170 g
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -30 - 70 °C
  • Operating relative humidity (H-H): 5 - 95%

+ 4 more — see the Specifications tab.
