Allied Telesis AT-DMC1000/ST-00 network media converter 1000 Mbit/s…

Allied Telesis AT-DMC1000/ST-00, 1000 Mbit/s, 1000Base-T, 1000Base-SX, IEEE 802.1Q, Gigabit Ethernet, 10,100,1000 Mbit/s

ALLIED TELESIS MMC 1000TX TO 1000SX ST CONNECTOR USB PO

Click or hover over image to enlarge

Brand:ALLIED TELESIS
MPN:5316108

Part #: 5316108

Power consumption (typical)

1.5 W

Maximum data transfer rate

1000 Mbit/s

Converter input interface

1000Base-T

Converter output interface

1000Base-SX

Networking standards

IEEE 802.1Q

Ethernet interface type

Gigabit Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s

Copper ethernet cabling technology

1000BASE-T

Returns & Warranty

Comsys Price

$660.09

Save $33.01 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $165.02 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

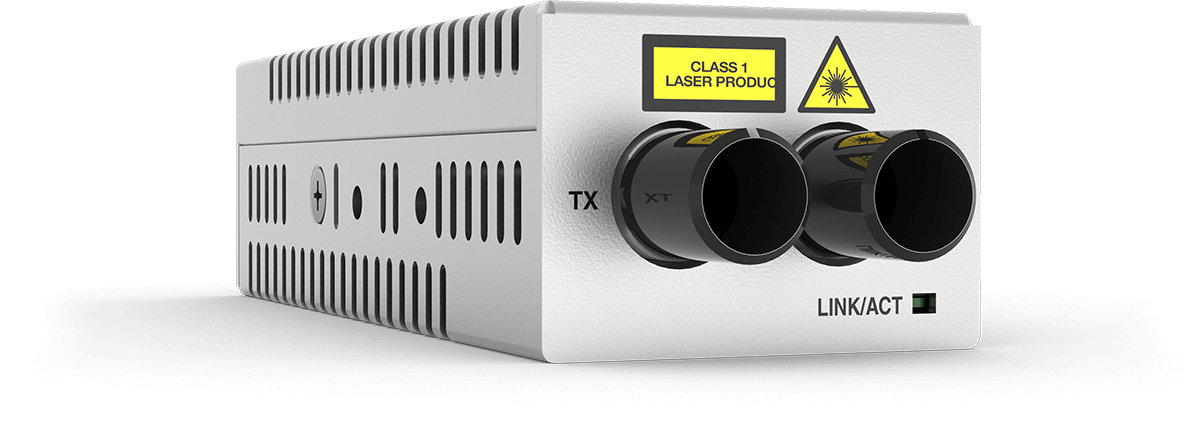

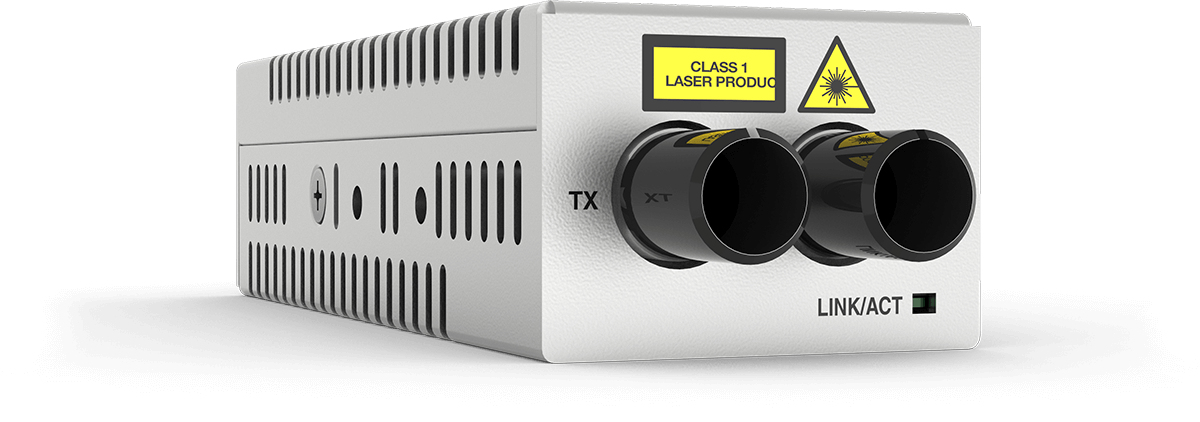

ALLIED TELESIS MMC 1000TX TO 1000SX ST CONNECTOR USB PO

This desktop media converter features 1000T to 1000SX conversion with ST multi-mode fiber connector supporting a distances from 220m to 550m. At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, this media converter can easily fit into the palm of a hand.

Key features

  • Maximum data transfer rate: 1000 Mbit/s
  • Converter input interface: 1000Base-T
  • Converter output interface: 1000Base-SX
  • Networking standards: IEEE 802.1Q
  • Ethernet interface type: Gigabit Ethernet
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • Copper ethernet cabling technology: 1000BASE-T
  • Fiber ethernet cabling technology: 1000BASE‑SX
  • Packet forwarding rate (10 Mbps): 14880 pps
  • Packet forwarding rate (100 Mbps): 148880 pps
  • Packet forwarding rate (1 Gbps): 1488000 pps
  • VLAN support: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Duplex system: Full, Half
  • Maximum transfer distance: 550 m
  • Wavelength: 850 nm
  • Fiber mode structure: Multi-mode
  • Tx power (min): -9.5 dBmW
  • Tx power (max): -4 dBmW
  • Rx power (min): -17 dBmW
  • Internal: No
  • LED indicators: Yes
  • Product colour: Grey
  • Connectivity technology: Wired
  • Ethernet LAN (RJ-45) ports: 1
  • Fiber ports quantity: 2
  • Fiber optic connector: ST
  • Power consumption (typical): 1.5 W
  • Width: 31.8 mm

+ 8 more — see the Specifications tab.
