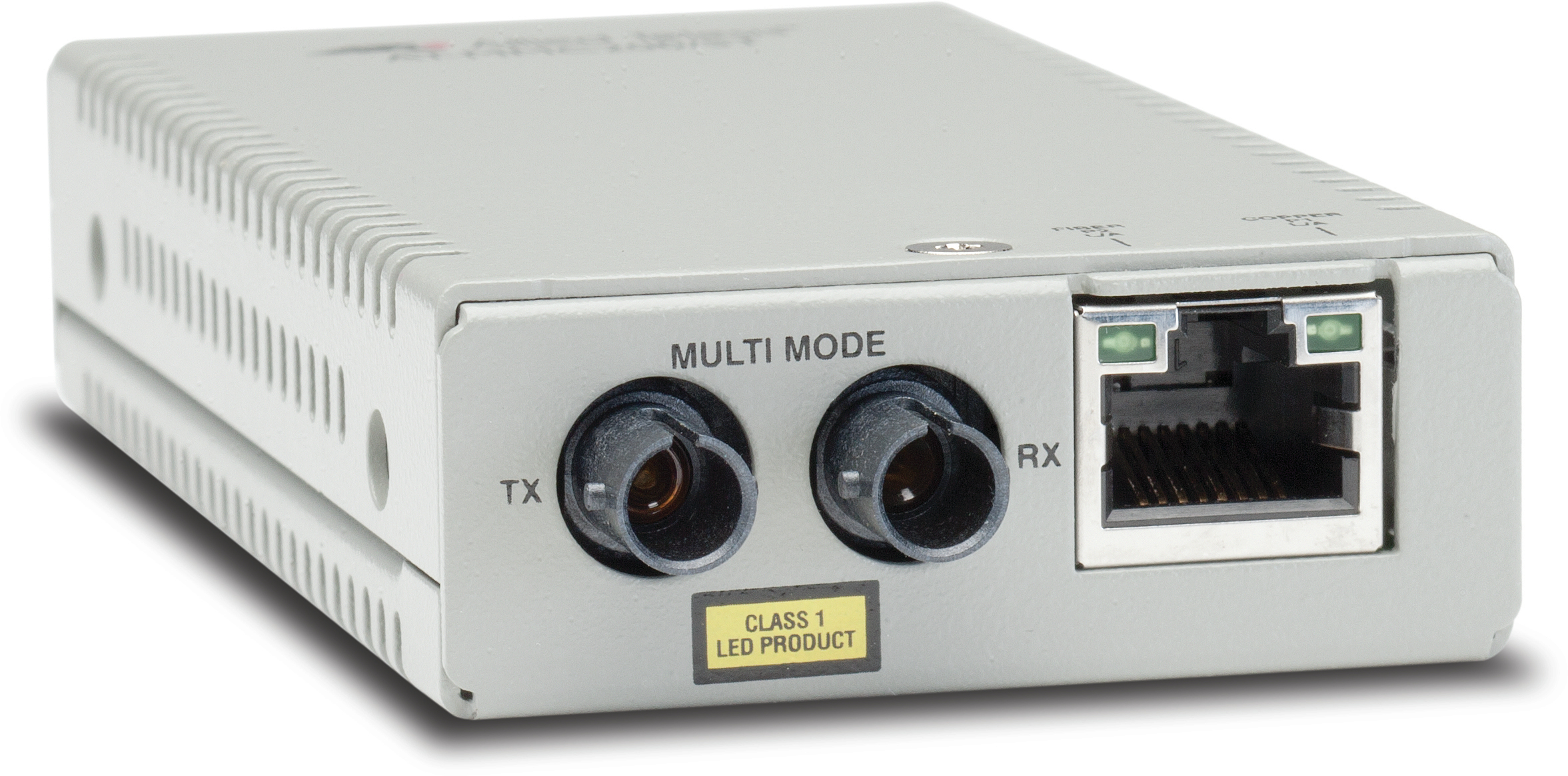

Allied Telesis AT-MMC200/ST-960 network media converter 100 Mbit/s…
Allied Telesis AT-MMC200/ST-960, 100 Mbit/s, 10Base-T, 100Base-T, 1000Base-T, 1000Base-SX, IEEE 802.1Q, Fast Ethernet, 10,100 Mbit/s
Click or hover over image to enlarge
Brand:ALLIED TELESIS
MPN:4703356
Part #: 4703356
Input voltage
12 V
Input current
0.14 A
Power consumption (typical)
1.7 W
Power over Ethernet (PoE)
Yes
Maximum data transfer rate
100 Mbit/s
Converter input interface
10Base-T, 100Base-T, 1000Base-T
Converter output interface
1000Base-SX
Networking standards
IEEE 802.1Q
Comsys Price
$491.04
Save $110.01 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Four payments of $122.76 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ALLIED TELESIS MM MEDIA AND RATE CONVERTER 100FX/ST
This standalone mini media and rate converter features 10/100TX to 100FX conversion with a multi-mode ST fiber connector and supports up to 2 km. It is compatible with the MMCR18 rack-mount chassis.
Copper to Fiber Mini Media and Rate Converters
Overview
The Allied Telesis MMC Series of mini media converters leverages its smaller size to not only help the environment with a small carbon footprint, but also to save space in its working environment. Despite its compact size, the MMC Series delivers all the power and functionality of standard size media converters.
Extend Networks
The MMC Series are available in 100Mbps or 1000Mbps models. Depending on the model chosen, the fiber-optic port has options for fixed SC, ST, LC or SFP connectors capable of multi-mode or single-mode fiber connectivity. The twisted-pair copper port has an RJ-45 connector supporting either 100Mbps or 1000Mbps, with a maximum operating distance of 100 meters (328 feet).
VLAN Support
Many new backbone switch products now support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) that send extra-long data packets on the network. The MMC Series are fully compatible with these long packets, enabling them to be used in modern networks. Media converters not supporting this feature discard these extra long packets, making them unsuitable for modern networks.
Small and Flexible
The smaller size and external power supply of the MMC Series allows them to be used almost anywhere.
Smart MissingLink (SML)
The Smart MissingLink™ (SML) feature monitors network connections and provides notification when network segments fail, allowing network managers to quickly identify the source and location of failed segments and minimize downtime.
Smart Link Restoration
Smart Link restoration allows the devices, in cases of power failure, link loss or other interrupted service, to automatically restore the link without the need to restart/reset them.
Power Saving
The MMC Series continues the Allied Telesis commitment to the environment with over 50% power savings. With just 1.7W of power usage, the MMC Series media converters are some of the most efficient in the market today.
Link Test
The link test is a fast and easy way for you to test the connections between the media converter ports and the connected end nodes. If a network problem occurs, you can perform a link test to determine which port is experiencing a problem, and focus your troubleshooting efforts on the right cable or end node.
Copper to Fiber Mini Media and Rate Converters
Overview
The Allied Telesis MMC Series of mini media converters leverages its smaller size to not only help the environment with a small carbon footprint, but also to save space in its working environment. Despite its compact size, the MMC Series delivers all the power and functionality of standard size media converters.
Extend Networks
The MMC Series are available in 100Mbps or 1000Mbps models. Depending on the model chosen, the fiber-optic port has options for fixed SC, ST, LC or SFP connectors capable of multi-mode or single-mode fiber connectivity. The twisted-pair copper port has an RJ-45 connector supporting either 100Mbps or 1000Mbps, with a maximum operating distance of 100 meters (328 feet).
VLAN Support
Many new backbone switch products now support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) that send extra-long data packets on the network. The MMC Series are fully compatible with these long packets, enabling them to be used in modern networks. Media converters not supporting this feature discard these extra long packets, making them unsuitable for modern networks.
Small and Flexible
The smaller size and external power supply of the MMC Series allows them to be used almost anywhere.
Smart MissingLink (SML)
The Smart MissingLink™ (SML) feature monitors network connections and provides notification when network segments fail, allowing network managers to quickly identify the source and location of failed segments and minimize downtime.
Smart Link Restoration
Smart Link restoration allows the devices, in cases of power failure, link loss or other interrupted service, to automatically restore the link without the need to restart/reset them.
Power Saving
The MMC Series continues the Allied Telesis commitment to the environment with over 50% power savings. With just 1.7W of power usage, the MMC Series media converters are some of the most efficient in the market today.
Link Test
The link test is a fast and easy way for you to test the connections between the media converter ports and the connected end nodes. If a network problem occurs, you can perform a link test to determine which port is experiencing a problem, and focus your troubleshooting efforts on the right cable or end node.
Key features
- Maximum data transfer rate: 100 Mbit/s
- Converter input interface: 10Base-T, 100Base-T, 1000Base-T
- Converter output interface: 1000Base-SX
- Networking standards: IEEE 802.1Q
- Ethernet interface type: Fast Ethernet
- Ethernet LAN data rates: 10,100 Mbit/s
- Fiber ethernet cabling technology: 1000BASE‑SX
- Jumbo frames support: Yes
- Jumbo frames: 10000
- VLAN support: Yes
- Auto MDI/MDI-X: Yes
- Store-and-forward: Yes
- Duplex system: Full
- Maximum transfer distance: 2000 m
- Wavelength: 1310 nm
- Fiber mode structure: Multi-mode
- Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
- Tx power (min): -9.5 dBmW
- Tx power (max): -4 dBmW
- Rx power (min): -17 dBmW
- Rx power (max): -3 dBmW
- Internal: No
- LED indicators: LAN, Power, System
- Product colour: Grey
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 2
- Fiber optic connector: ST
- Input voltage: 12 V
- Input current: 0.14 A
+ 16 more — see the Specifications tab.
Inc GST
$491.04
