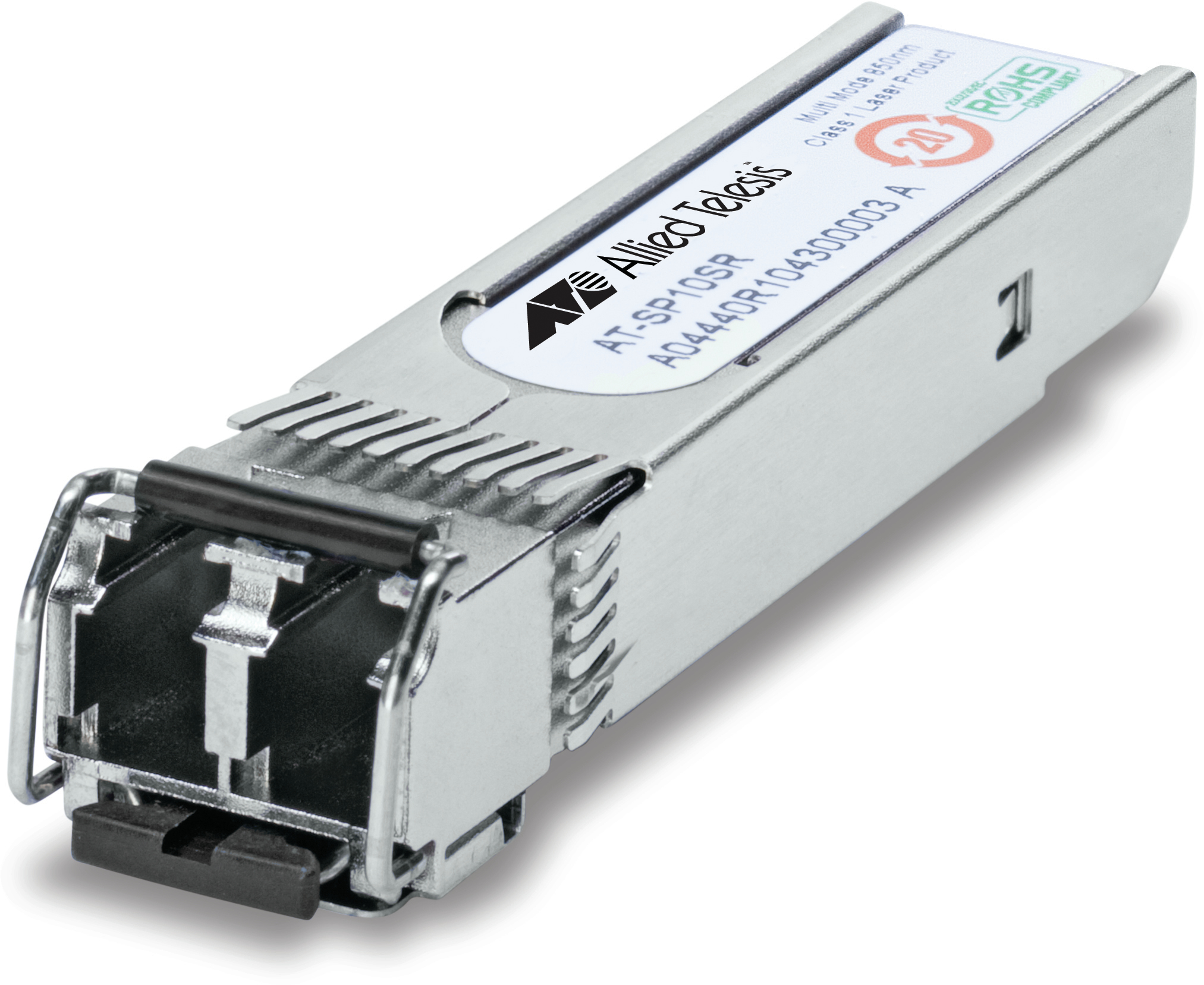

Allied Telesis AT-SP10SR/I network transceiver module Fiber optic…
Allied Telesis AT-SP10SR/I, Fiber optic, 10300 Mbit/s, SFP+, LC, SR, 300 m
Click or hover over image to enlarge
Brand:ALLIED TELESIS
MPN:1986560
Part #: 1986560
Power consumption (typical)
1 W
Product colour
Metallic
SFP transceiver type
Fiber optic
Maximum data transfer rate
10300 Mbit/s
Interface type
SFP+
Multi-mode fiber (MMF) supported
Yes
Fiber optic connector
LC
SFP transceiver standard
SR
Comsys Price
$1,018.89
Save $228.01 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Four payments of $254.72 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

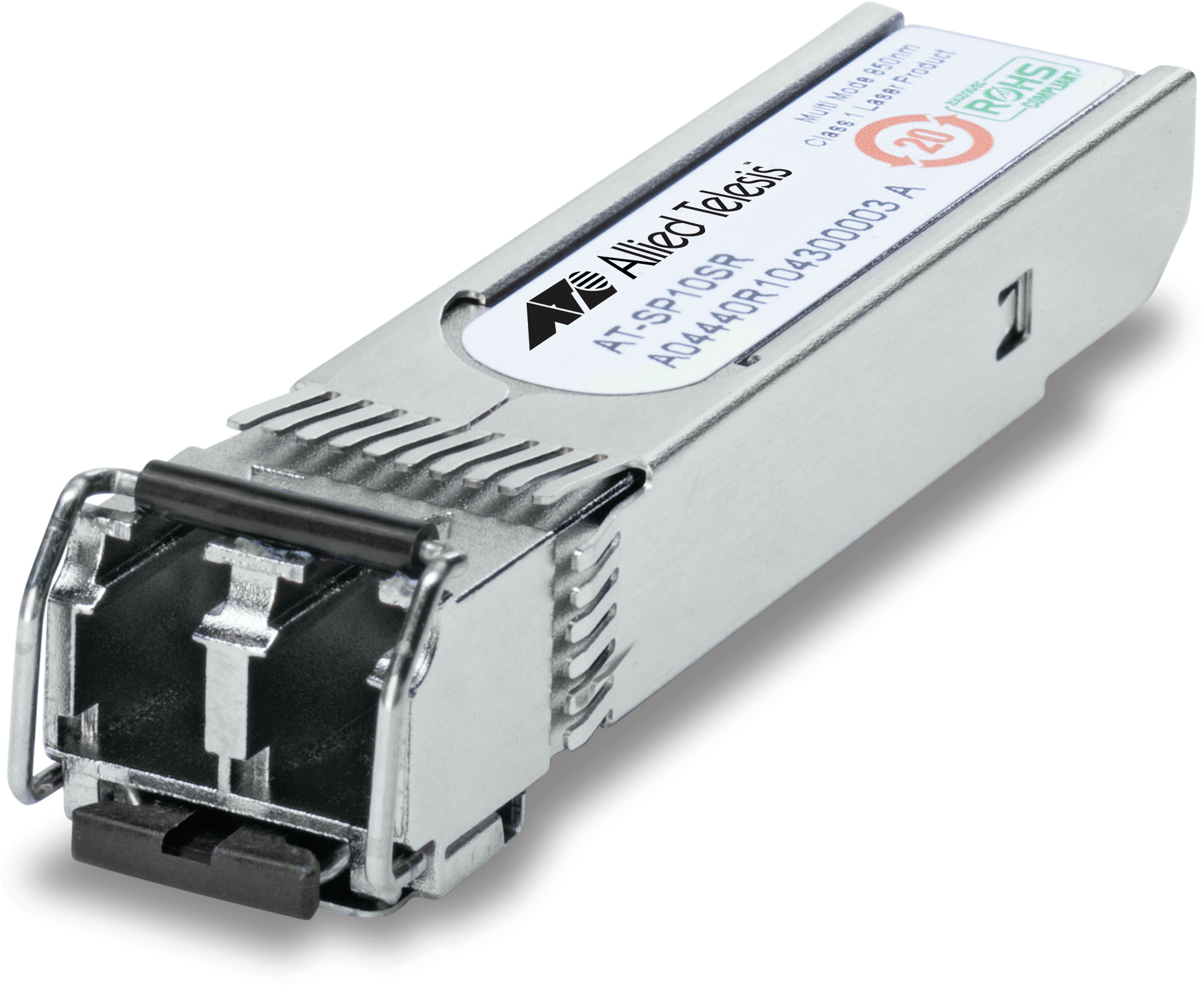

ALLIED TELESIS 850NM 10G SFP+ - HOT SWAPPABLE 300M USI
The Allied Telesis SP10SR is a hot pluggable 10Gbps small form factor transceiver module. It is compliant with the SFF-8431 SFP+ Electrical Multi-source Agreement (MSA) with five digital monitoring functions: Temperature, Vcc, Tx optical power, Tx laser bias current and Rx received optical power.
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 10300 Mbit/s
- Interface type: SFP+
- Multi-mode fiber (MMF) supported: Yes
- Fiber optic connector: LC
- SFP transceiver standard: SR
- Maximum transfer distance: 300 m
- Wavelength: 850 nm
- Tx power (min): -5 dBmW
- Tx power (max): -1 dBmW
- Digital Diagnostics Monitoring (DDM): Yes
- Product colour: Metallic
- Power consumption (typical): 1 W
- Compliance certificates: RoHS
- Operating temperature (T-T): -40 - 85 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 0 - 85%
- Storage relative humidity (H-H): 0 - 85%
- Quantity per pack: 1 pc(s)
- RX sensitivity: -9.9 dB
