Allied Telesis AT-SP10SR network transceiver module Fiber optic…
Allied Telesis AT-SP10SR, Fiber optic, 10300 Mbit/s, SFP+, LC, 300 m, 850 nm

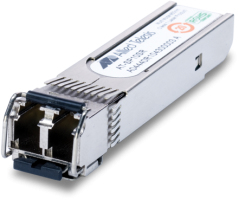

Click or hover over image to enlarge
Brand:ALLIED TELESIS
MPN:1986559
Part #: 1986559
Power consumption (typical)
1 W
SFP transceiver type
Fiber optic
Maximum data transfer rate
10300 Mbit/s
Interface type
SFP+
Multi-mode fiber (MMF) supported
Yes
Fiber optic connector
LC
Maximum transfer distance
300 m
Wavelength
850 nm
Comsys Price
$458.84
Save $101.01 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Four payments of $114.71 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ALLIED TELESIS 850NM 10G SFP+ - HOT SWAPPABLE 300M USI
The Allied Telesis AT-SP10SR is a hot pluggable 10Gbps small form factor transceiver module. It is compliant with the SFF-8431 SFP+ Electrical Multi-source Agreement (MSA) with five digital monitoring functions: Temperature, Vcc, Tx optical power, Tx laser bias current and Rx received optical power.
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 10300 Mbit/s
- Interface type: SFP+
- Multi-mode fiber (MMF) supported: Yes
- Fiber optic connector: LC
- Maximum transfer distance: 300 m
- Wavelength: 850 nm
- Tx power (min): -5 dBmW
- Tx power (max): -1.8 dBmW
- Rx power (min): -30 dBmW
- Rx power (max): -11.1 dBmW
- Power consumption (typical): 1 W
- Compliance certificates: RoHS
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 0 - 85%
- Storage relative humidity (H-H): 0 - 85%
- Harmonized System (HS) code: 85369010
