Allied Telesis AT-DMC1000/ST-90 network media converter 1000 Mbit/s…

Allied Telesis AT-DMC1000/ST-90, 1000 Mbit/s, 1000Base-T, 1000Base-SX, IEEE 802.1Q, Gigabit Ethernet, 10,100,1000 Mbit/s

ALLIED TELESIS 1000T to 1000X/ST Desktop

Click or hover over image to enlarge

Brand:ALLIED TELESIS
MPN:4282884

Part #: 4282884

Output voltage

5 V

Maximum data transfer rate

1000 Mbit/s

Converter input interface

1000Base-T

Converter output interface

1000Base-SX

Networking standards

IEEE 802.1Q

Ethernet interface type

Gigabit Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s

Data transfer rate

1000 Mbit/s

Returns & Warranty

Comsys Price

$676.19

Save $32.01 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $169.05 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

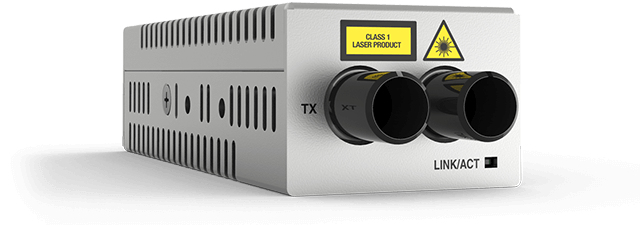

ALLIED TELESIS 1000T to 1000X/ST Desktop

Gigabit Desktop USB-Powered Media Converter
This desktop media converter features 1000T to 1000SX conversion with ST multi-mode fiber connector supporting a distances from 220m to 550m. At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, this media converter can easily fit into the palm of a hand.

Key features

  • Maximum data transfer rate: 1000 Mbit/s
  • Converter input interface: 1000Base-T
  • Converter output interface: 1000Base-SX
  • Networking standards: IEEE 802.1Q
  • Ethernet interface type: Gigabit Ethernet
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • Data transfer rate: 1000 Mbit/s
  • Packet forwarding rate (10 Mbps): 14880 pps
  • Packet forwarding rate (100 Mbps): 148800 pps
  • Packet forwarding rate (1 Gbps): 1488000 pps
  • VLAN support: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Rate limiting: Yes
  • Duplex system: Full, Half
  • Link Loss Carry Forward (LLCF) supported: Yes
  • Link Loss Return (LLR) supported: Yes
  • Cable types supported: Fiber
  • Maximum transfer distance: 550 m
  • Wavelength: 850 nm
  • Fiber mode structure: Multi-mode
  • Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
  • Tx power (min): -9.5 dBmW
  • Tx power (max): -4 dBmW
  • Rx power (min): -17 dBmW
  • Internal: No
  • LED indicators: Yes
  • Product colour: Grey
  • Connectivity technology: Wired
  • Ethernet LAN (RJ-45) ports: 1

+ 17 more — see the Specifications tab.
