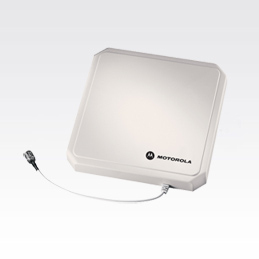

Motorola AN480-CL66100WR network antenna N-type 6 dBi
Motorola AN480-CL66100WR, 6 dBi, 50 Ω, N-type, Horizontal polarization, 1.22:1, White
Click or hover over image to enlarge
Brand:ZEBRA
MPN:1202844
Part #: 1202844
Antenna connector type
N-type
Polarization
Horizontal polarization
Voltage Standing Wave Ratio (VSWR)
1.22:1
Product colour
White
Power handling
2 W
Mounting
Wall
Impedance
50 Ω
Antenna gain level (max)
6 dBi
Comsys Price
$461.14
Save $52.00 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Four payments of $115.29 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ZEBRA ANTENNA: 1 PORT WIDE BAND-LEFT
This single port antenna offers the maximum flexibility and performance required to meet the needs of enterprises around the world. Compatible in virtually any global market, Motorola's AN480 can be installed throughout the enterprise in manufacturing and warehouse floor environments or any dock door receiving application
The AN480 antenna offers a low axial ratio that delivers a more uniform gain for superior performance.
The AN480 antenna offers a low axial ratio that delivers a more uniform gain for superior performance.
Key features
- Impedance: 50 Ω
- Antenna gain level (max): 6 dBi
- Antenna connector type: N-type
- Polarization: Horizontal polarization
- Voltage Standing Wave Ratio (VSWR): 1.22:1
- Product colour: White
- Power handling: 2 W
- Mounting: Wall
- Compliance certificates: RoHS
- Certification: IP 54 IEC-68 UL-746C
- Width: 259.1 mm
- Depth: 258.1 mm
- Height: 50.3 mm
- Weight: 1.13 kg
- Harmonized System (HS) code: 85177100
- Frequency range: 865-868 MHz
