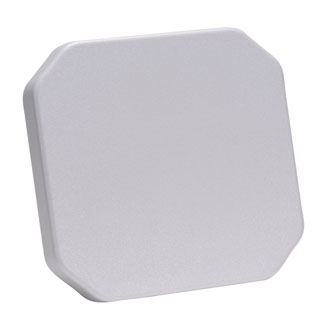

Motorola AN720 network antenna N-type 6 dBi
Motorola AN720, 6 dBi, 50 Ω, N-type, Female, Circular polarization, 1.5:1
Click or hover over image to enlarge
Brand:ZEBRA
MPN:1856333
Part #: 1856333
Antenna connector type
N-type
Connector gender
Female
Polarization
Circular polarization
Voltage Standing Wave Ratio (VSWR)
1.5:1
Product colour
White
Mounting
Wall
Purpose
Indoor & outdoor
Impedance
50 Ω
Comsys Price
$451.94
Save $43.00 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Four payments of $112.99 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

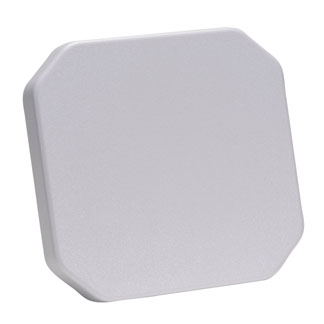

ZEBRA ANT: RFID RUGGED EU FREQ 5-IN
The AN720 RFID antennas offer all the features required for both indoor and outdoor environments. A perfect complement to Motorola’s FX7400 RFID Reader, the AN720 antennas are extremely compact, offering the aesthetics required for the most discreet installation in the most space constrained areas. The rugged AN720 is impact and vibration resistant, and designed to withstand exposure to rain, snow and extreme temperatures — ideal for the receiving dock doors or outdoor shopping areas.
Key features
- Impedance: 50 Ω
- Antenna gain level (max): 6 dBi
- Antenna connector type: N-type
- Connector gender: Female
- Polarization: Circular polarization
- Voltage Standing Wave Ratio (VSWR): 1.5:1
- Product colour: White
- Mounting: Wall
- Purpose: Indoor & outdoor
- Certification: MIL-STD-810 IEC 68-2-27 lEC 68-2-30 IP 6
- Operating temperature (T-T): -30 - 70 °C
- Storage temperature (T-T): 40 - 85 °C
- Width: 132.8 mm
- Depth: 18.1 mm
- Height: 132.8 mm
- Weight: 460 g
- Harmonized System (HS) code: 85177100
- Frequency range: 865-868 MHz
