StarTech.com VGA VIDEO EXTENDER OVER CAT 5 WITH AUDIO
VGA VIDEO EXTENDER OVER CAT 5 WITH AUDIO
- Brand: StarTech.com
- Category: Audio & Video
- SKU: 2977640
- MPN: ST122UTPA

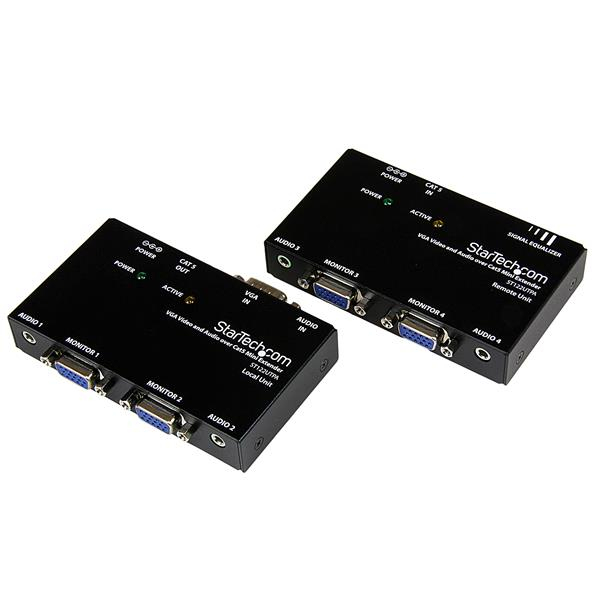

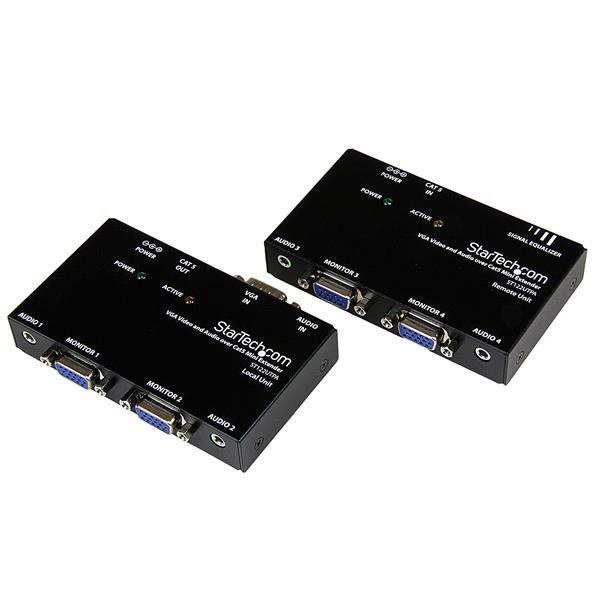

StarTech.com VGA Video Extender over Cat 5 with Audio
StarTech.com VGA Video Extender over Cat 5 with Audio, AV transmitter & receiver, 150 m, Black
Click or hover over image to enlarge
Operating voltage
12 V
Output current
0.5 A
Power consumption (typical)
6 W
External power adapter
Yes
Type
AV transmitter & receiver
Cable types supported
Cat5e, Cat6
Maximum transfer distance
150 m
Supported graphics resolutions
1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
Available to Order
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
StarTech.com VGA VIDEO EXTENDER OVER CAT 5 WITH AUDIO
The VGA video and audio extender includes a local transmitter and a remote receiver, providing an out-of-the box solution that's perfect for point to point digital signage applications that require audio. To simplify installation, this kit also includes a mounting bracket for the ST122UTPA receiver to install onto walls, desks or cabinets for a tidy setup.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Cost-effective VGA extension through non-proprietary network cabling
- Built-in mounting brackets, for a tidy and professional installation
Key features
- Type: AV transmitter & receiver
- Cable types supported: Cat5e, Cat6
- Maximum transfer distance: 150 m
- Supported graphics resolutions: 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900
- Material: Aluminium
- Daisy chain: No
- Product colour: Black
- Certification: CE, FCC
- RJ-45 input ports: 1
- RJ-45 output ports: 1
- VGA (D-Sub) input ports: 2
- VGA (D-Sub) output ports: 2
- Audio input: 2 x 3.5 mm
- Audio output: 2 x 3.5 mm
- DC-in jack: Yes
- Operating voltage: 12 V
- Output current: 0.5 A
- Power consumption (typical): 6 W
- External power adapter: Yes
- Receiver dimensions (WxDxH): 83 x 60 x 20 mm
- Receiver weight: 181 g
- Transmitter dimensions (WxDxH): 83 x 60 x 20 mm
- Transmitter weight: 181 g
- Package dimensions (WxDxH): 92 x 242 x 188 mm
- Package weight: 1.2 kg
- AC adapter included: Yes
- Manual: Yes
- Mounting brackets included: Yes
- Audio support: Yes
- Compliance certificates: RoHS
