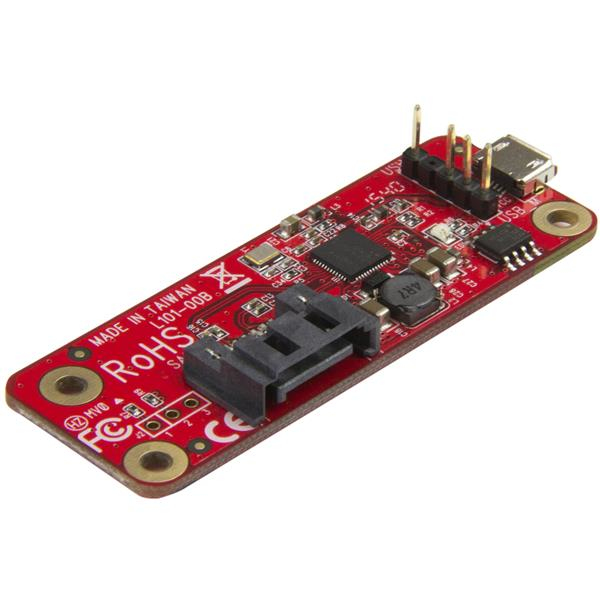

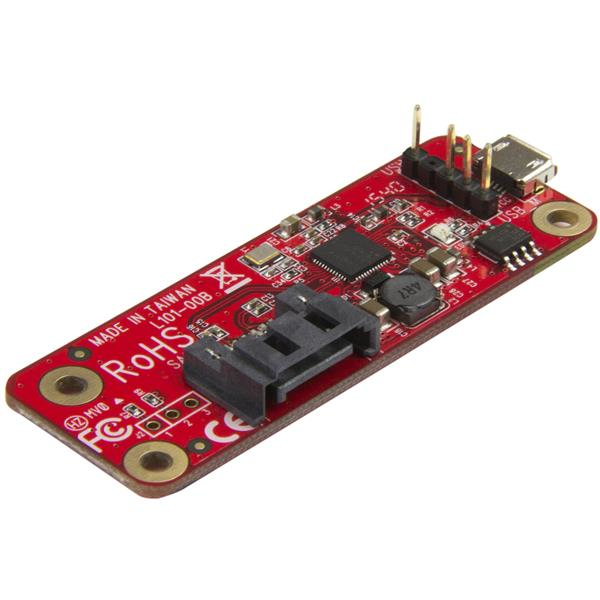

StarTech.com USB to SATA Converter for Raspberry Pi
USB TO SATA CONVERTER FOR RASPBERRY PI AND DEVELOPMENT BOARDS - USB TO SATA ADAPTER FOR RASPBERRY PI BOARD - INCLUDES USB CABLE - SUPPORTS SATA I II III - SUPPORTS SATA DEVICES
- Brand: StarTech.com
- Category: Storage Cables
- SKU: 3521535
- MPN: PIB2S31
StarTech.com USB to SATA Converter for Raspberry Pi and Development…
StarTech.com USB to SATA Converter for Raspberry Pi and Development Boards, Micro-USB, SATA, Red, 6481043 h, Taiwan, CE, FCC
Click or hover over image to enlarge
USB powered
Yes
Internal
Yes
Product colour
Red
Mean time between failures (MTBF)
6481043 h
Country of origin
Taiwan
Certification
CE, FCC
Chipset
Renesas - µPD720231A
Data transfer rate (max)
6 Gbit/s
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
Available to Order
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
StarTech.com USB to SATA Converter for Raspberry Pi
Add data storage and enhanced capabilities to your development board
This convenient USB 2.0 SATA converter lets you overcome data storage limitations by enabling you to connect a SATA drive or SATA optical drive through your board’s USB-A port. This enables you to access a wide variety of storage formats including solid-state drives or hard drives, DVD-ROM drives or CD-ROM drives.
A convenient integrated solution
The USB to SATA converter integrates seamlessly with your existing development board. It’s the perfect addition for development-board based applications such as surveillance, media players and servers, digital signage and IoT/automation solutions.
Easy to install
Compatible with SATA I, SATA II and SATA III drives, the converter is easy to install, and doesn’t require any device driver installation. It comes with a USB cable and all mounting accessories, including standoffs, so integrating it with your Raspberry Pi is fast and easy.
StarTech.com provides industry-leading support to get you up and running quickly. The PIB2S31 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Key features
- Host interface: Micro-USB
- Output interface: SATA
- SATA revision: 3.0
- Internal: Yes
- Product colour: Red
- Mean time between failures (MTBF): 6481043 h
- Country of origin: Taiwan
- Certification: CE, FCC
- Chipset: Renesas - µPD720231A
- Data transfer rate (max): 6 Gbit/s
- USB powered: Yes
- Operating temperature (T-T): 5 - 50 °C
- Storage temperature (T-T): -25 - 70 °C
- Operating relative humidity (H-H): 15 - 90%
- Compliance certificates: RoHS
- Width: 23 mm
- Depth: 66 mm
- Height: 11 mm
- Weight: 7.6 g
- Cables included: USB
- Quick installation guide: Yes
- Package width: 143 mm
- Package depth: 178 mm
- Package height: 32 mm
- Package weight: 70.4 g
- Harmonized System (HS) code: 84733020
- Compatibility: Raspberry Pi
