StarTech.com USB Dual VGA over Cat5 KVM Console Extender - 650 ft /…
StarTech.com USB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m, 80 mm, 155 mm, 40 mm, 535 g, 239 mm, 367 mm
Click or hover over image to enlarge
Brand:StarTech.com
MPN:2086140
Part #: 2086140
Harmonized System (HS) code
84733020
Cables included
AC, KVM
Manual
Yes
Maximum transfer distance
200 m
Product colour
Black
Compliance certificates
RoHS
VGA (D-Sub) ports quantity
4
USB 2.0 ports quantity
12
Comsys Price
$995.89
Save $232.80 off RRP
Out of Stock
Contact us for ETA or alternatives
NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days

Four payments of $248.97 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

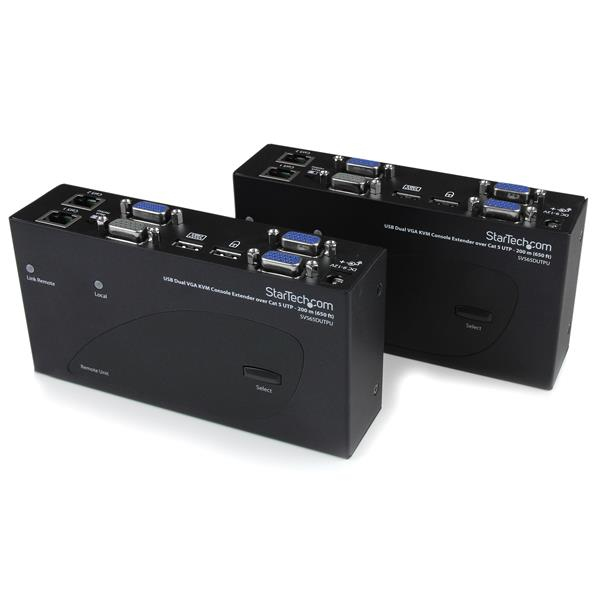

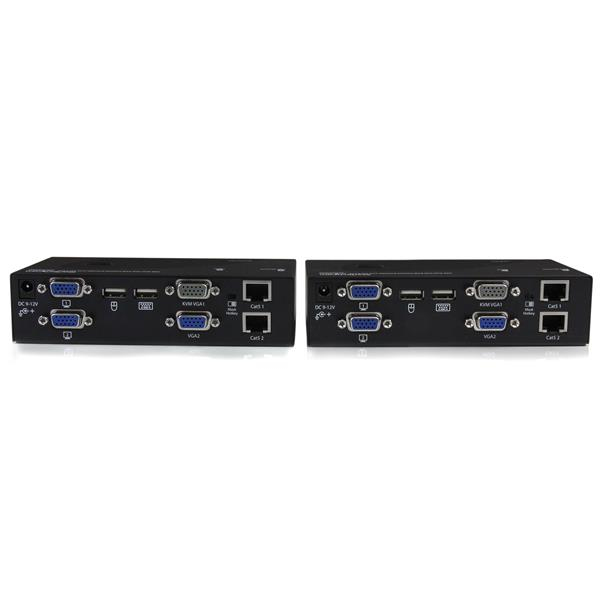

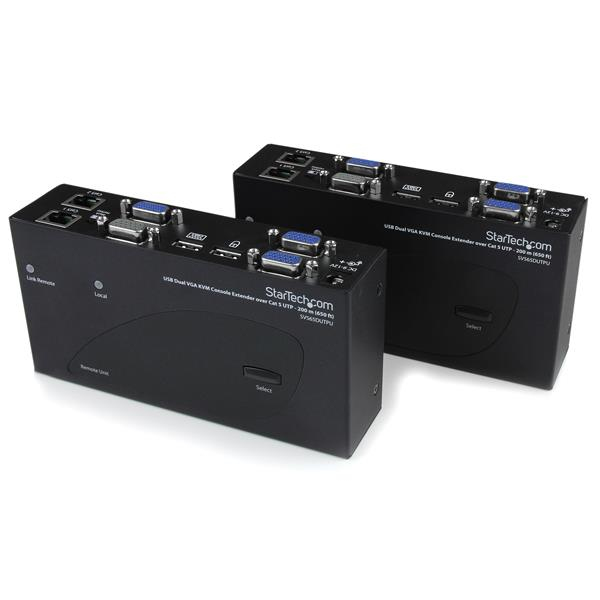

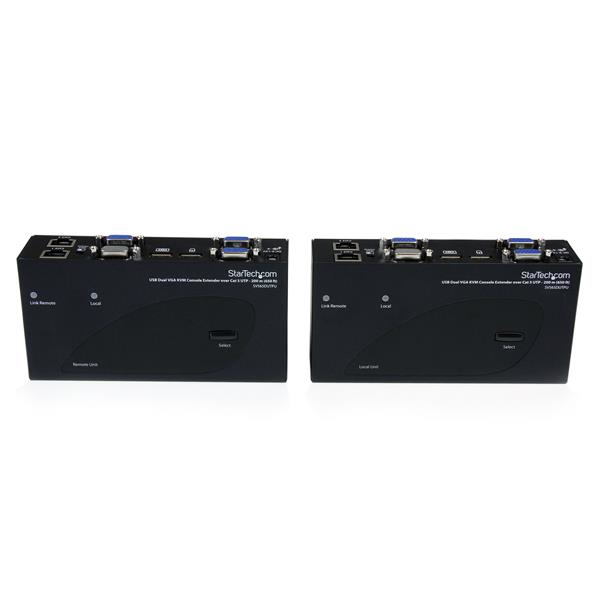

StarTech.com USB Dual VGA over Cat5 KVM Extender
Operate a Dual VGA, USB-enabled PC up to 650ft away, as if it was installed locally
The SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed locally, at high-definition 1920x1200 resolution. PC connection cables are included with this product for a ready to use solution.
The dual VGA cat5 KVM extender supports easy to use hot-key and push button commands which allow you to switch between local and remote connected systems, while console connections at both ends of your setup provide easy access to all connected systems from either location. The hot-key commands also provide video adjustment controls for optimizing picture quality over varying distances. Extending over two standard Cat 5 (or better) cables gives you the ability to use existing infrastructure wiring to achieve remote access to your server or KVM switch.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Low cost way to convert existing dual VGA KVM units, or individual Servers into remotely accessible hardware extending your hardware’s capabilities
- Maintain network security with long distance local access without being exposed over IP
- Broad support for newer USB keyboards, mice, and even most combo/wireless configurations
The SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed locally, at high-definition 1920x1200 resolution. PC connection cables are included with this product for a ready to use solution.
The dual VGA cat5 KVM extender supports easy to use hot-key and push button commands which allow you to switch between local and remote connected systems, while console connections at both ends of your setup provide easy access to all connected systems from either location. The hot-key commands also provide video adjustment controls for optimizing picture quality over varying distances. Extending over two standard Cat 5 (or better) cables gives you the ability to use existing infrastructure wiring to achieve remote access to your server or KVM switch.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Low cost way to convert existing dual VGA KVM units, or individual Servers into remotely accessible hardware extending your hardware’s capabilities
- Maintain network security with long distance local access without being exposed over IP
- Broad support for newer USB keyboards, mice, and even most combo/wireless configurations
Key features
- Maximum transfer distance: 200 m
- Product colour: Black
- Compliance certificates: RoHS
- VGA (D-Sub) ports quantity: 4
- USB 2.0 ports quantity: 12
- RJ-45 ports quantity: 2
- DC-in jack: Yes
- Width: 80 mm
- Depth: 155 mm
- Height: 40 mm
- Weight: 535 g
- Package width: 239 mm
- Package depth: 367 mm
- Package height: 75 mm
- Package weight: 2.25 kg
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -10 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Cables included: AC, KVM
- Manual: Yes
- Harmonized System (HS) code: 84733020
Inc GST
$995.89
