StarTech.com USB-C Power Tester, Digital Multimeter, Bi-Directional…

StarTech.com USB-C Power Tester, Digital Multimeter, Bi-Directional Voltage and Current Meter, Up to 240W PD EPR, Portable USB-C Cable and Port Power Meter Tester, Amperage, Voltage, Wattage, 4.5V-50V, USB Type-C, 6.5 A, 4.5V-50V, 0.05 - 6.5 A

STARTECH.COM USB-C POWER TESTER, BI-DIRECTIONAL DIGITAL VOLTAGE/CURRENT, 2 YR

Click or hover over image to enlarge

Brand:STARTECH
MPN:USBC-PWRTESTER

Part #: USBC-PWRTESTER

Testing type

Amperage, Voltage, Wattage

DC output voltage test

4.5V-50V

Output current

6.5 A

DC input voltage test

4.5V-50V

Input current

0.05 - 6.5 A

Power connectors supported

USB Type-C

Built-in display

Yes

Backlight display

Yes

Returns & Warranty

Comsys Price

$51.74

Save $5.22 off RRP

In Stock

17 units available

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $12.94 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

STARTECH.COM USB-C POWER TESTER, BI-DIRECTIONAL DIGITAL VOLTAGE/CURRENT, 2 YR

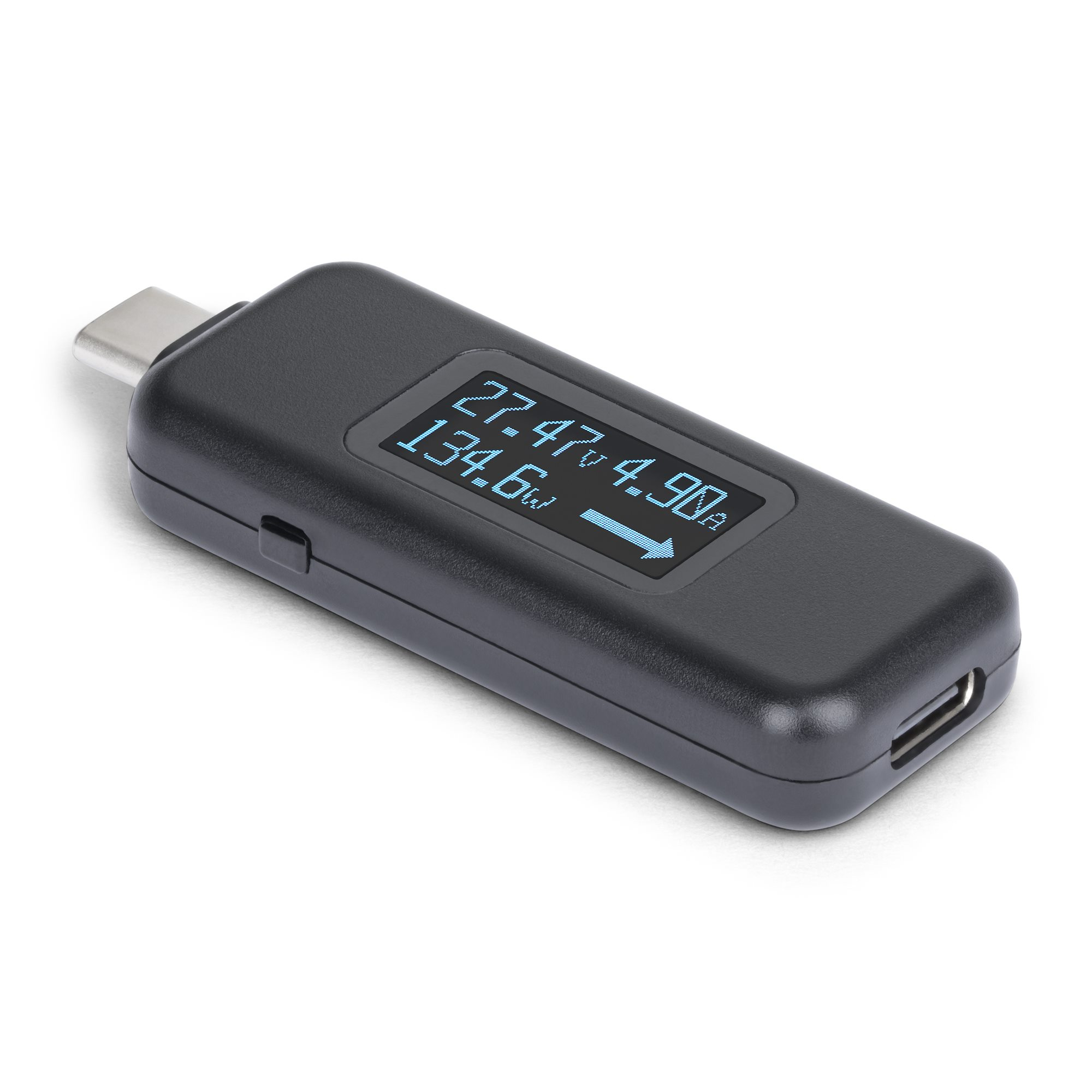

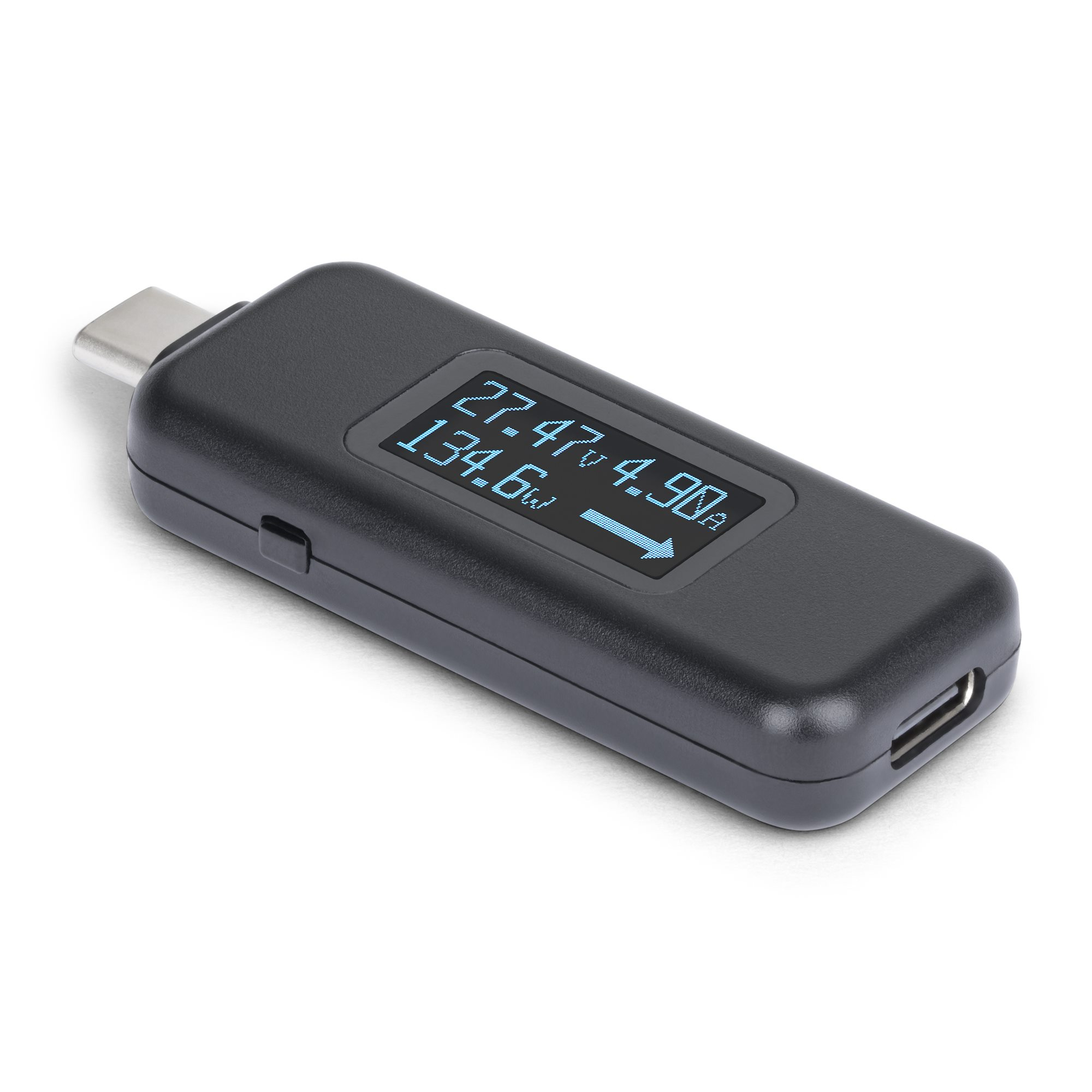

Test and verify USB-C power connections with this compact bi-directional USB-C Power Tester

This bi-directional USB-C Power Tester is a practical tool to accurately monitor voltage, current, and wattage in any USB-C power scenario. It is ideal for technicians and IT pros for immediate, clear test readings anywhere. Use this tester to monitor and maintain reliable performance in power-sensitive setups.

Compact Form Factor

The USB-C Digital Power Tester is compact and suitable for testing mounted USB-C devices or hard-to-reach device ports. Its portable design makes it a lightweight and essential additional to any IT Pro's toolkit.

Streamline Power Diagnostics

This USB-C tester can quickly diagnose power issues with docking stations, hubs, chargers, and connected devices. The digital display provides real-time measurements and rotates 180 degrees with the press of a button, ensuring clear visibility when testing power flow from any direction. Verify if USB-C cables are transferring power efficiently and ensure compliance for devices that require high power output.

Versatile USB-C Compatibility

Supporting USB data pass-through up to 10Gbps and DP Alt Mode video, this Digital USB-C Multimeter accommodates a wide range of USB-C cables and devices. It measures power across a broad operating range of 4.5V to 50V and 50mA to 6.5A, while ensuring compatibility with USB Power Delivery 3.1 Extended Power Range (EPR) up to 240W. Note: Thunderbolt 3 devices are not supported.

The StarTech.com Advantage

Key features

  • Testing type: Amperage, Voltage, Wattage
  • DC output voltage test: 4.5V-50V
  • Output current: 6.5 A
  • DC input voltage test: 4.5V-50V
  • Input current: 0.05 - 6.5 A
  • Power connectors supported: USB Type-C
  • Built-in display: Yes
  • Backlight display: Yes
  • Backlight colour: Blue
  • Host interface: USB 3.2 USB Type C
  • Output interface: USB 3.2 USB Type C
  • USB version: 3.2 Gen 2 (3.1 Gen 2)
  • Maximum charging test: 240 W
  • Product colour: Black
  • Housing material: Polycarbonate (PC)
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 85 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Width: 57 mm
  • Depth: 23 mm
  • Height: 10 mm
  • Weight: 12 g
  • Package width: 80 mm
  • Package depth: 84 mm
  • Package height: 15 mm
  • Package weight: 28 g
  • Compliance certificates: RoHS
  • Master (outer) case width: 430 mm
  • Master (outer) case length: 180 mm
  • Master (outer) case height: 270 mm

+ 1 more — see the Specifications tab.
