StarTech.com Dual M.2 PCIe SSD Adapter Card - x8 / x16 Dual NVMe or…
StarTech.com Dual M.2 PCIe SSD Adapter Card - x8 / x16 Dual NVMe or AHCI M.2 SSD to PCI Express 3.0 - M.2 NGFF PCIe (M-Key) Compatible - Supports 2242, 2260, 2280 - JBOD - Mac & PC, PCIe, M.2, PCI 3.0, Red, 3336103 h, CE, FCC, TAA, REACH
Click or hover over image to enlarge
Part #: PEX8M2E2
Internal
Yes
Product colour
Red
Mean time between failures (MTBF)
3336103 h
Hot-swap
Yes
Certification
CE, FCC, TAA, REACH
Chipset
ASMedia - ASM2824
Data transfer rate (max)
8 Gbit/s
Plug and Play
Yes
Comsys Price
Save $79.25 off RRP
Only 3 left in stock
Order soon to avoid backorder
Four payments of $98.04 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
STARTECH.COM STARTECH.COM X8 DUAL M.2 PCI EXPRESS SSD ADAPTER - PCIE 3.0, 2 YR

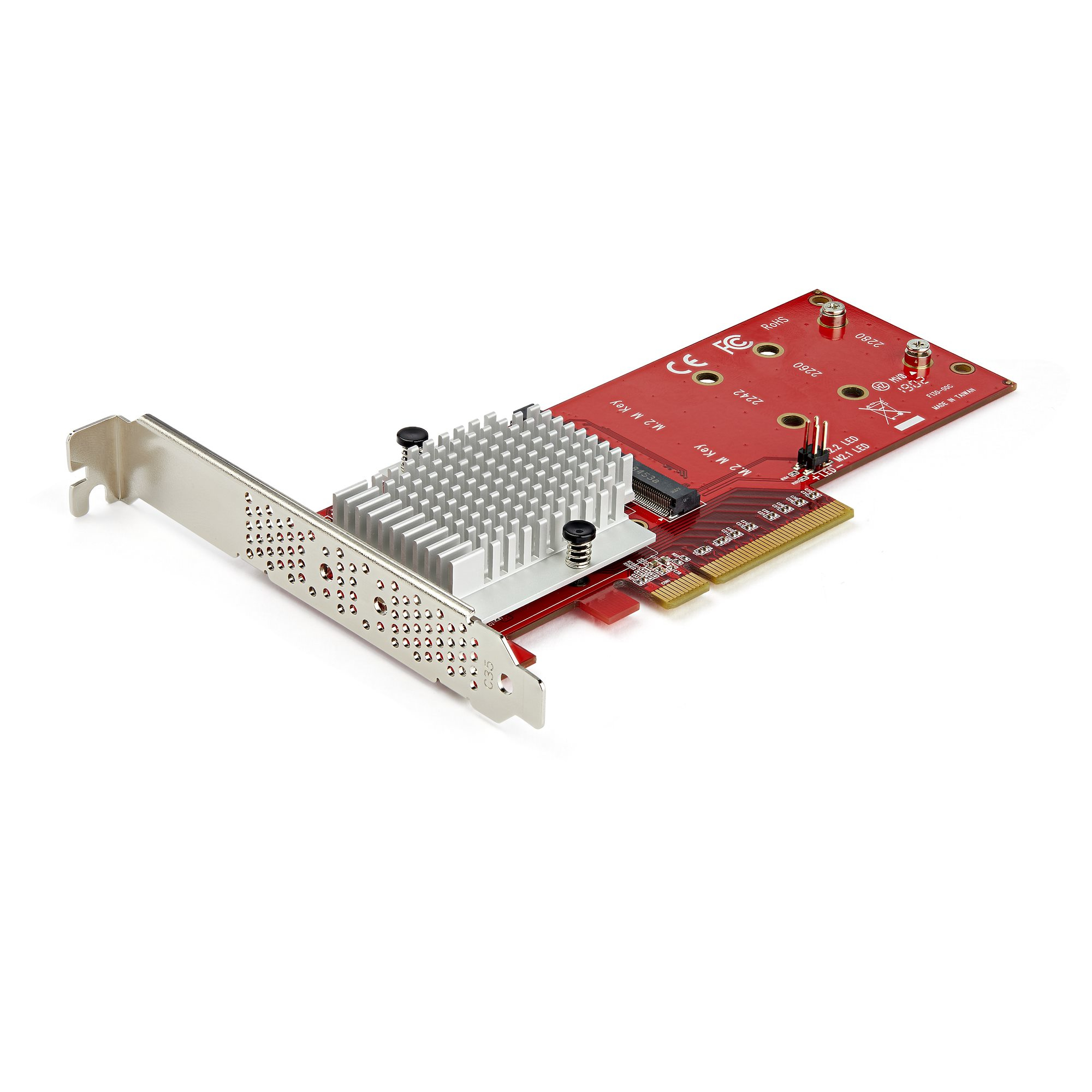

Upgrade your system speed and performance with this Dual M.2 PCIe SSD Adapter. It lets you add two high performance, enterprise-class PCIe 3.0 M.2 SSDs (NVMe and AHCI) into the PCIe 8-lane or larger slot of your desktop workstation or server.
Boost System Performance
The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. With the M.2 PCIe based drives in place, the adapter increases your storage capacity and gives your computer a significant speed boost, enhancing data transfer rates.
Access two M.2 PCIe SSDs simultaneously
The dual M.2 to PCIe expansion card employs a high-speed ASM2824 switch, allowing you to access two drives at the same time. Since the adapter card does not rely on PCIe bifurcation, it can easily be integrated into all systems, new and legacy.
The M.2 PCI express adapter also gives you the flexibility to access your M.2 PCIe SSDs individually. Or, you can utilize software RAID to build a RAID array to add redundancy or enhance system performance.
Wide System Compatibility
The adapter connects directly to your computer motherboard to support two PCIe M.2 SSDs through a x8 PCIe expansion slot. The adapter is compatible with PCIe 3.0 motherboards and is backward compatible with PCIe 2.0 and PCIe 1.0.
Supports a Wide Range of PCIe M.2 SSDs
The PCIe M.2 NGFF (M Key) adapter supports PCIe 3.0 NVMe and PCIe-AHCI M.2 SSDs including 2242, 2260, and 2280 drives, supporting the most common drive sizes: 42, 60, and 80 mm lengths.
Easy to Install
The expansion card comes with a full-profile bracket pre-installed, and includes a half-height / low-profile bracket, for installation in small form-factor computers.
Vented Brackets
Vented brackets on the PCIe M.2 NGFF SSD adapter card increases air flow to assist in heat dissipation.
The TAA compliant PEX8M2E2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
- Host interface: PCIe
- Output interface: M.2
- Expansion card standard: PCI 3.0
- Number of M.2 (M) slots: 2
- SATA connector insertion cycles: 60
- Internal: Yes
- Product colour: Red
- Mean time between failures (MTBF): 3336103 h
- Hot-swap: Yes
- Certification: CE, FCC, TAA, REACH
- Chipset: ASMedia - ASM2824
- Data transfer rate (max): 8 Gbit/s
- Plug and Play: Yes
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -25 - 70 °C
- Operating relative humidity (H-H): 15 - 90%
- Supported storage drive heights: 22 mm
- Compliance certificates: RoHS
- Width: 16 mm
- Depth: 159 mm
- Height: 69 mm
- Weight: 88 g
- Quantity: 1
- Mounting brackets included: Yes
- Screws included: Yes
- User guide: Yes
- Package width: 157 mm
- Package depth: 217 mm
- Package height: 40 mm
- Package weight: 157 g
+ 5 more — see the Specifications tab.
