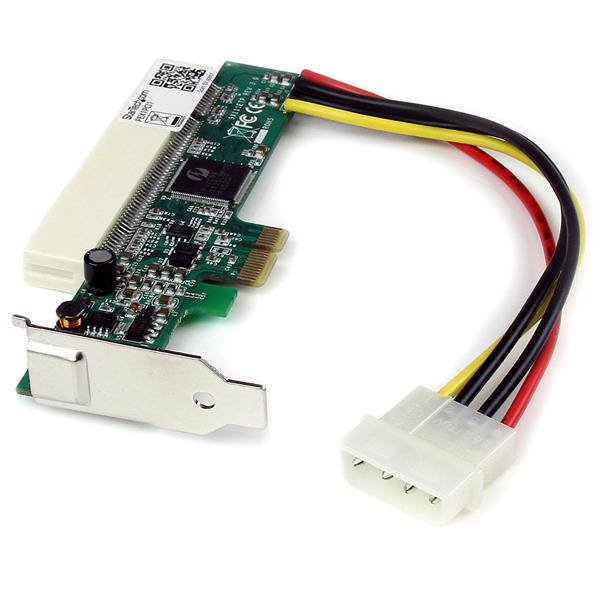

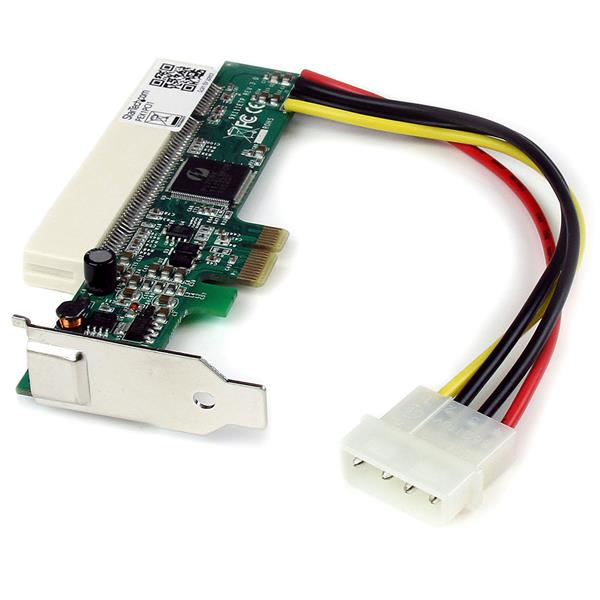

StarTech.com PCI Express to PCI Adapter Card
StarTech.com PCI Express to PCI Adapter Card, PCIe, PCI 32-bit, Red, CE, FC, ROHS, PERICOM PI7C9X110BNBE, 0 - 85 °C
Click or hover over image to enlarge
Brand:StarTech.com
MPN:1601014
Part #: 1601014
Product colour
Red
Certification
CE, FC, ROHS
Chipset
PERICOM PI7C9X110BNBE
Harmonized System (HS) code
84733020
Ports quantity
1
I/O ports
1x PCI 32-bit
Platform
PC
Connectivity technology
Wired
Comsys Price
$101.19
Save $16.55 off RRP
In Stock
7 units available
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Four payments of $25.30 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
StarTech.com PCI Express to PCI Adapter Card
Install half-height/low profile PCI interface cards in a standard PCI Express expansion slot
This PCIe to PCI Adapter Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Compliant with PCI Express Specification 1.0a and PCI Specification 2.2, the adapter card connects through a PCIe 1x slot to provide a low profile PCI slot in its place. A spare full size bracket for PCI Express card is also included for use in larger desktop or server PCI Express slots.
A versatile solution, the adapter card converts PCIe to PCI or PCI-X; a built-on LP4 power connector links the card to the computer power supply, allowing you to install universal voltage PCI cards (3.3V/5V).
The adapter card offers an economical solution that lets you extend the usability of older or extra PCI Bus cards in newer PCIe capable systems.
To ensure suitable installation, the PCIe/PCI adapter features an innovative bracket design that adapts and secures the low profile PCI or PCI-X card into the converted slot.
The StarTech.com Advantage
This PCIe to PCI Adapter Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Compliant with PCI Express Specification 1.0a and PCI Specification 2.2, the adapter card connects through a PCIe 1x slot to provide a low profile PCI slot in its place. A spare full size bracket for PCI Express card is also included for use in larger desktop or server PCI Express slots.
A versatile solution, the adapter card converts PCIe to PCI or PCI-X; a built-on LP4 power connector links the card to the computer power supply, allowing you to install universal voltage PCI cards (3.3V/5V).
The adapter card offers an economical solution that lets you extend the usability of older or extra PCI Bus cards in newer PCIe capable systems.
To ensure suitable installation, the PCIe/PCI adapter features an innovative bracket design that adapts and secures the low profile PCI or PCI-X card into the converted slot.
The StarTech.com Advantage
Key features
- Host interface: PCIe
- Output interface: PCI 32-bit
- Product colour: Red
- Certification: CE, FC, ROHS
- Chipset: PERICOM PI7C9X110BNBE
- Operating temperature (T-T): 0 - 85 °C
- Width: 70 mm
- Depth: 135 mm
- Height: 20 mm
- Weight: 52 g
- Package width: 175 mm
- Package depth: 144 mm
- Package height: 32 mm
- Package weight: 121 g
- Harmonized System (HS) code: 84733020
- Ports quantity: 1
- I/O ports: 1x PCI 32-bit
- Platform: PC
- Connectivity technology: Wired
- Form factor: LP/ST
- Mac compatibility: No
- Compatible operating systems: Windows 2000/XP/Vista
- Power requirements: 3.3V
Inc GST
$101.19
