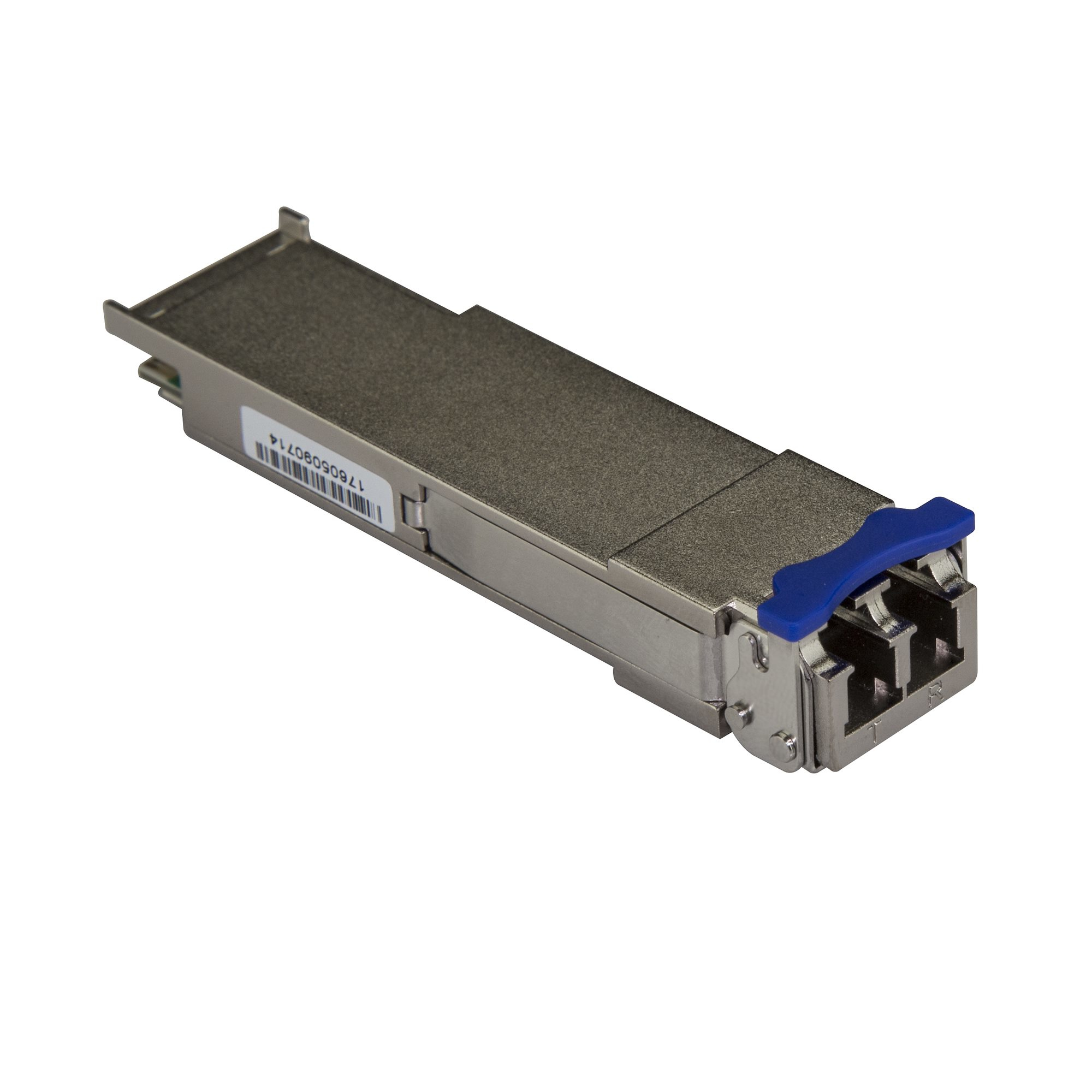

StarTech.com MSA Compliant QSFP+ Transceiver Module -…
StarTech.com MSA Compliant QSFP+ Transceiver Module - 40GBASE-LR4~MSA Uncoded QSFP+ Module - 40GBASE-LR4 - 40GbE Single Mode Fiber (SMF) Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - LC 10km - 1270nm to 1330nm - DDM, Fiber optic, 40000 Mbit/s, QSFP+, LC, LR4, 10000 m
Click or hover over image to enlarge
Part #: QSFP40LR4ST
Power consumption (typical)
2.5 W
Product colour
Silver
Housing material
Aluminium
Hot-Plug support
Yes
Mean time between failures (MTBF)
1489426 h
SFP transceiver type
Fiber optic
Maximum data transfer rate
40000 Mbit/s
Interface type
QSFP+
Comsys Price
Save $3,465.00 off RRP
Out of Stock
Contact us for ETA or alternatives
Four payments of $89.99 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

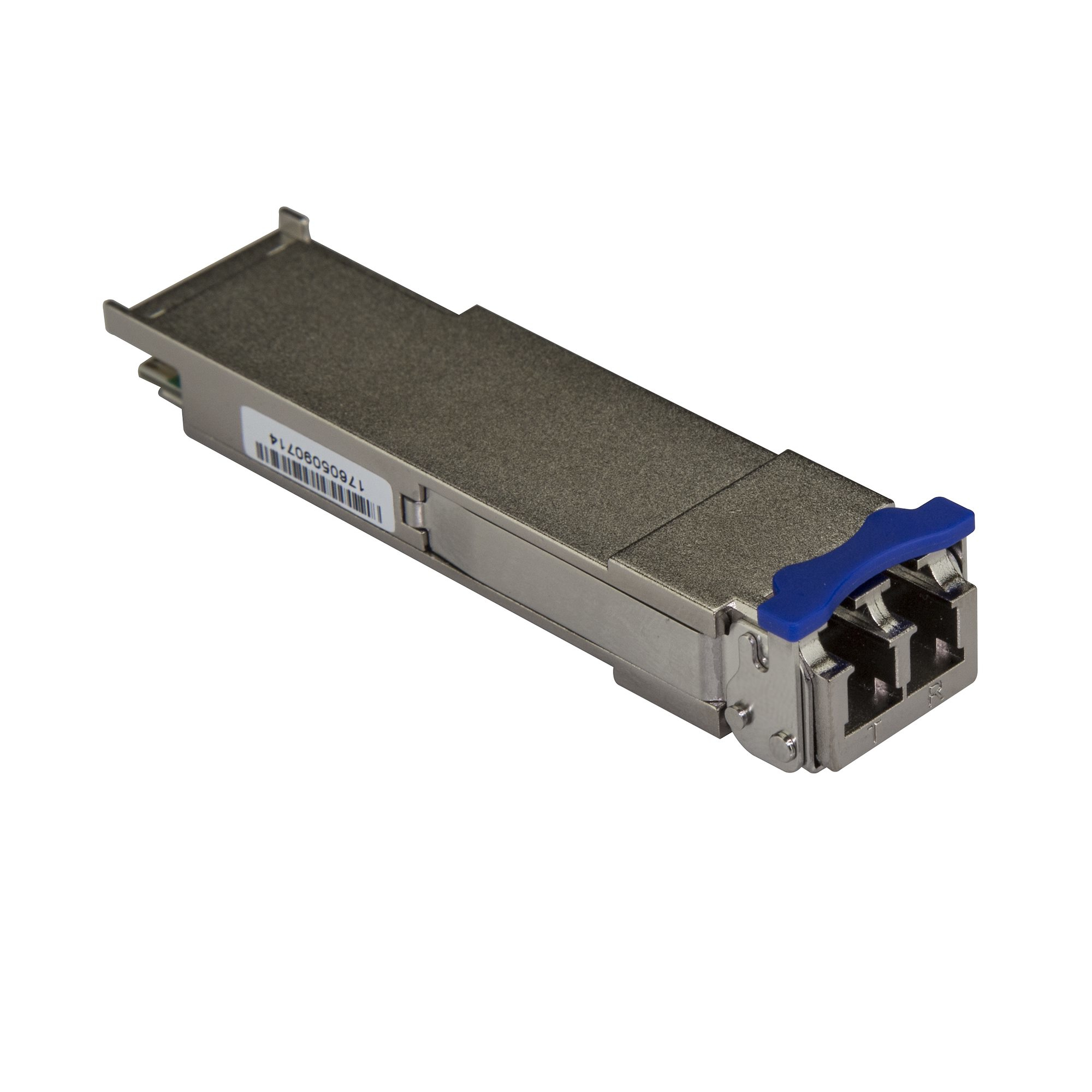

STARTECH.COM MSA COMPLIANT 40GBASE-LR4 QSFP+ - 40G QSFP+ - SM LC - 10KM, LTW
The QSFP40LR4ST is an MSA compliant fiber QSFP+ transceiver that's designed, programmed and tested to work with 40GBASE-LR4 compatible MSA switches and routers. The QSFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 40 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1270nm to 1330nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 1,489,426 hours
• Power Consumption: Less than 2.5 Watts
• DDM: Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 40000 Mbit/s
- Interface type: QSFP+
- Single-mode fiber (SMF) supported: Yes
- Multi-mode fiber (MMF) supported: No
- Fiber optic connector: LC
- SFP transceiver standard: LR4
- Maximum transfer distance: 10000 m
- Tx wavelength (min): 1270 nm
- Tx wavelength (max): 1330 nm
- Networking standards: IEEE 802.3ba
- Duplex system: Full
- Digital Diagnostics Monitoring (DDM): Yes
- Product colour: Silver
- Housing material: Aluminium
- Hot-Plug support: Yes
- Mean time between failures (MTBF): 1489426 h
- Power consumption (typical): 2.5 W
- Compliance certificates: RoHS
- Certification: CE, FCC, UR, REACH
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Width: 18.4 mm
- Depth: 72 mm
- Height: 13 mm
- Weight: 40 g
- Quantity per pack: 1 pc(s)
- Package width: 92 mm
- Package depth: 117 mm
+ 7 more — see the Specifications tab.
