StarTech.com 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane…

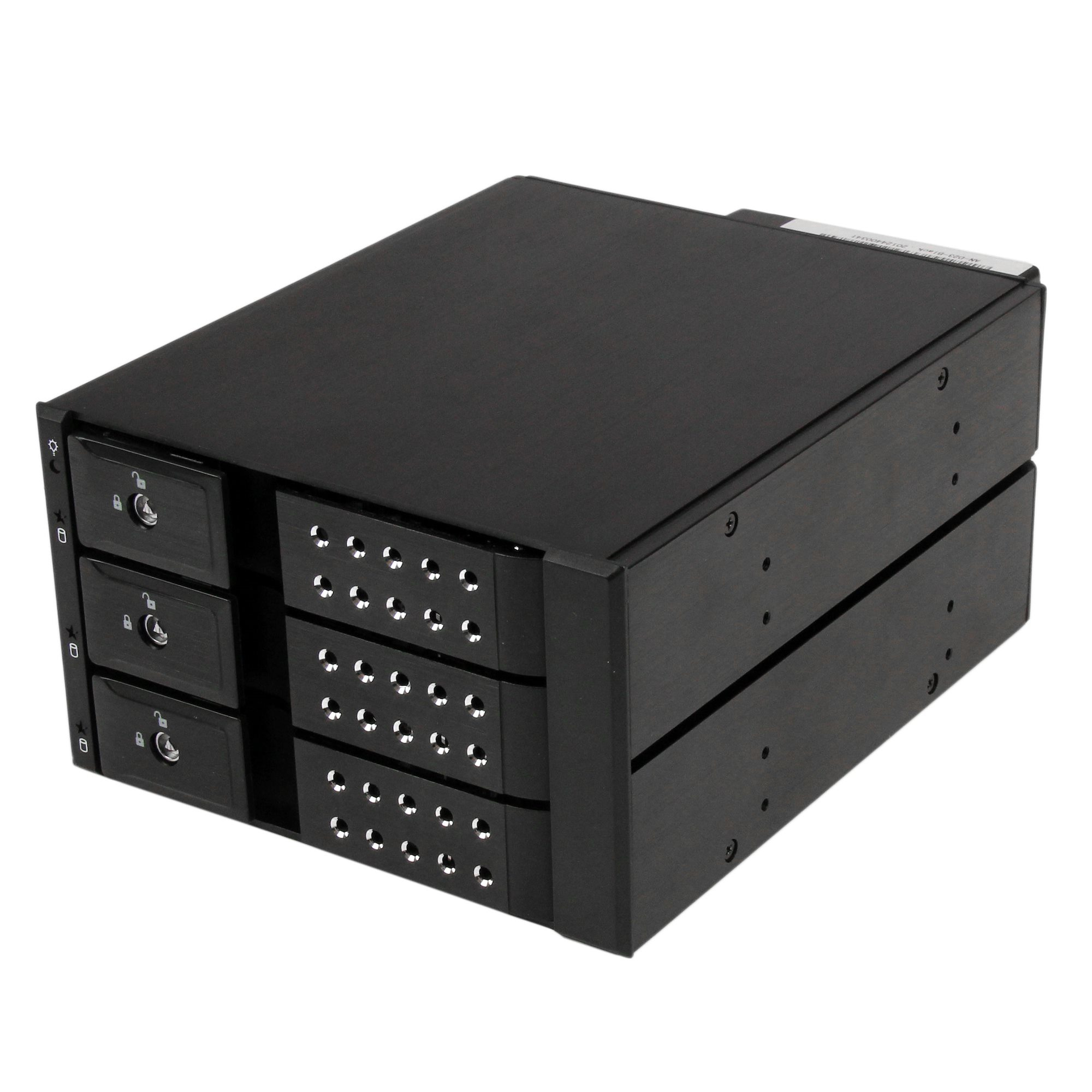

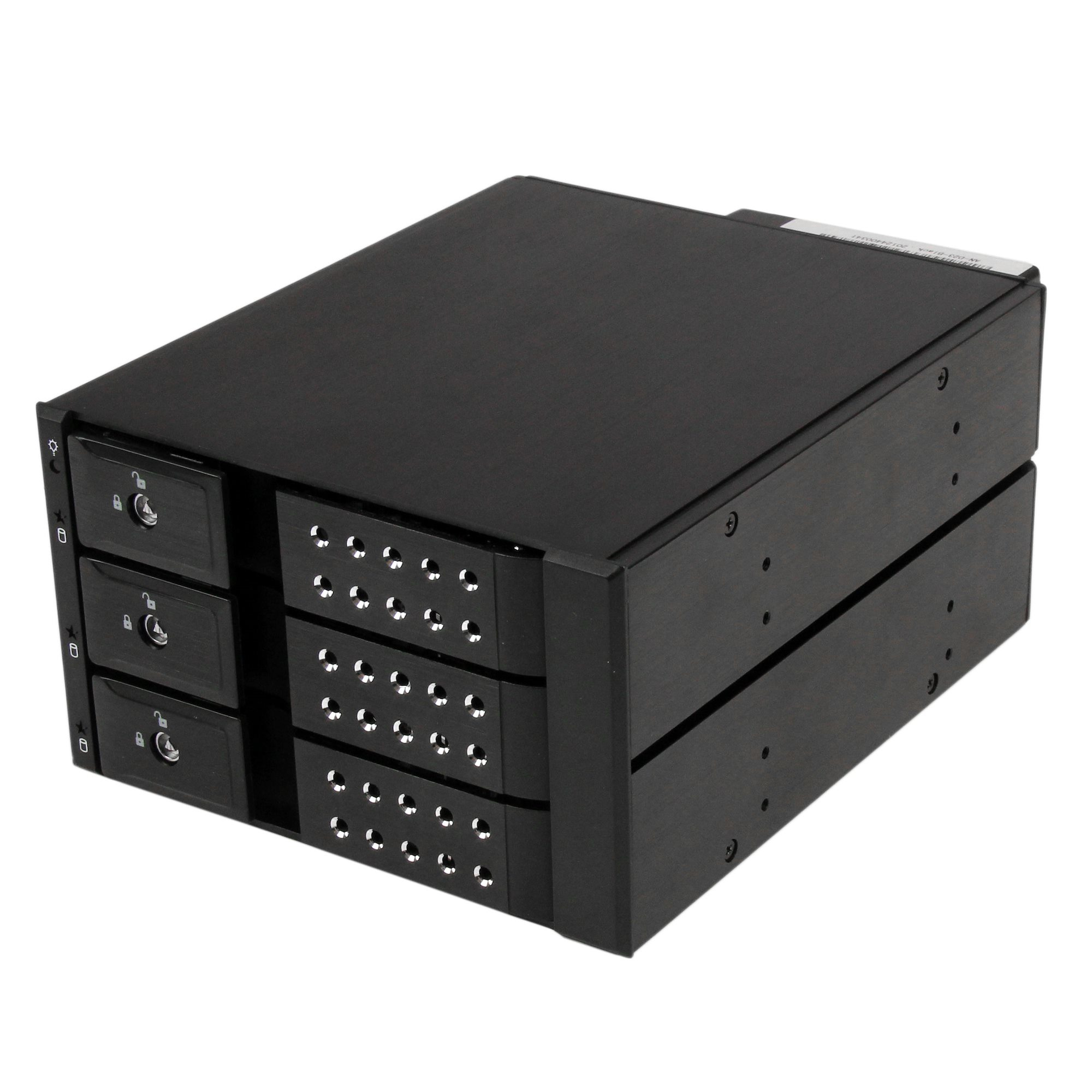

StarTech.com 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD, 0 TB, Serial ATA, Serial ATA II, Serial ATA III, 3.5", 1.2 kg, Black
Click or hover over image to enlarge
Part #: 2560922
Internal
No
Product colour
Black
LED indicators
Activity, Power
Number of fans
1 fan(s)
Storage drives installed
No
Installed storage drive type
No
Total installed storage capacity
0 TB
Supported storage drive types
HDD
Comsys Price
Save $33.07 off RRP
In Stock
9 units available
Four payments of $50.31 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
StarTech.com Mob Rack Backplane 3.5in SAS II/SATA III
The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.
The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
- Storage drives installed: No
- Installed storage drive type: No
- Total installed storage capacity: 0 TB
- Supported storage drive types: HDD
- Number of storage drives supported: 3
- Maximum supported storage capacity: 12 TB
- Storage drive interface: Serial ATA, Serial ATA II, Serial ATA III
- Storage drive size: 3.5"
- Data transfer rate: 6 Gbit/s
- Hot-swap drive bays: Yes
- Host ports: 3
- SATA host port: Yes
- Number of SATA power connectors: 2
- SATA power connector type: SATA 15-pin
- Internal: No
- Product colour: Black
- LED indicators: Activity, Power
- Number of fans: 1 fan(s)
- Backplanes support: Yes
- Width: 145 mm
- Depth: 194.1 mm
- Height: 110 mm
- Weight: 1.2 kg
- Package width: 179 mm
- Package depth: 253 mm
- Package height: 123 mm
- Package weight: 1.2 kg
- Cables included: SATA
- Operating temperature (T-T): 0 - 55 °C
- Operating relative humidity (H-H): 5 - 85%
+ 7 more — see the Specifications tab.
