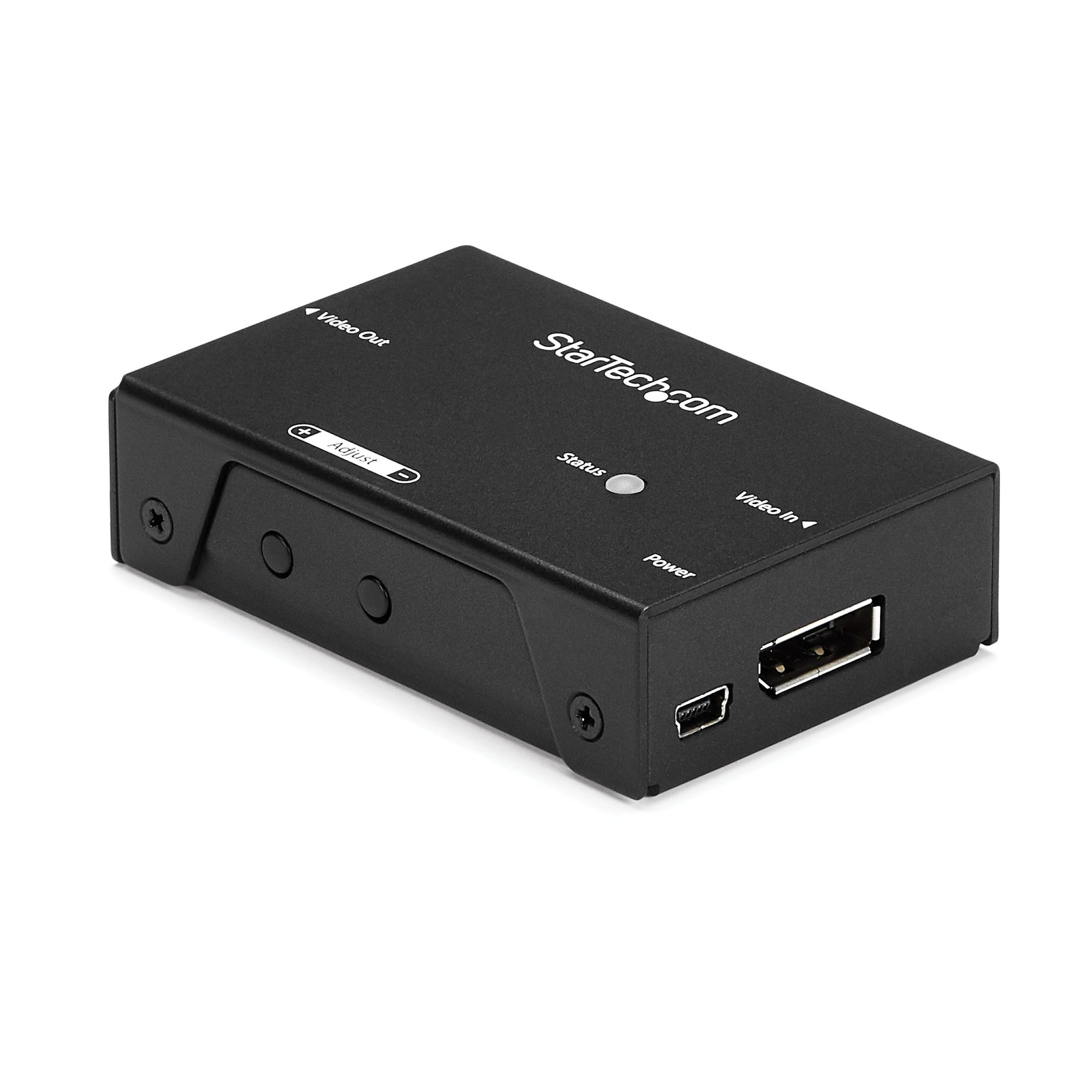

StarTech.com DisplayPort Signal Booster - DP Extender - 4K 60Hz
StarTech.com DisplayPort Signal Booster - DP Extender - 4K 60Hz, 3840 x 2160 pixels, AV repeater, 20 m, Black
Click or hover over image to enlarge
Brand:STARTECH
MPN:DPBOOST
Part #: DPBOOST
AC input voltage
100-240 V
Operating voltage
5 V
Input current
0.3 A
Output current
1 A
Power consumption (typical)
5 W
External power adapter
Yes
Type
AV repeater
Maximum resolution
3840 x 2160 pixels
Comsys Price
$241.49
Save $40.10 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Four payments of $60.37 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

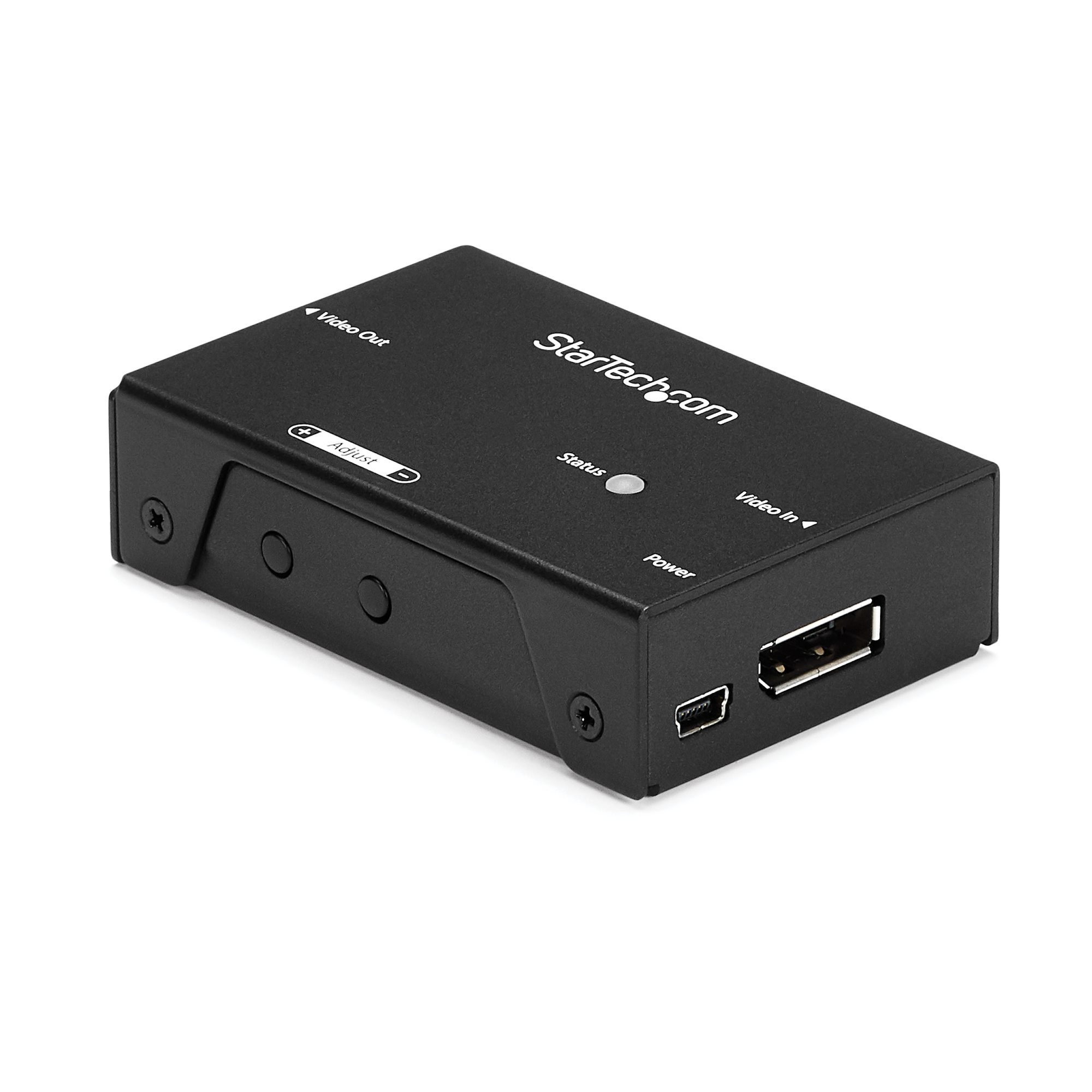

STARTECH.COM DISPLAYPORT SIGNAL AMPLIFIER - DP BOOSTER - 65 FT. - 4K 60HZ, 2 YR
Amplify the strength of your DisplayPort signal to extend your video source up to 65 ft. over standard DP cabling
This DisplayPort signal booster lets you increase the signal strength of your DP video source using standard DisplayPort cables. You can achieve resolutions up to 4K at 60Hz, and depending on your desired resolution, the booster supports varying distances up to 65 ft. (20 m) away at 1080p 60Hz resolution. For inline installations, you can place the booster between two DisplayPort cables, up to 50 ft. in length at the video input, and up to 15 ft. in length at the video output.
Maintains Ultra HD 4K video signals
When extending DisplayPort over long distances using standard video cabling, higher resolutions can become unavailable. Using the DP signal booster ensures that you can depend on UHD resolutions up to 4K at 60Hz at up to 22 ft. (7 m). You can achieve even greater distances with lower resolution support -- up to 4K at 30Hz, at up to 42 ft. (13 m), and 1080p at 60Hz at up to 65 ft. (20 m).
Easy and discreet installation
With its small form factor, the DisplayPort booster is easy to hide, for a discreet installation. By extending your video signal using standard DP cables, the DisplayPort booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.
Compatible with varying distances
The booster makes it easy to adjust your DisplayPort signal strength based on the distance of your cables, with equalization adjustment buttons. This means that you can adjust the amplification of your DisplayPort signal, to ensure your DisplayPort signal will be flawless even at distances up to 65 ft. (20 m). Support for varying distances makes the booster perfect for multi-device deployment across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in different rooms.
The DPBOOST is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.
The StarTech.com Advantage
This DisplayPort signal booster lets you increase the signal strength of your DP video source using standard DisplayPort cables. You can achieve resolutions up to 4K at 60Hz, and depending on your desired resolution, the booster supports varying distances up to 65 ft. (20 m) away at 1080p 60Hz resolution. For inline installations, you can place the booster between two DisplayPort cables, up to 50 ft. in length at the video input, and up to 15 ft. in length at the video output.
Maintains Ultra HD 4K video signals
When extending DisplayPort over long distances using standard video cabling, higher resolutions can become unavailable. Using the DP signal booster ensures that you can depend on UHD resolutions up to 4K at 60Hz at up to 22 ft. (7 m). You can achieve even greater distances with lower resolution support -- up to 4K at 30Hz, at up to 42 ft. (13 m), and 1080p at 60Hz at up to 65 ft. (20 m).
Easy and discreet installation
With its small form factor, the DisplayPort booster is easy to hide, for a discreet installation. By extending your video signal using standard DP cables, the DisplayPort booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.
Compatible with varying distances
The booster makes it easy to adjust your DisplayPort signal strength based on the distance of your cables, with equalization adjustment buttons. This means that you can adjust the amplification of your DisplayPort signal, to ensure your DisplayPort signal will be flawless even at distances up to 65 ft. (20 m). Support for varying distances makes the booster perfect for multi-device deployment across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in different rooms.
The DPBOOST is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.
The StarTech.com Advantage
Key features
- Type: AV repeater
- Maximum resolution: 3840 x 2160 pixels
- Maximum transfer distance: 20 m
- Audio system: Multichannel
- Audio output channels: 7.1 channels
- Supported video modes: 720p, 1080p, 2160p
- Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
- Rack mounting: Yes
- Product colour: Black
- Certification: CE, FCC
- Video in: DisplayPort
- Video out: DisplayPort
- AC input voltage: 100-240 V
- Operating voltage: 5 V
- Input current: 0.3 A
- Output current: 1 A
- Power consumption (typical): 5 W
- External power adapter: Yes
- Dimensions (WxDxH): 50 x 80 x 21 mm
- Width: 50 mm
- Depth: 80 mm
- Height: 21 mm
- Weight: 152 g
- Package dimensions (WxDxH): 143 x 168 x 63 mm
- Package width: 142 mm
- Package depth: 168 mm
- Package height: 70 mm
- Package weight: 398 g
- AC adapter included: Yes
- Cables included: USB
+ 6 more — see the Specifications tab.
